MPW18-3-D016, Manual Motor Protector, 18A, 1-1.6A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20

MPW18-3-D016, Manual Motor Protector, 18A, 1-1.6A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20

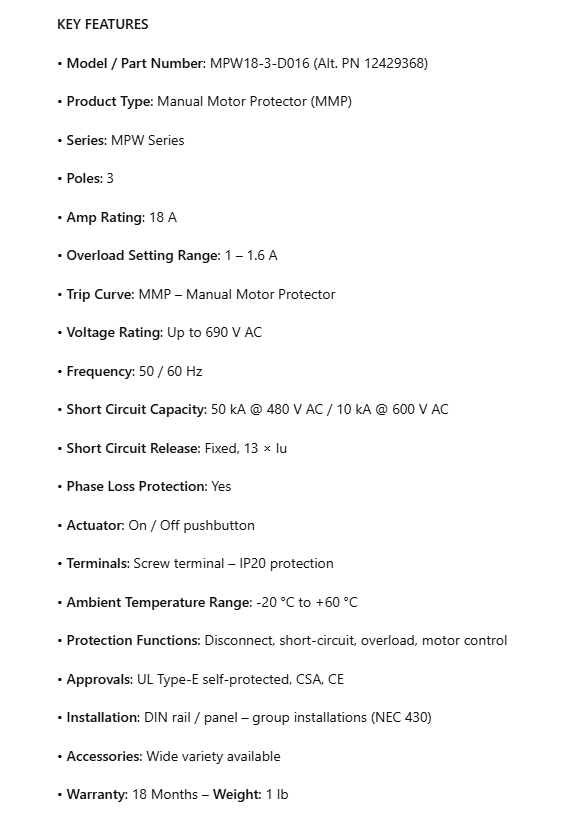

KEY FEATURES

• Model / Part Number: MPW18-3-D016 (Alt. PN 12429368)

• Product Type: Manual Motor Protector (MMP)

• Series: MPW Series

• Poles: 3

• Amp Rating: 18 A

• Overload Setting Range: 1 – 1.6 A

• Trip Curve: MMP – Manual Motor Protector

• Voltage Rating: Up to 690 V AC

• Frequency: 50 / 60 Hz

• Short Circuit Capacity: 50 kA @ 480 V AC / 10 kA @ 600 V AC

• Short Circuit Release: Fixed, 13 × lu

• Phase Loss Protection: Yes

• Actuator: On / Off pushbutton

• Terminals: Screw terminal – IP20 protection

• Ambient Temperature Range: -20 °C to +60 °C

• Protection Functions: Disconnect, short-circuit, overload, motor control

• Approvals: UL Type-E self-protected, CSA, CE

• Installation: DIN rail / panel – group installations (NEC 430)

• Accessories: Wide variety available

• Warranty: 18 Months – Weight: 1 lb

IP66 Enclosure option available ( PE66GN )

The WEG MPW Series Manual Motor Protectors provide a very compact solution for operation and protection in motor control applications. The NEC requires four functions to be considered a combination motor starter: Motor Disconnect, Branch Circuit Protection, Motor Controller and Motor Overload Protection. The WEG MPW meets all of these requirements, and the requirements of UL for Self-Protected Motor Controllers to be used in Type-E & F applications. With worldwide approvals the WEG MPW can be used in a variety of applications all over the world.
