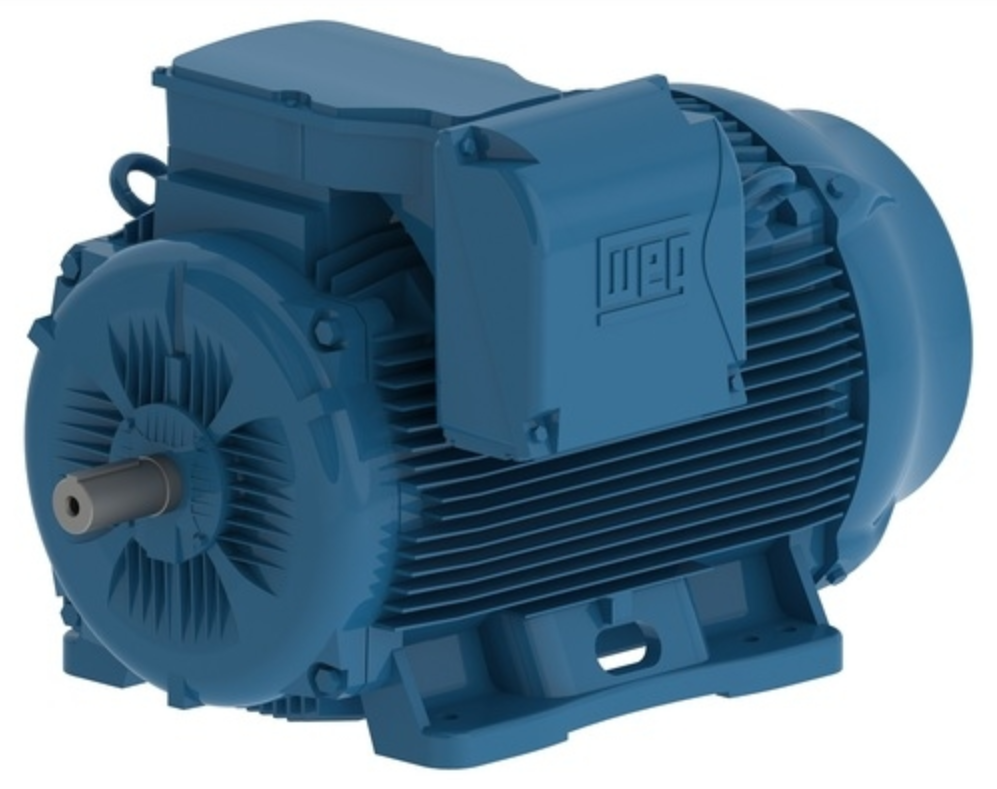

ME150506W23315R01S, W22 Metric Motor, 150Hp , 1200 RPM, 575V, TEFC, Frame 315S/M , IP55, RB, IE3

ME150506W23315R01S, W22 Metric Motor, 150Hp , 1200 RPM, 575V, TEFC, Frame 315S/M , IP55, RB, IE3

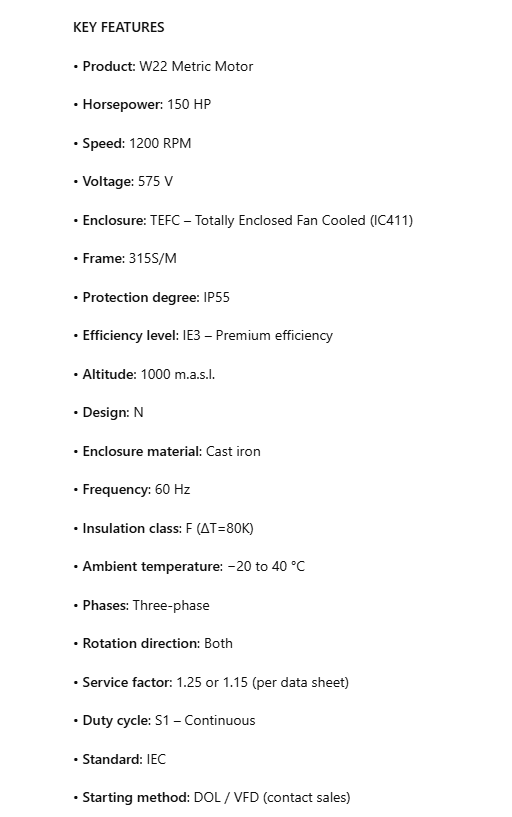

KEY FEATURES

• Product: W22 Metric Motor

• Horsepower: 150 HP

• Speed: 1200 RPM

• Voltage: 575 V

• Enclosure: TEFC – Totally Enclosed Fan Cooled (IC411)

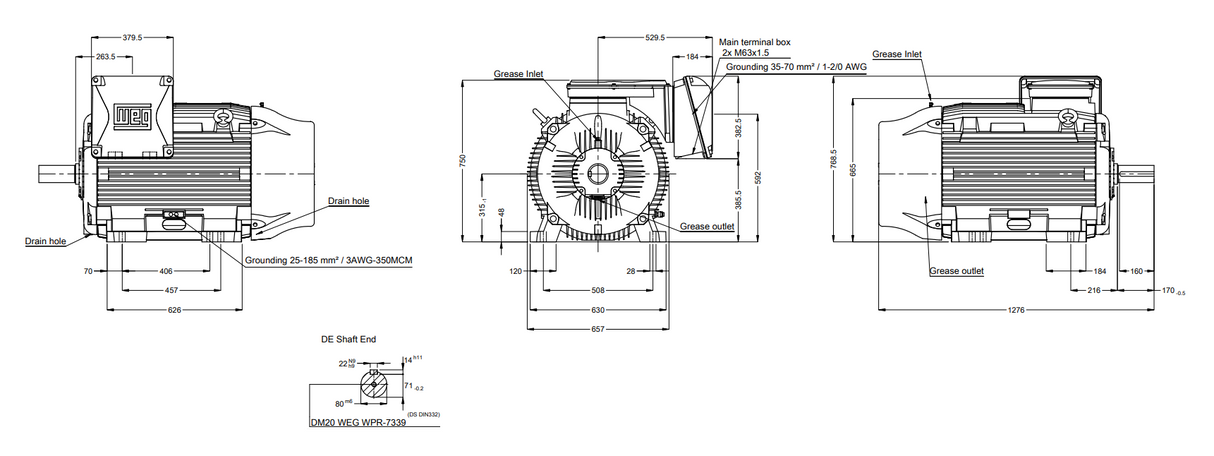

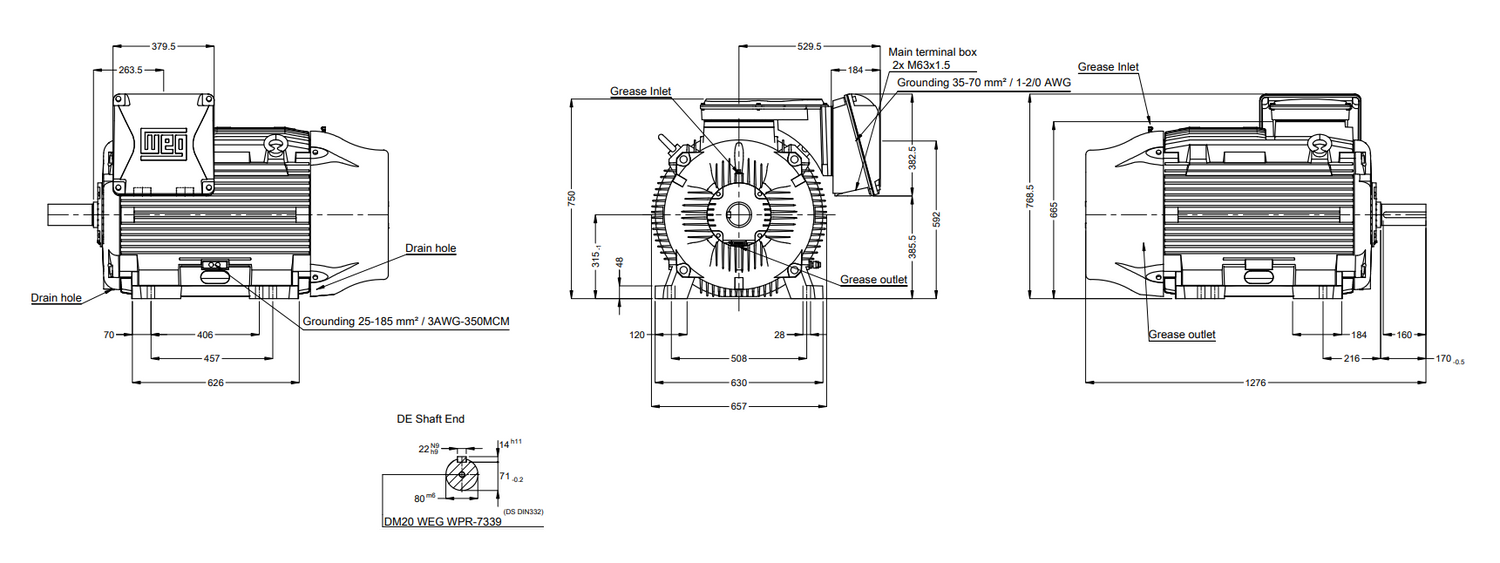

• Frame: 315S/M

• Protection degree: IP55

• Efficiency level: IE3 – Premium efficiency

• Altitude: 1000 m.a.s.l.

• Design: N

• Enclosure material: Cast iron

• Frequency: 60 Hz

• Insulation class: F (ΔT=80K)

• Ambient temperature: −20 to 40 °C

• Phases: Three-phase

• Rotation direction: Both

• Service factor: 1.25 or 1.15 (per data sheet)

• Duty cycle: S1 – Continuous

• Standard: IEC

• Starting method: DOL / VFD (contact sales)

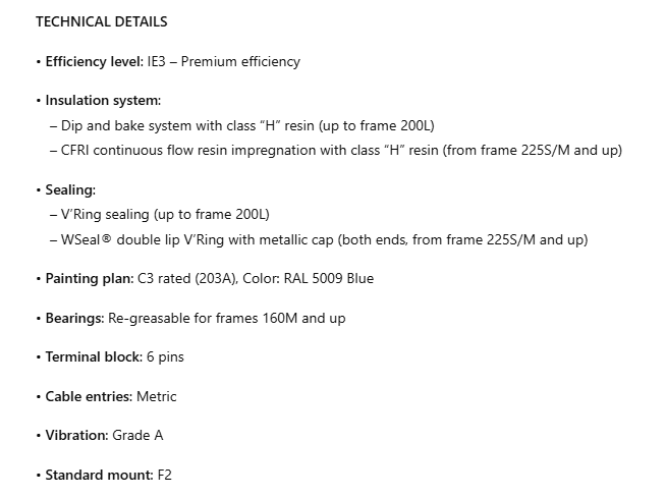

TECHNICAL DETAILS

• Efficiency level: IE3 – Premium efficiency

• Insulation system:
 – Dip and bake system with class “H” resin (up to frame 200L)
 – CFRI continuous flow resin impregnation with class “H” resin (from frame 225S/M and up)

• Sealing:
 – V’Ring sealing (up to frame 200L)
 – WSeal® double lip V’Ring with metallic cap (both ends, from frame 225S/M and up)

• Painting plan: C3 rated (203A), Color: RAL 5009 Blue

• Bearings: Re-greasable for frames 160M and up

• Terminal block: 6 pins

• Cable entries: Metric

• Vibration: Grade A

• Standard mount: F2
