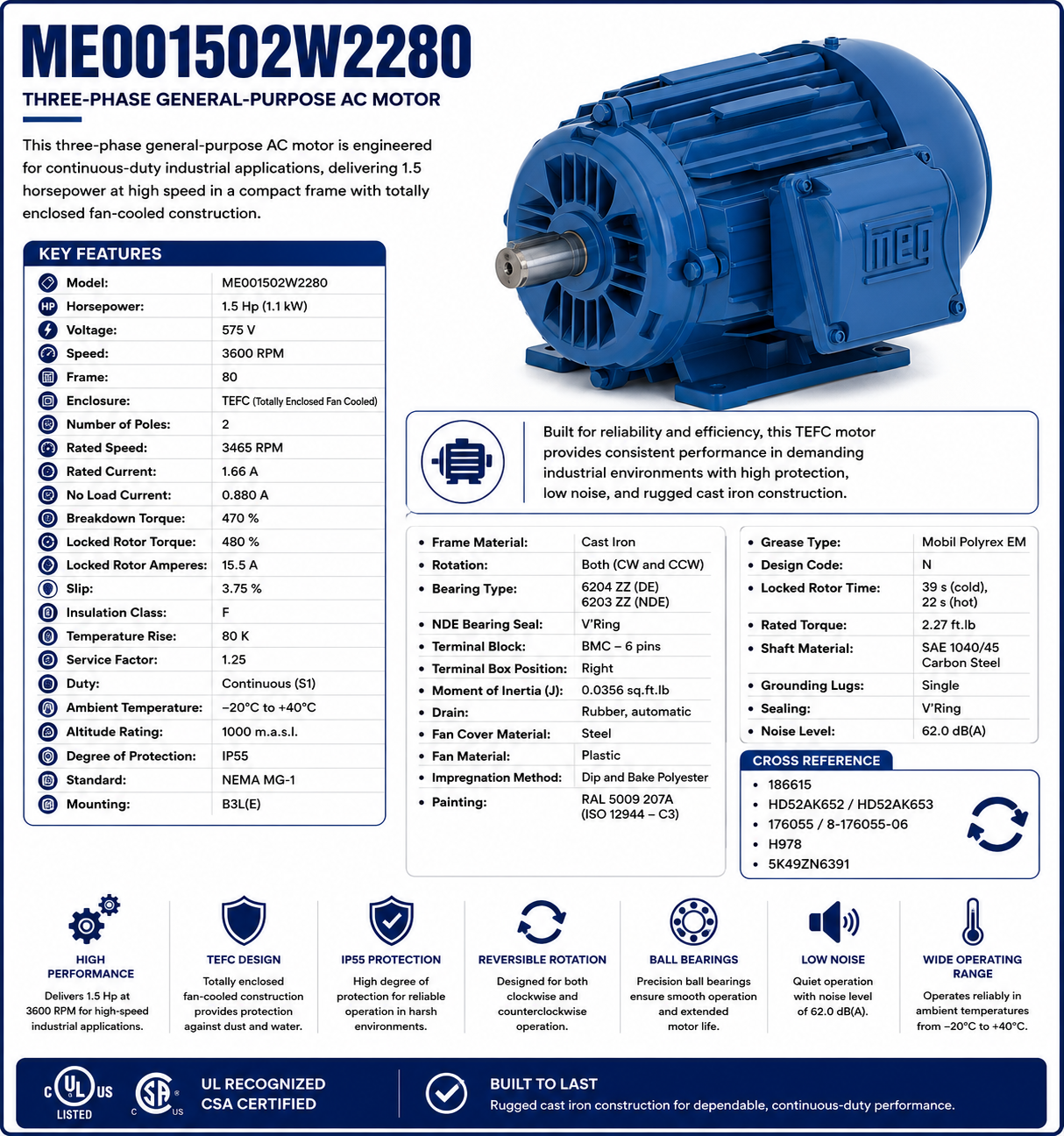

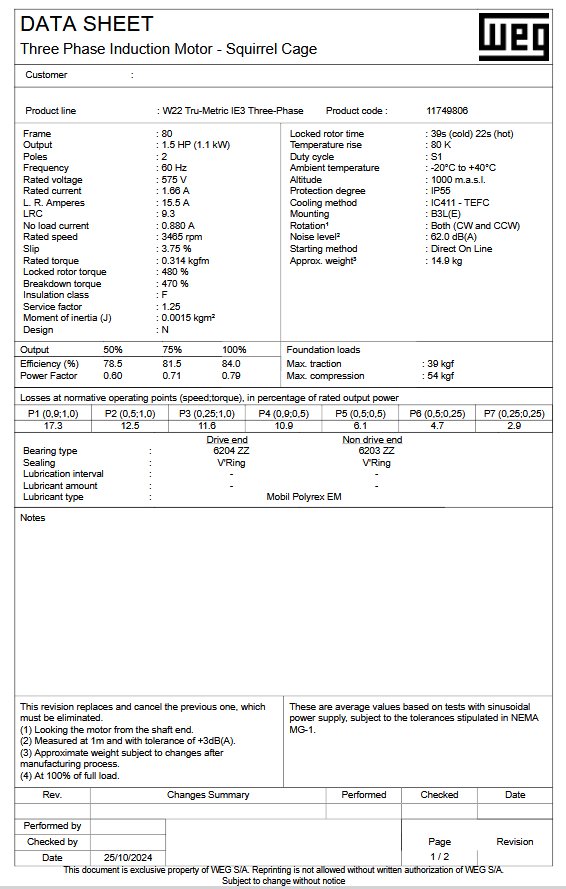

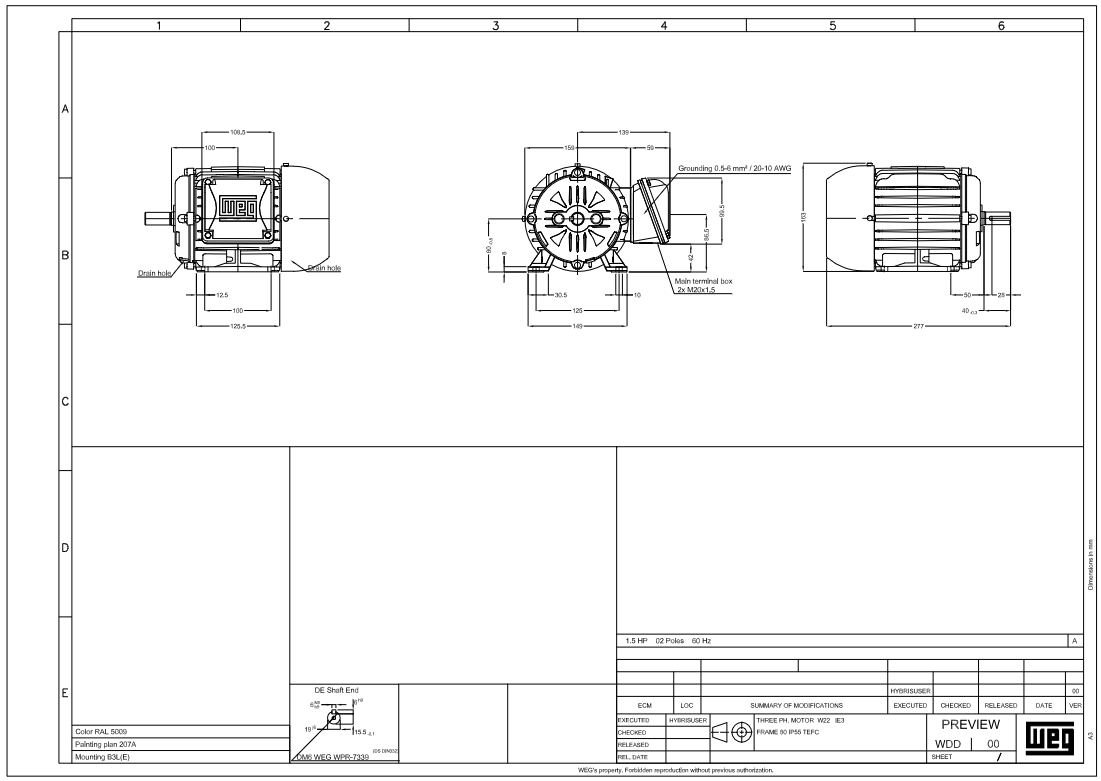

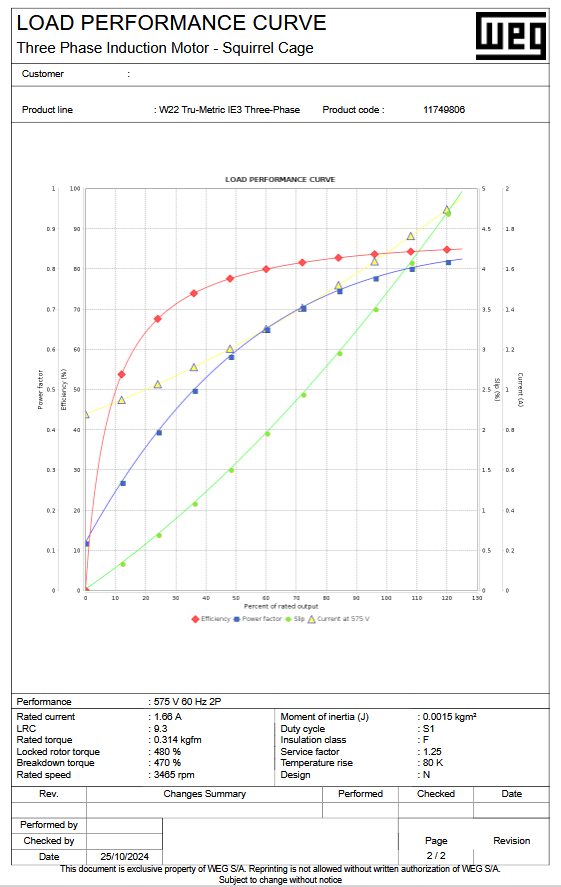

ME001502W2280, 1.5Hp, 3600RPM, 575V, 3Ph, 60Hz, TEFC (IC411), Frame 80

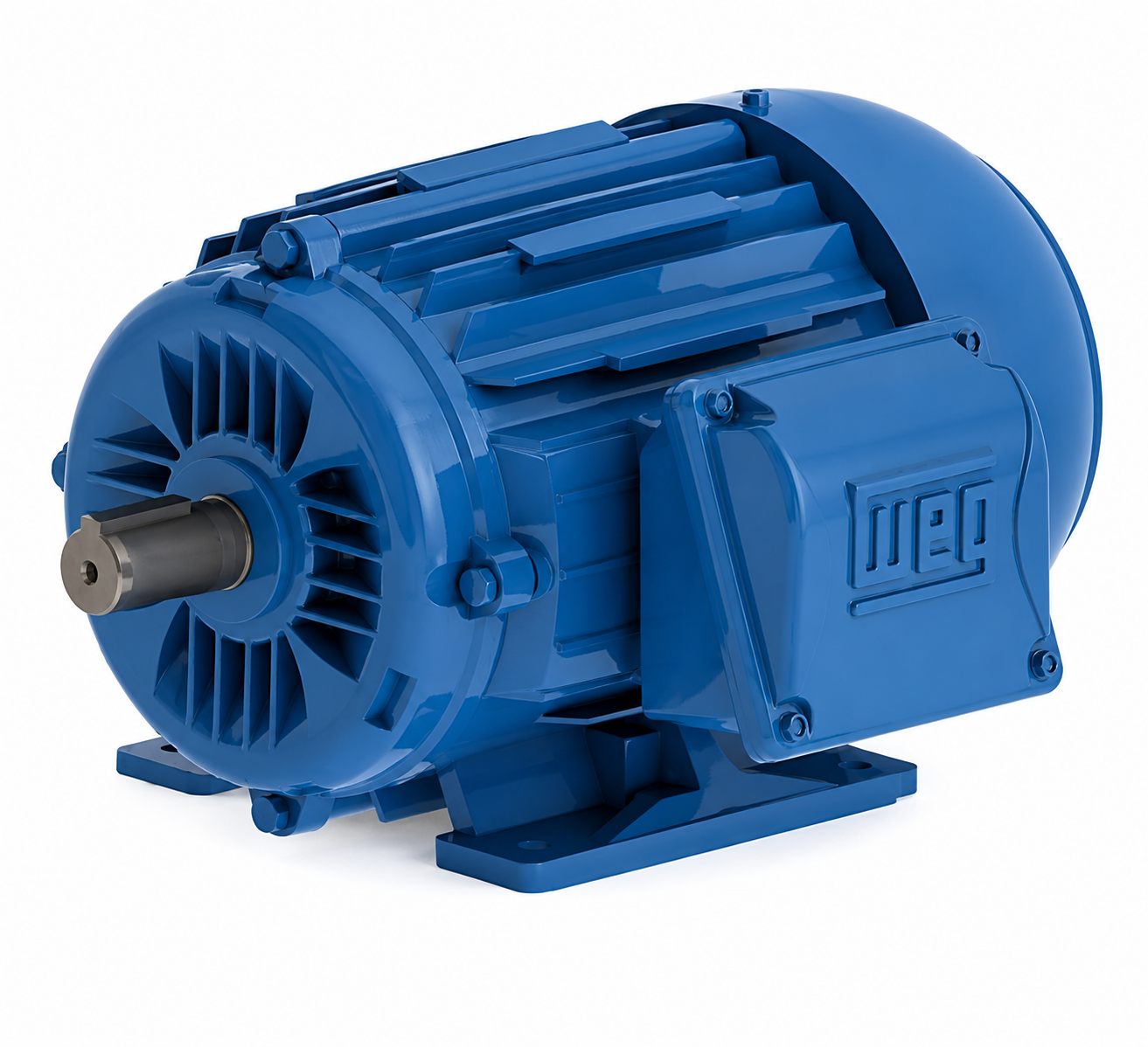

This three-phase general-purpose AC motor is engineered for continuous-duty industrial applications, delivering 1.5 horsepower at high speed in a compact frame with totally enclosed fan-cooled construction.

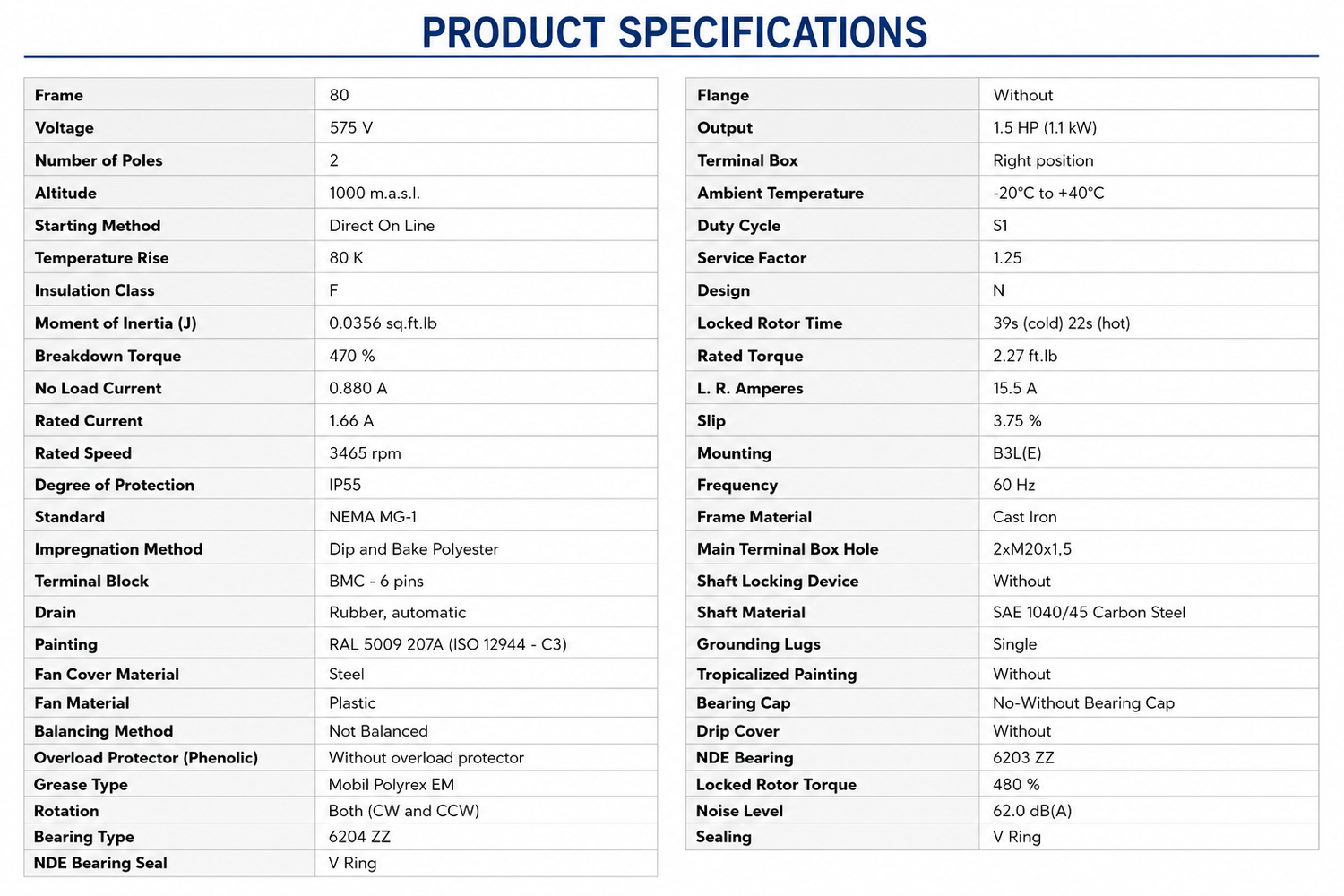

KEY FEATURES

• Model: ME001502W2280

• Horsepower: 1.5 Hp (1.1 kW)

• Voltage: 575 V

• Speed: 3600 RPM

• Frame: 80

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Number of Poles: 2

• Rated Speed: 3465 RPM

• Rated Current: 1.66 A

• No Load Current: 0.880 A

• Breakdown Torque: 470 %

• Locked Rotor Torque: 480 %

• Locked Rotor Amperes: 15.5 A

• Slip: 3.75 %

• Insulation Class: F

• Temperature Rise: 80 K

• Service Factor: 1.25

• Duty: Continuous (S1)

• Ambient Temperature: –20°C to +40°C

• Altitude Rating: 1000 m.a.s.l.

• Degree of Protection: IP55

• Standard: NEMA MG‑1

• Mounting: B3L(E)

• Frame Material: Cast Iron

• Rotation: Both (CW and CCW)

• Bearing Type: 6204 ZZ (drive end), 6203 ZZ (non‑drive end)

• NDE Bearing Seal: V'Ring

• Terminal Block: BMC – 6 pins

• Terminal Box Position: Right

• Moment of Inertia (J): 0.0356 sq.ft.lb

• Drain: Rubber, automatic

• Fan Cover Material: Steel

• Fan Material: Plastic

• Impregnation Method: Dip and Bake Polyester

• Painting: RAL 5009 207A (ISO 12944 – C3)

• Grease Type: Mobil Polyrex EM

• Design Code: N

• Locked Rotor Time: 39 s (cold), 22 s (hot)

• Rated Torque: 2.27 ft.lb

• Shaft Material: SAE 1040/45 Carbon Steel

• Grounding Lugs: Single

• Sealing: V'Ring

• Noise Level: 62.0 dB(A)
