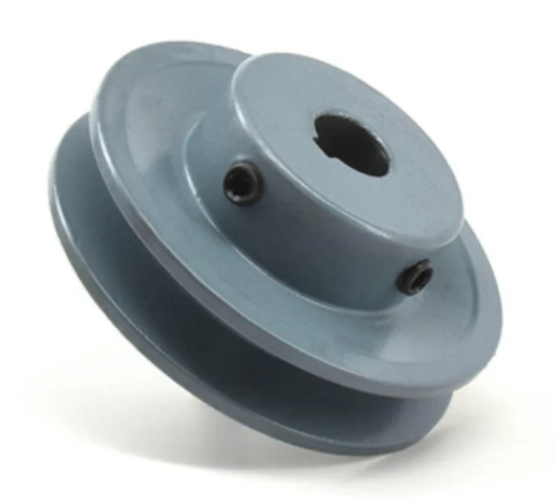

MA50X1-3/4,Maska,AK51,Bore 1-3/4'',Sheave,Light duty,Pulley,Emotornations,

E-Motor Nations

$42.70

MA50X1-3/4,Single Groove Fixed Bore MA50X1-3/4, Maska, AK51, Dodge,

AK51 X1-3/4, Dodge MA50X1-3/4, Light Duty Type 1A Single Groove Fixed Bore Sheave, MA Bore, 1-3/4 in Dia Bore, 4.95 in OD, 4.61 in (3L)/4.95 in (4L) Dia Pitch, 3/4 in W Face

Dodge Single Groove Fixed Bore Sheave, Light Duty Type 1A, MA Bore, 1-3/4'' in Bore Dia, 4.95 in Outside Dia, 4.61 in (3L)/4.95 in (4L), 3/4 in Face Width, 1-3/8 in Overall Length, For Use With: A, 3L and 4L Cross Section V-Belts, Cast Iron

Item Specifications

Bore Diameter
1.7500 in
Bore Type
MA
Face Width
3/4 in
Material
Cast Iron
Outside Diameter
4.95 in
Overall Length
1-3/8 in
Pitch Diameter
4.61 in (3L)/4.95 in (4L)
Suitable For Use With
A, 3L and 4L Cross Section V-Belts
Type
Light Duty Type 1A
Item Weight
2.40 lbs per EA
