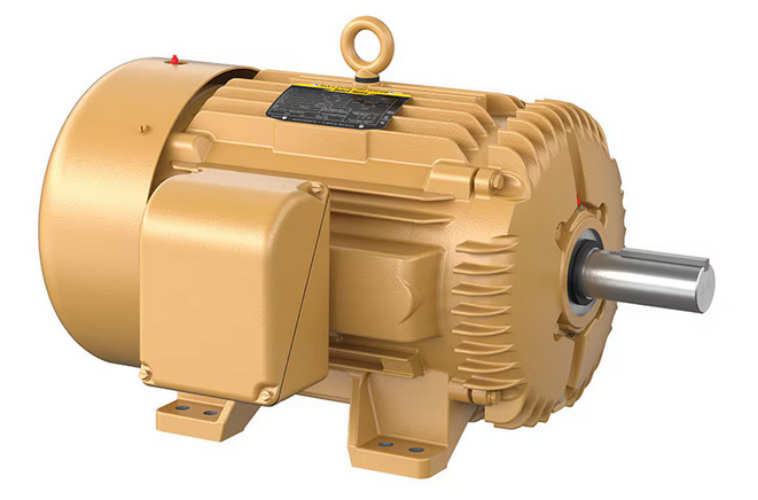

M3457, .33Hp, 3450 RPM, 230/460V 3PH, 60HZ ,48, 3410M, TENV, F1
M3457, .33Hp, 3450 RPM, 230/460V 3PH, 60HZ ,48, 3410M, TENV, F1 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
M3457, .33Hp, 3450 RPM, 230/460V 3PH, 60HZ ,48, 3410M, TENV, F1
Description
Description
M3457, .33Hp, 3450 RPM, 230/460V 3PH, 60HZ ,48, 3410M, TENV, F1

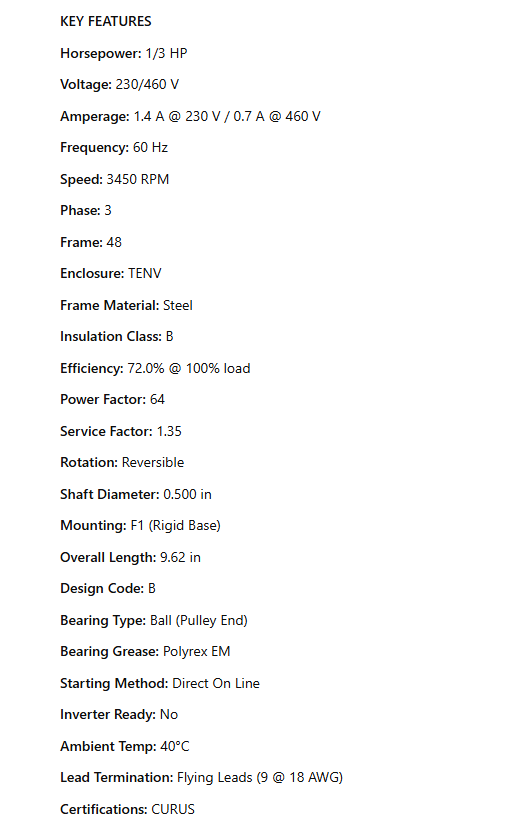

KEY FEATURES
Horsepower: 1/3 HP
Voltage: 230/460 V
Amperage: 1.4 A @ 230 V / 0.7 A @ 460 V
Frequency: 60 Hz
Speed: 3450 RPM
Phase: 3
Frame: 48
Enclosure: TENV
Frame Material: Steel
Insulation Class: B
Efficiency: 72.0% @ 100% load
Power Factor: 64
Service Factor: 1.35
Rotation: Reversible
Shaft Diameter: 0.500 in
Mounting: F1 (Rigid Base)

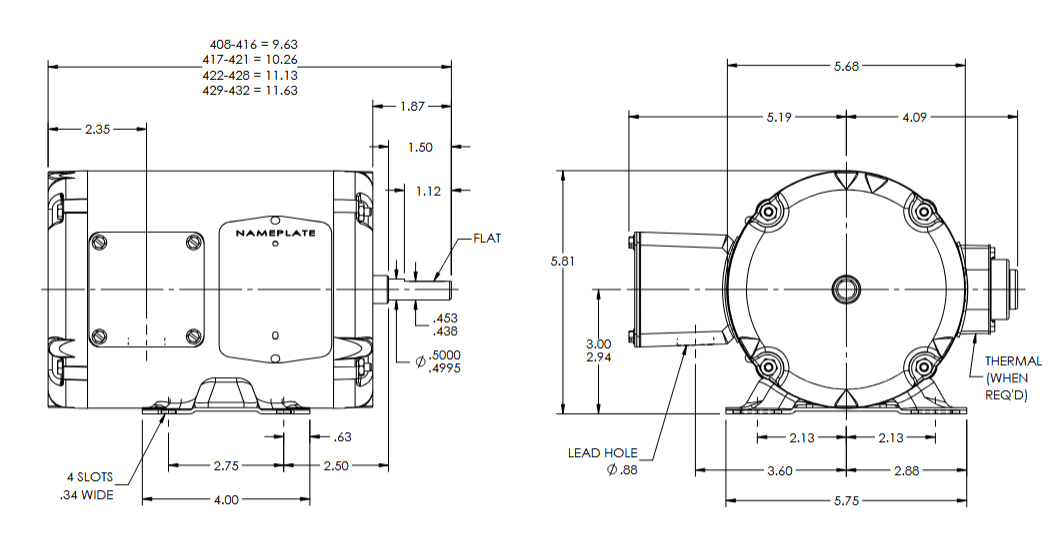

Overall Length: 9.62 in
Design Code: B
Bearing Type: Ball (Pulley End)
Bearing Grease: Polyrex EM
Starting Method: Direct On Line
Inverter Ready: No
Ambient Temp: 40°C

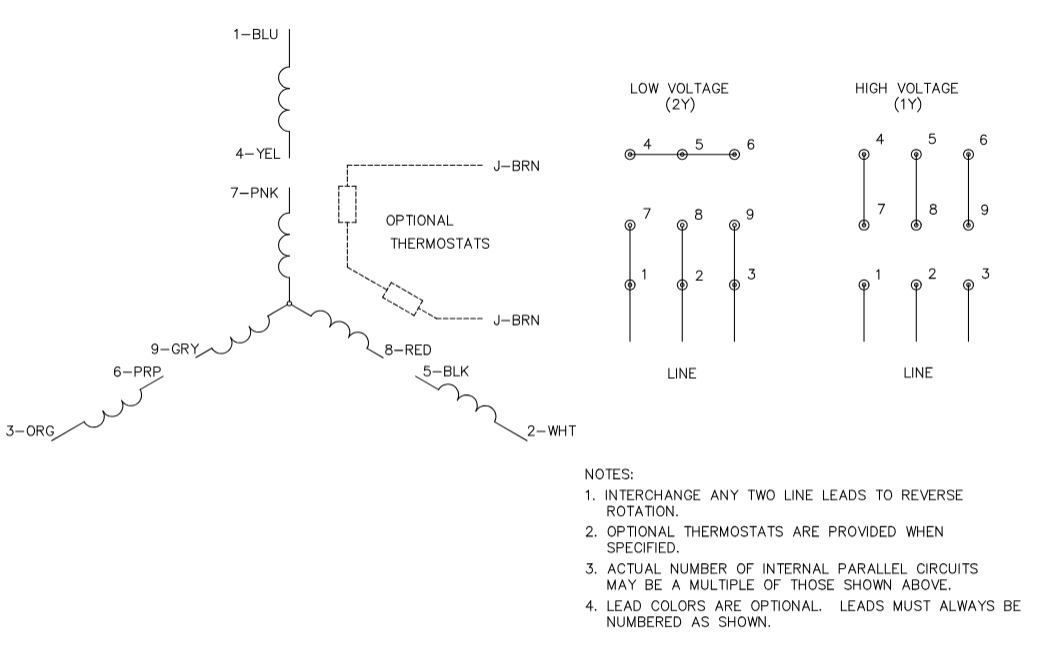

Lead Termination: Flying Leads (9 @ 18 AWG)
Certifications: CURUS
