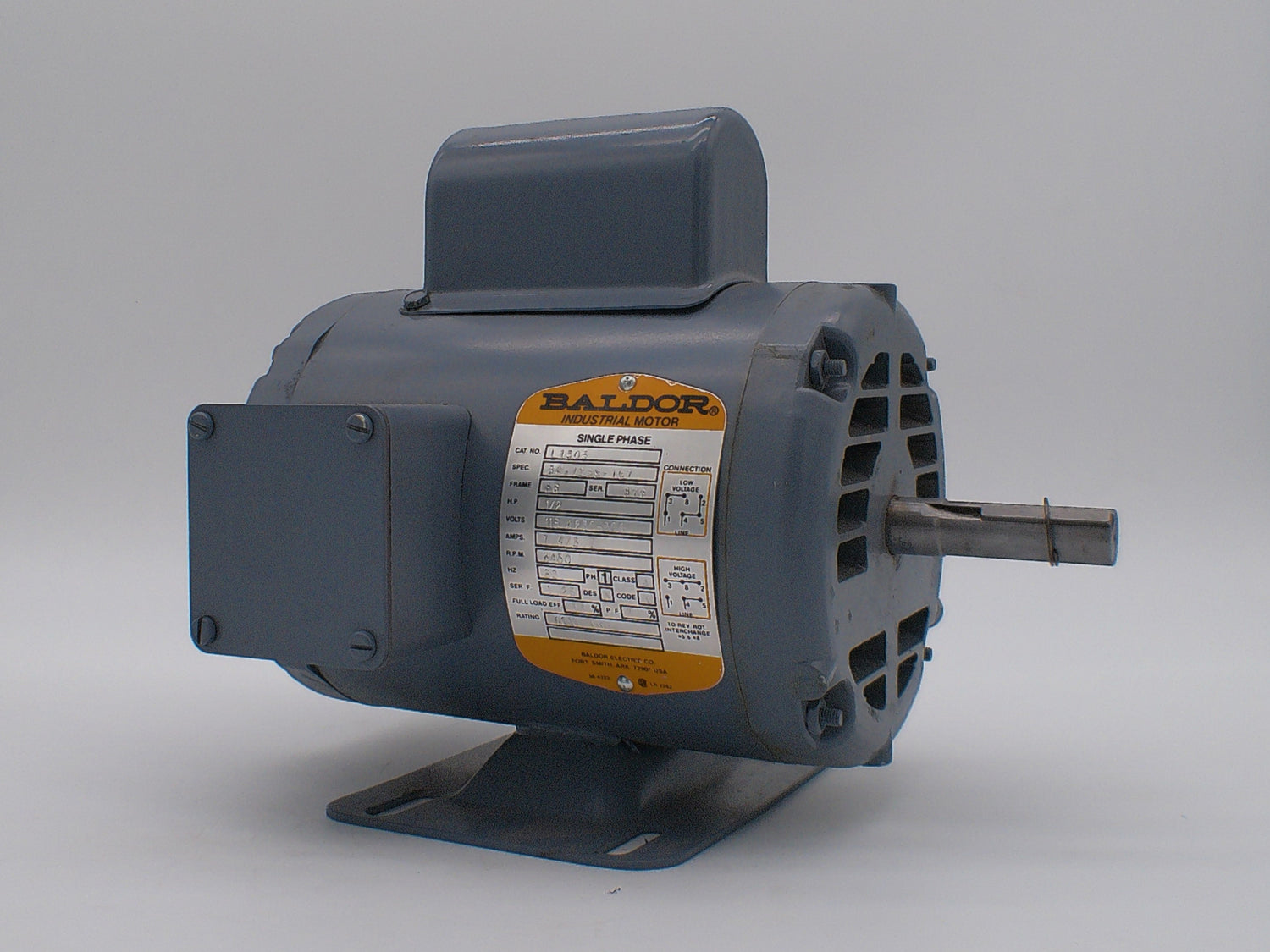

L1303, Baldor, 1/2Hp, 3450 Rpm, 115-208/230V, Fr:56, Open drip proof,

L1303,EL11303, Baldor, 1/2Hp, 3450 Rpm, 115-208/230V, Fr:56, Open drip proof,

• • Catalog Number (CAT. NO.): L1303

  • Specification Number: 34F074X716

  • Horsepower (HP): 0.5 HP

  • Voltage: 115/230 V

  • Current: 7 / 3.5 A

  • Speed: 3450 RPM

  • Frequency: 60 Hz

  • Phase: Single Phase (1 PH)

  • Frame: 56

  • Service Factor: 1.25

  • Code: L

  • Design: N

  • Insulation Class: B

  • NEMA Nominal Efficiency: 66%

  • Power Factor (PF): 72%

  • Rating: Continuous duty at 40°C ambient

  • Bearings:

    • Drive End (DE): 6203

    • Opposite Drive End (ODE): 6203

  • Enclosure: Open (OPEN)

  • Service Factor Amps (SFA): 8 / 4

Bearings:

• Type: Ball (DE & PE)

• Grease: Polyrex EM (-20°F to +300°F)

Other Features:

• No thermal protection (winding or bearing)

• No heater, feedback device, blower, or rodent screen

• No auxiliary box or lifting lugs

• Approvals: cURus

• Classification: Non-hazardous area

• Overall Length: 9.51 in
