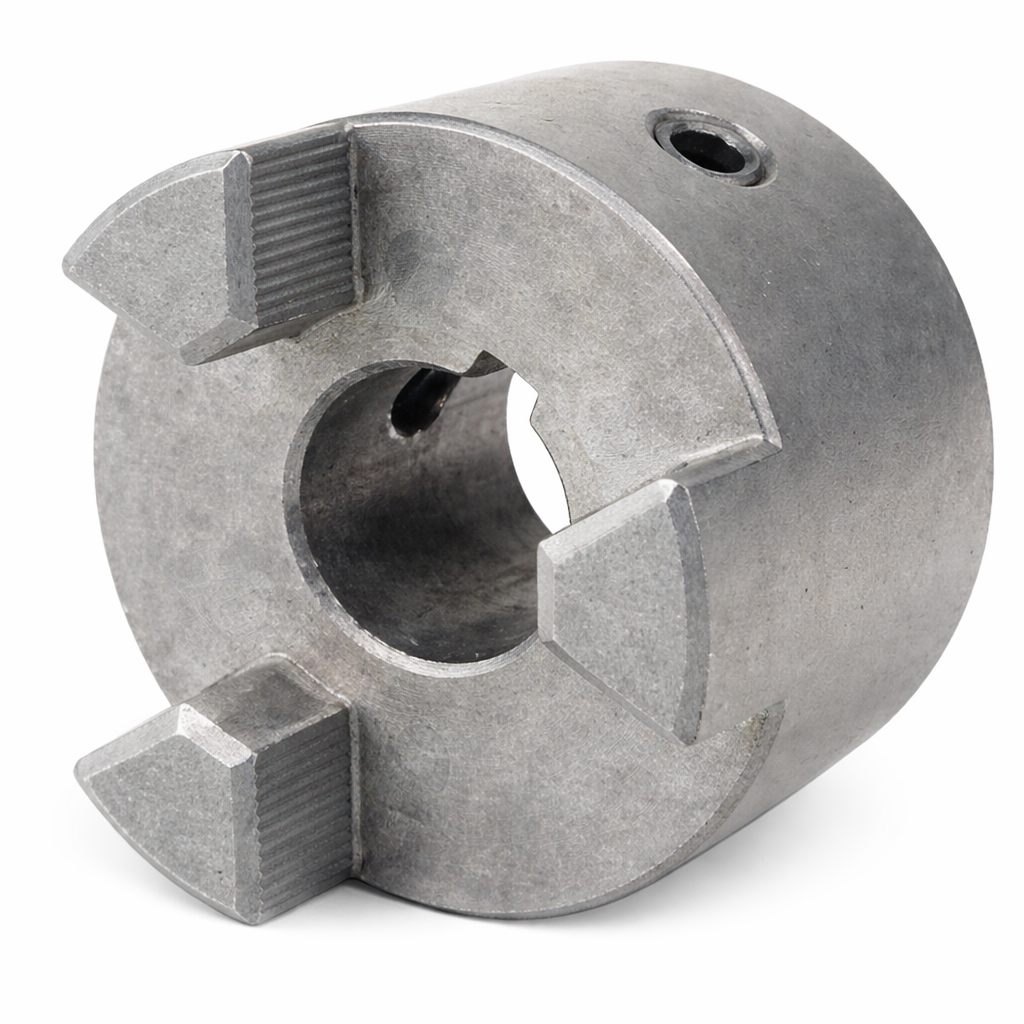

L100X1-1/8, Jaw Coupling Hub; 1-1/8" Bore; 2-17/32" Hub Dia; Jaw Coupling; Hub; Shaft; Finished Bore; Keyway; 2.531" Outside Diameter; 1.375" Length Thru Bore; L100 Size or Series; Set Screw; Steel; 7000 Maximum Speed

L100X1-18, Jaw Coupling Hub; 1-1/8" Bore; 2-17/32" Hub Dia; Jaw Coupling; Hub; Shaft; Finished Bore; Keyway; 2.531" Outside Diameter; 1.375" Length Thru Bore; L100 Size or Series; Set Screw; Steel; 7000 Maximum Speed; Buna-N 416 | Hytrel/Bronze 1134 | Urethane 624In-Lbs Torque

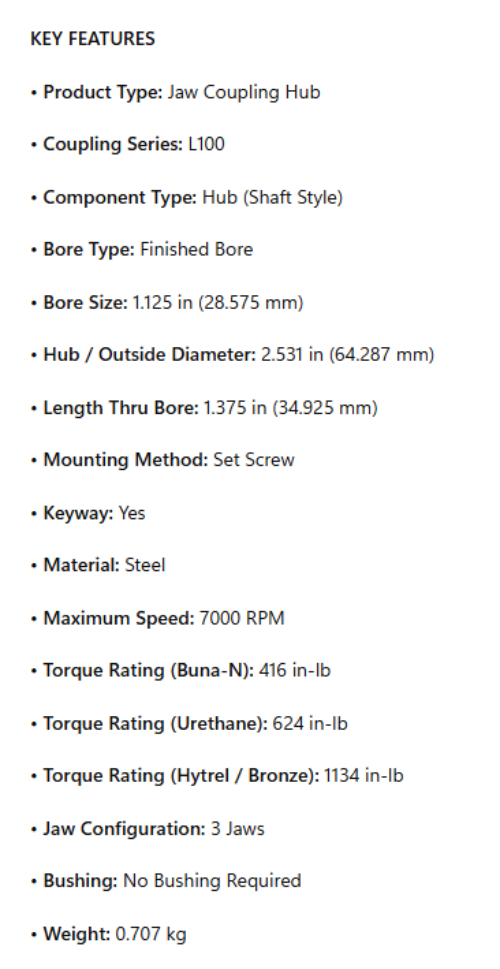

KEY FEATURES

• Product Type: Jaw Coupling Hub

• Coupling Series: L100

• Component Type: Hub (Shaft Style)

• Bore Type: Finished Bore

• Bore Size: 1.125 in (28.575 mm)

• Hub / Outside Diameter: 2.531 in (64.287 mm)

• Length Thru Bore: 1.375 in (34.925 mm)

• Mounting Method: Set Screw

• Keyway: Yes

• Material: Steel

• Maximum Speed: 7000 RPM

• Torque Rating (Buna-N): 416 in-lb

• Torque Rating (Urethane): 624 in-lb

• Torque Rating (Hytrel / Bronze): 1134 in-lb

• Jaw Configuration: 3 Jaws

• Bushing: No Bushing Required

• Weight: 0.707 kg
