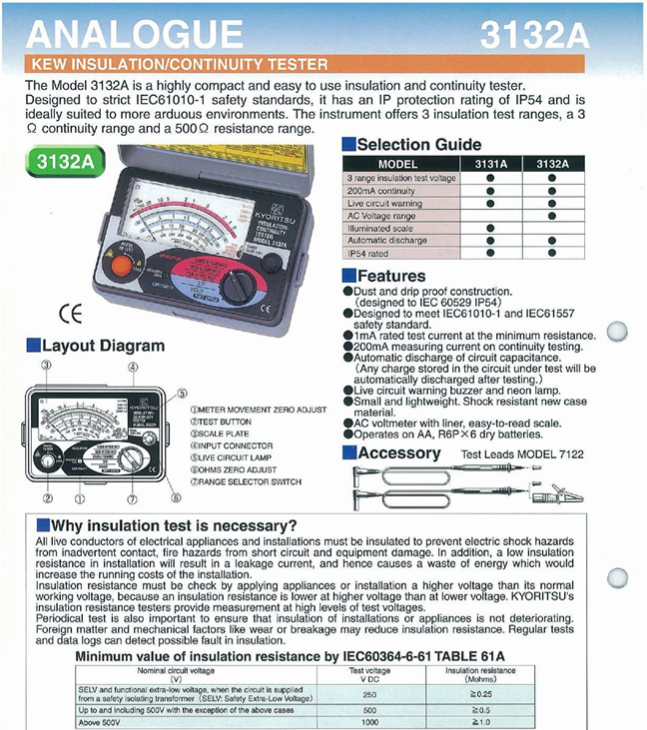

KEW3132A, Analog Insulation/Continuity Tester, 250/500/1000 V

KEW3132A, Analog Insulation/Continuity Tester, 250/500/1000 V

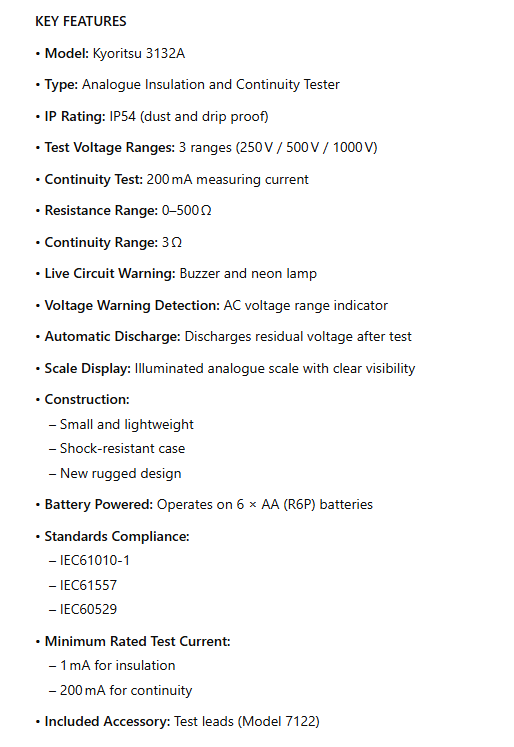

KEY FEATURES

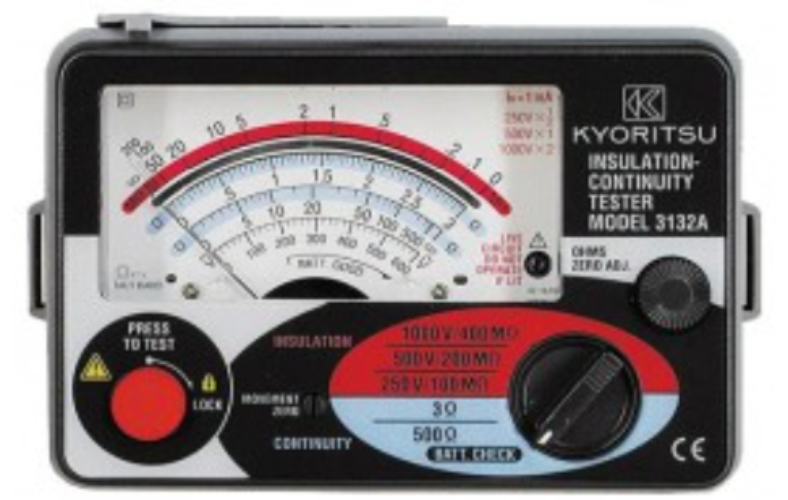

• Model: Kyoritsu 3132A

• Type: Analogue Insulation and Continuity Tester

• IP Rating: IP54 (dust and drip proof)

• Test Voltage Ranges: 3 ranges (250 V / 500 V / 1000 V)

• Continuity Test: 200 mA measuring current

• Resistance Range: 0–500 Ω

• Continuity Range: 3 Ω

• Live Circuit Warning: Buzzer and neon lamp

• Voltage Warning Detection: AC voltage range indicator

• Automatic Discharge: Discharges residual voltage after test

• Scale Display: Illuminated analogue scale with clear visibility

• Construction:
 – Small and lightweight
 – Shock-resistant case
 – New rugged design

• Battery Powered: Operates on 6 × AA (R6P) batteries

• Standards Compliance:
 – IEC61010-1
 – IEC61557
 – IEC60529

• Minimum Rated Test Current:
 – 1 mA for insulation
 – 200 mA for continuity

• Included Accessory: Test leads (Model 7122)
