KB ELECTRONIC  |  SKU : EMN-019987

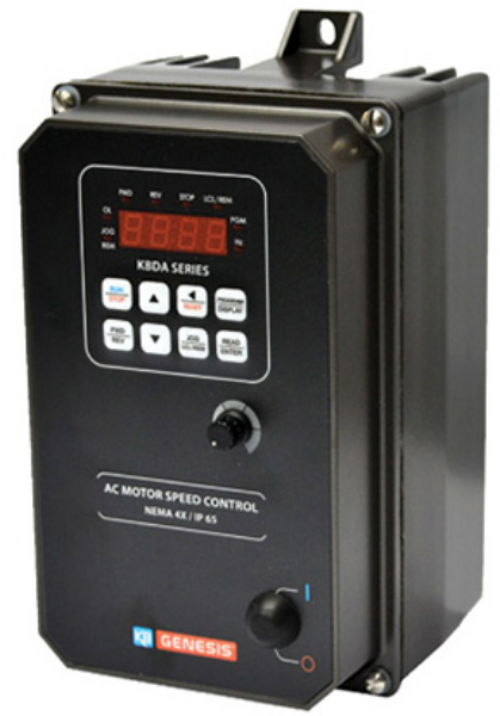

KBDA-24P, Digital AC Drive 1Hp 3.6A 230V 3PH Input 230V 3PH Output NEMA 4X Enclosure - Gray (Copy)

$845.56
shipping

Estimation des frais de livraison

Description

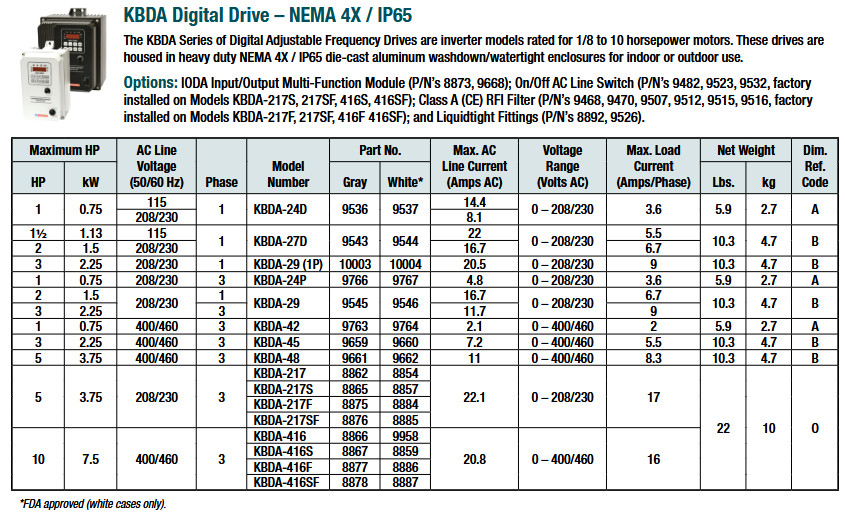

9766, (KBDA-24P) Digital AC Drive 1Hp 3.6A 230V 3PH Input 230V 3PH Output NEMA 4X Enclosure - Gray

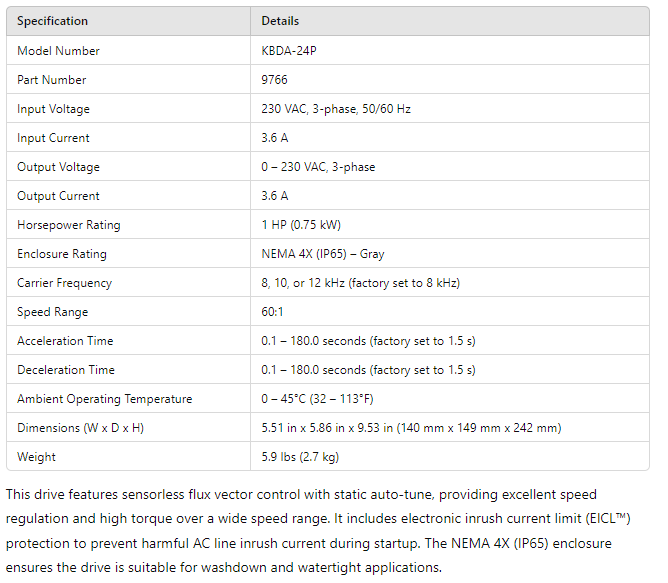

Specification Details
Model Number KBDA-24P
Part Number 9766
Input Voltage 230 VAC, 3-phase, 50/60 Hz
Input Current 3.6 A
Output Voltage 0 – 230 VAC, 3-phase
Output Current 3.6 A
Horsepower Rating 1 HP (0.75 kW)
Enclosure Rating NEMA 4X (IP65) – Gray
Carrier Frequency 8, 10, or 12 kHz (factory set to 8 kHz)
Speed Range 60:1
Acceleration Time 0.1 – 180.0 seconds (factory set to 1.5 s)
Deceleration Time 0.1 – 180.0 seconds (factory set to 1.5 s)
Ambient Operating Temperature 0 – 45°C (32 – 113°F)

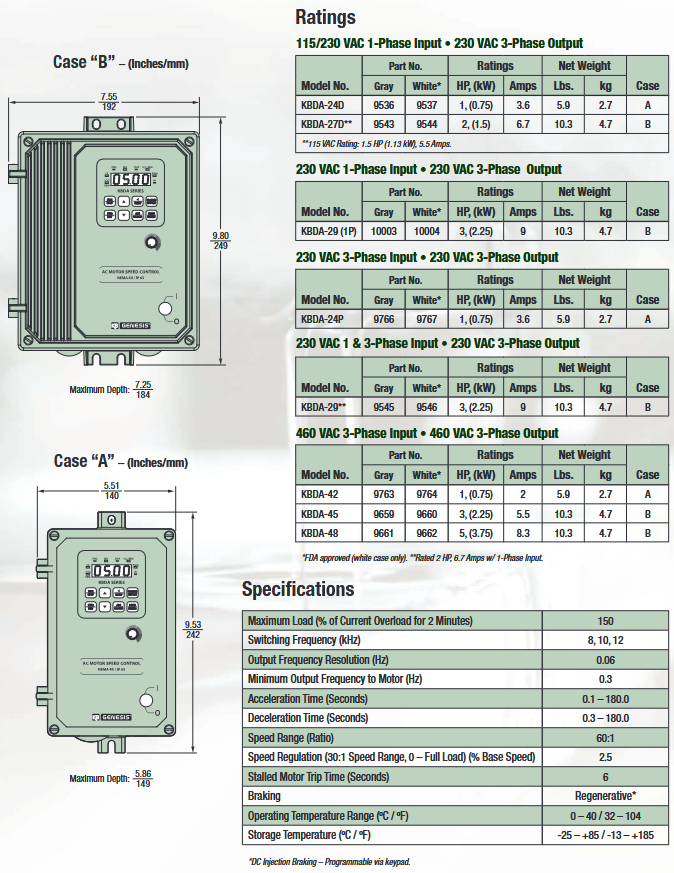

Dimensions (W x D x H) 5.51 in x 5.86 in x 9.53 in (140 mm x 149 mm x 242 mm)
Weight 5.9 lbs (2.7 kg)

This drive features sensorless flux vector control with static auto-tune, providing excellent speed regulation and high torque over a wide speed range. It includes electronic inrush current limit (EICL™) protection to prevent harmful AC line inrush current during startup. The NEMA 4X (IP65) enclosure ensures the drive is suitable for washdown and watertight applications.
