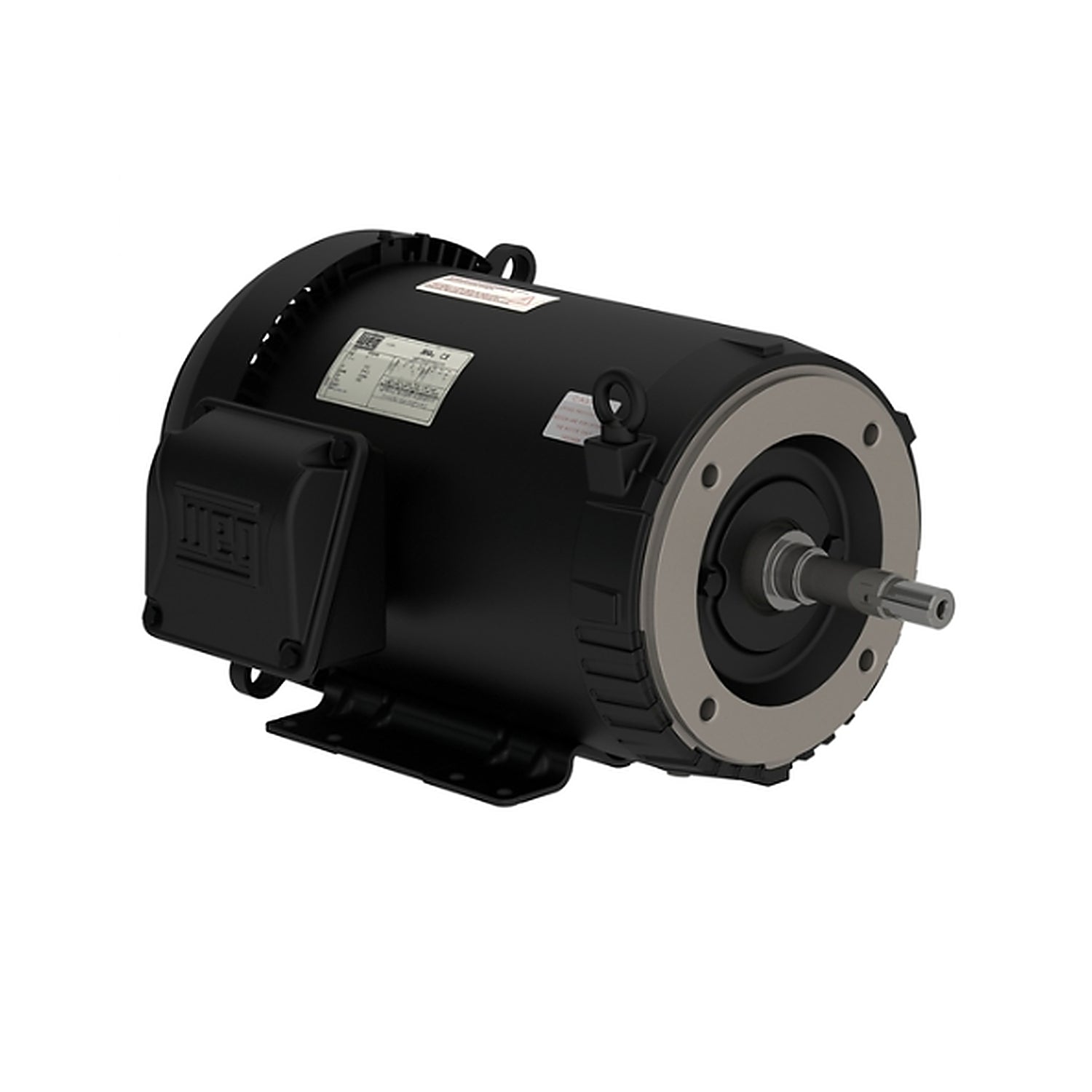

JM015502PW01, 15 Hp, 3450 RPM, 575 V, 3 Ph, 60 Hz, TEFC, Frame 213/5JM

This three-phase AC motor is engineered for high-efficiency industrial applications, delivering 15 Hp at 3450 RPM with a totally enclosed fan-cooled enclosure and robust rolled steel construction.

KEY FEATURES

• Model: JM015502PW01

• Horsepower: 15 Hp

• Voltage: 575 V – 3 Phase

• Speed: 3450 RPM @ 60 Hz

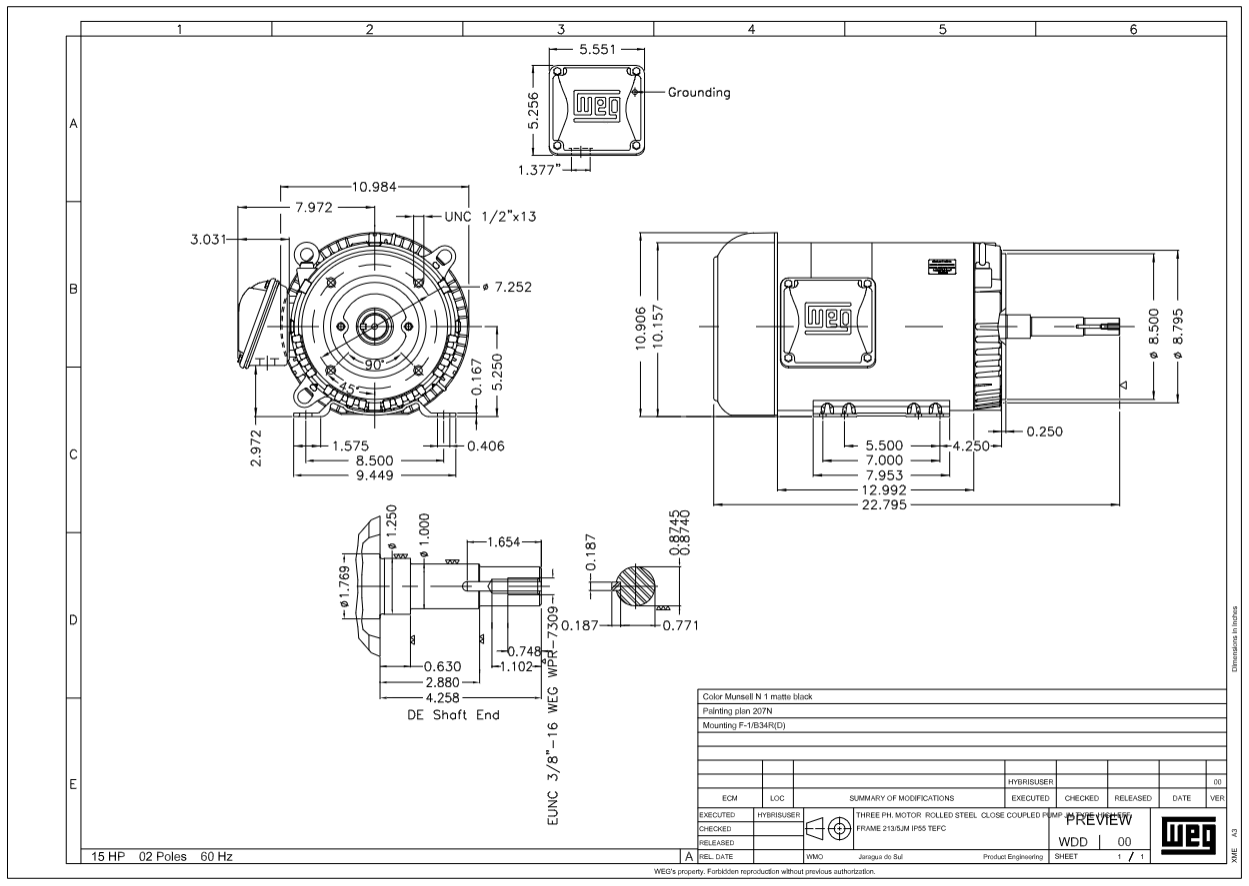

• Frame: 213/5JM

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Service Factor: 1.15

• Efficiency: 90.2 %

• Power Factor: 0.89

• Current: 13.8 A

• Insulation Class: F

• Duty: Continuous

• Design Code: NEMA Design B

• Mounting: Foot-mounted

• Bearings: DE: 6208‑ZZ; NDE: 6206‑ZZ

• Number of Poles: 2

• IP Code: IP21

• Ambient Rating: 40 °C

• Frame Material: Rolled Steel

• Special Feature: Premium-efficiency performance

This motor delivers high efficiency and robust construction, making it well-suited for demanding industrial environments requiring reliable continuous operation.
