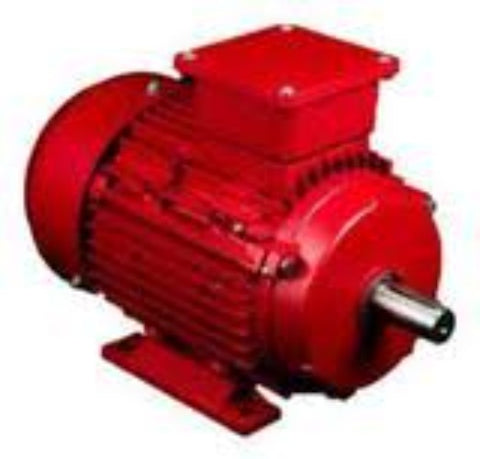

IJC315L2-2-47, 270 HP, 3600 RPM, 208-230/460V, FRAME 315L, MAXMOTION

MAXMOTION

$23,411.59

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, AND IE3 EFFICIENCIES

FEATURES: IJC315L2-2-47

IP55 weather protection
Class H Insulation, with B Temp Rise
Inverter Duty Magnet Wire,

meets MG1 Part 31 10:1 CT, 20:1 VT
SKF High Temp bearings
56-112 Frames come with

Seal/lubricated Bearings,
132 and larger are re-greasable
Aluminum Construction 56-160 frame, Cast Iron 180-500 frame
Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger
PTC installed on frames 132 and larger
IEC Design N, with NEMA B Torques

Terminal Blocks, Stud

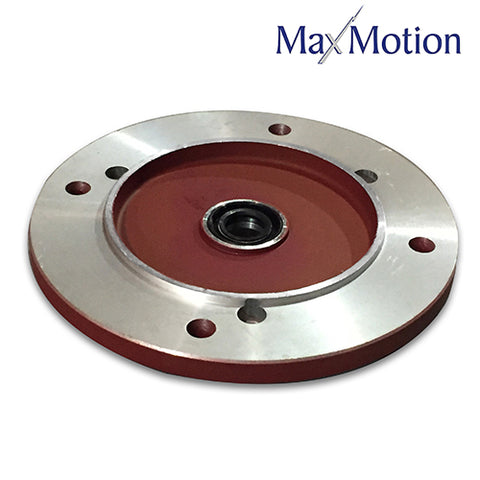

B14 and B5 Flanges are available
MAX MOTION ELECTRIC MOTOR

HP	270
CAT. #	IJC315L2-2-47
RPM	3600
VOLTAGE	208-230/460
FRAME	315
TORQUE (IN.LBS.)
WGT. LBS.	2631.576
“L” DIM.	1334
KW	200
EFF	IE3
