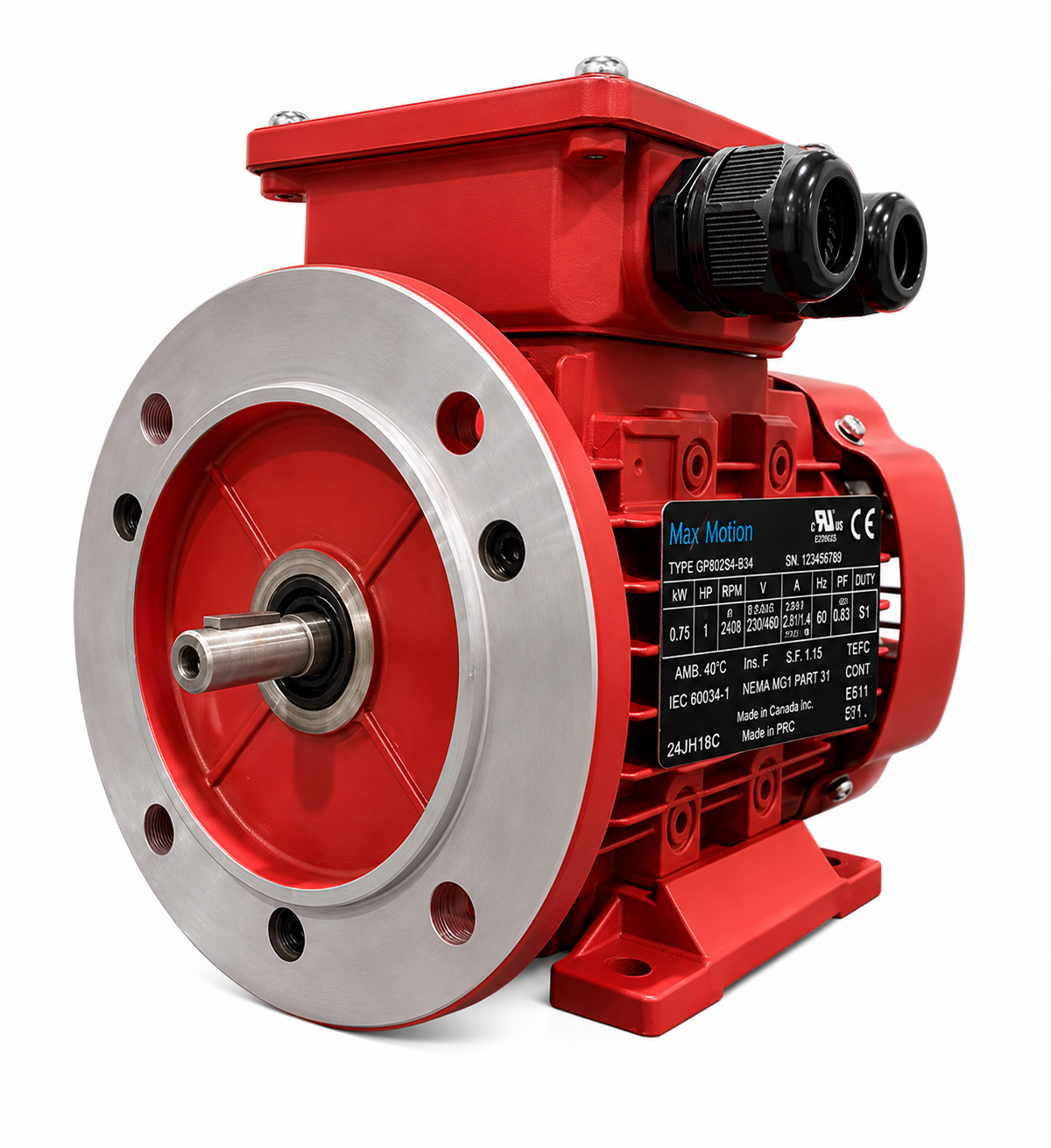

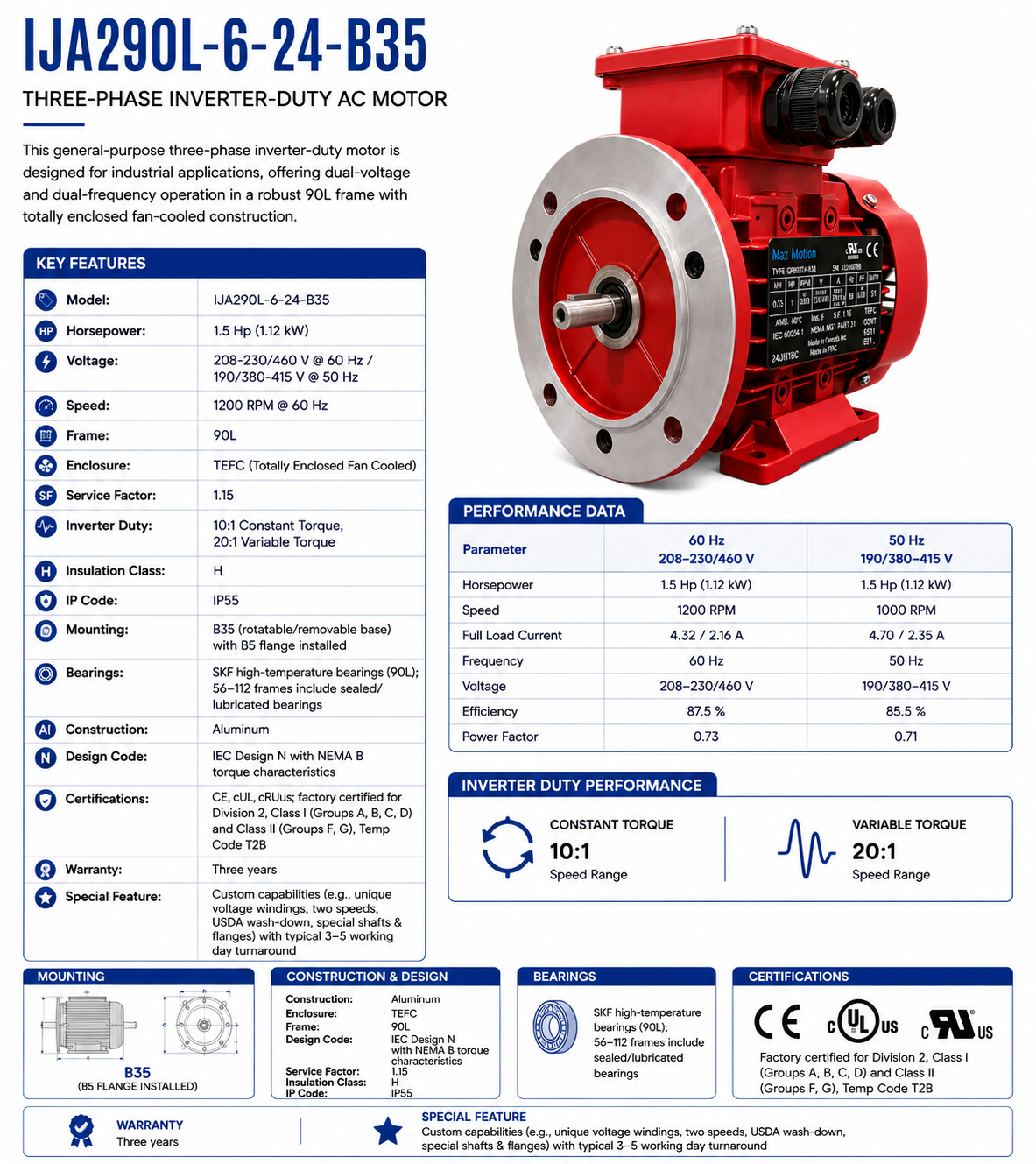

IJA290L‑6‑24‑B35, 1.5Hp, 1200RPM, 208‑230/460V @ 60 Hz / 190/380‑415V @ 50 Hz, 3Ph, TEFC, Frame 90L

This general-purpose three-phase inverter-duty motor is designed for industrial applications, offering dual-voltage and dual-frequency operation in a robust 90L frame with totally enclosed fan-cooled construction.

KEY FEATURES

• Model: IJA290L‑6‑24‑B35

• Horsepower: 1.5 Hp (1.12 kW)

• Voltage: 208‑230/460 V @ 60 Hz / 190/380‑415 V @ 50 Hz

• Speed: 1200 RPM @ 60 Hz

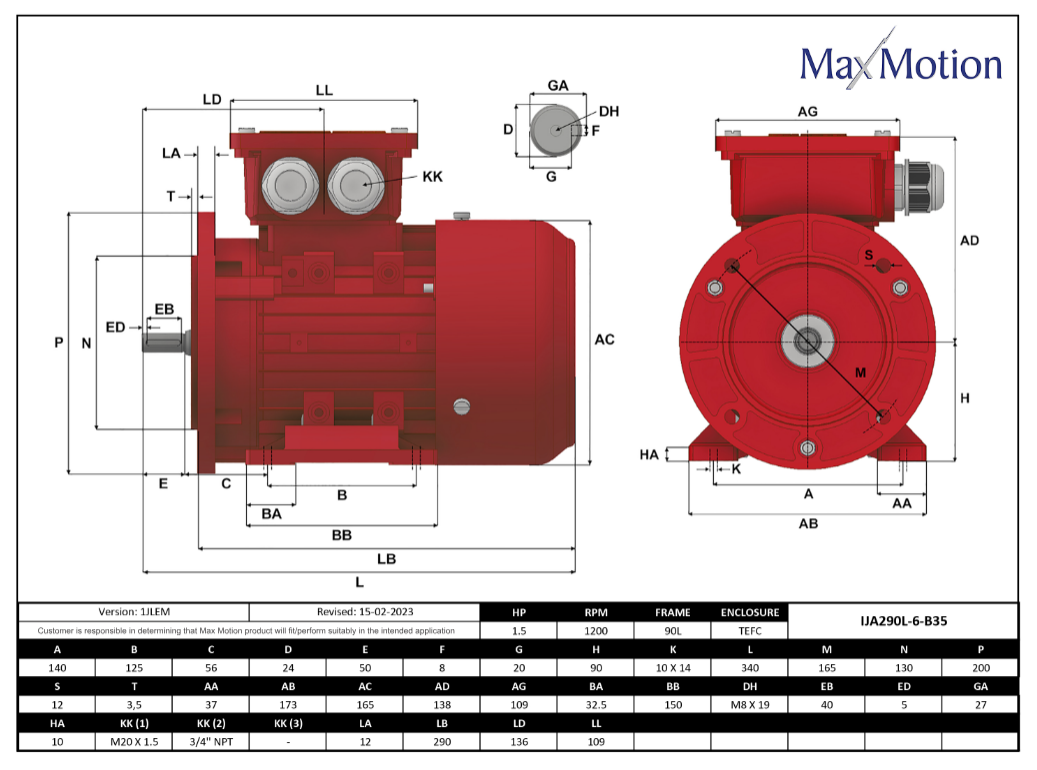

• Frame: 90L

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Inverter Duty: 10:1 Constant Torque, 20:1 Variable Torque

• Insulation Class: H

• IP Code: IP55

• Mounting: B35 (rotatable/removable base) with IJAB5-90-NG B5 flange installed

• Bearings: SKF high-temperature bearings (90L); 56–112 frames include sealed/lubricated bearings

• Construction: Aluminum

• Design Code: IEC Design N with NEMA B torque characteristics

• Certifications: CE, cUL, cRUus; factory certified for Division 2, Class I (Groups A, B, C, D) and Class II (Groups F, G), Temp Code T2B

• Warranty: Three years

• Special Feature: Custom capabilities (e.g., unique voltage windings, two speeds, USDA wash-down, special shafts & flanges) with typical 3–5 working day turnaround
