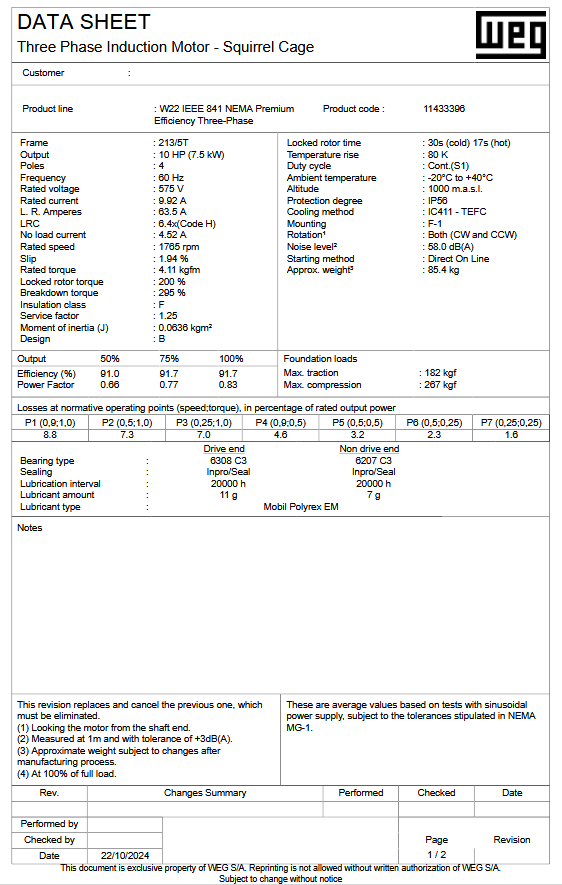

IE010504W22IS, 10Hp, 1800 RPM, 575 V, 3Ph, 60 Hz, TEFC, Frame 213/5T

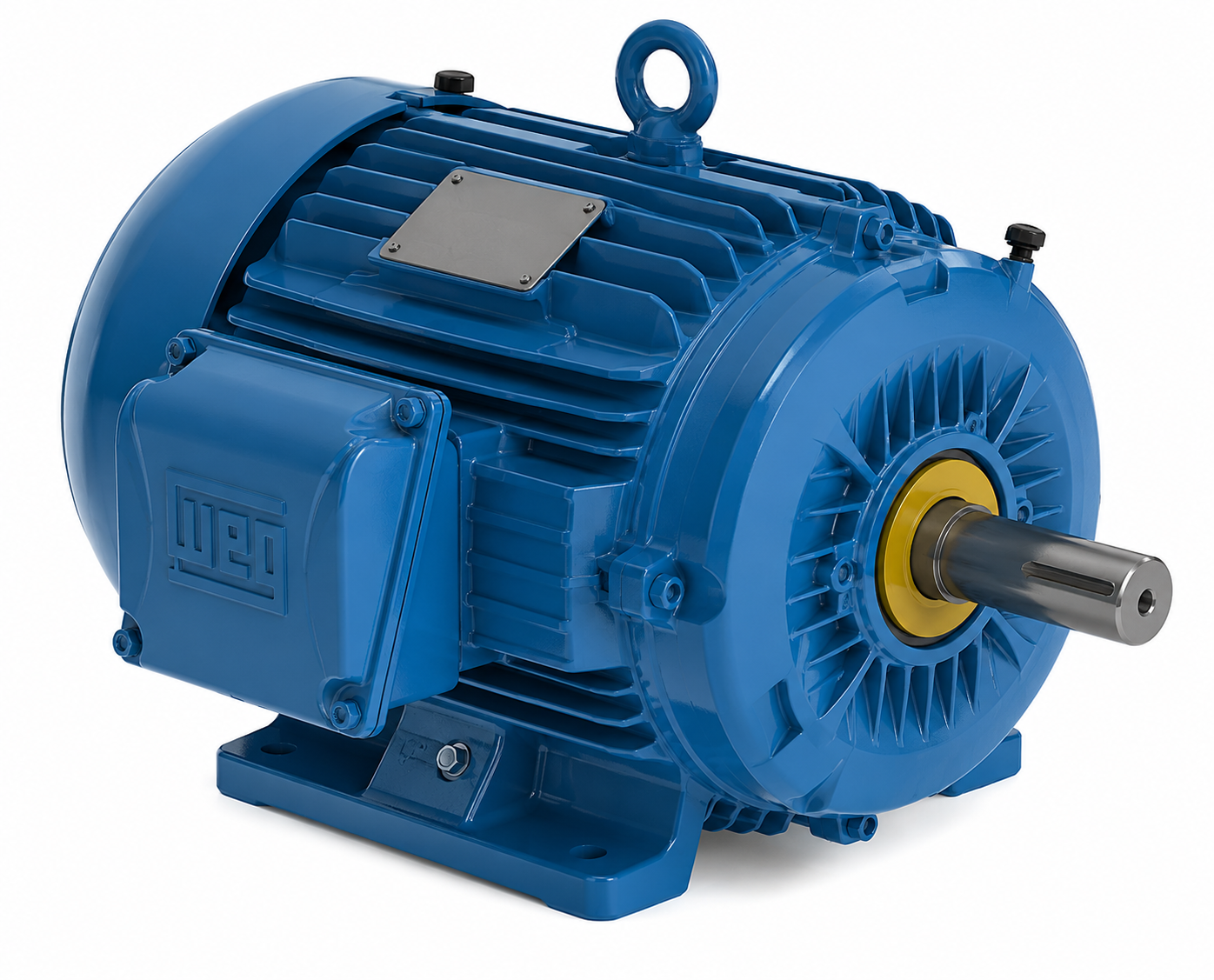

This three-phase industrial induction motor is engineered for demanding environments, offering premium efficiency and rugged construction in a cast iron frame with totally enclosed fan-cooled design.

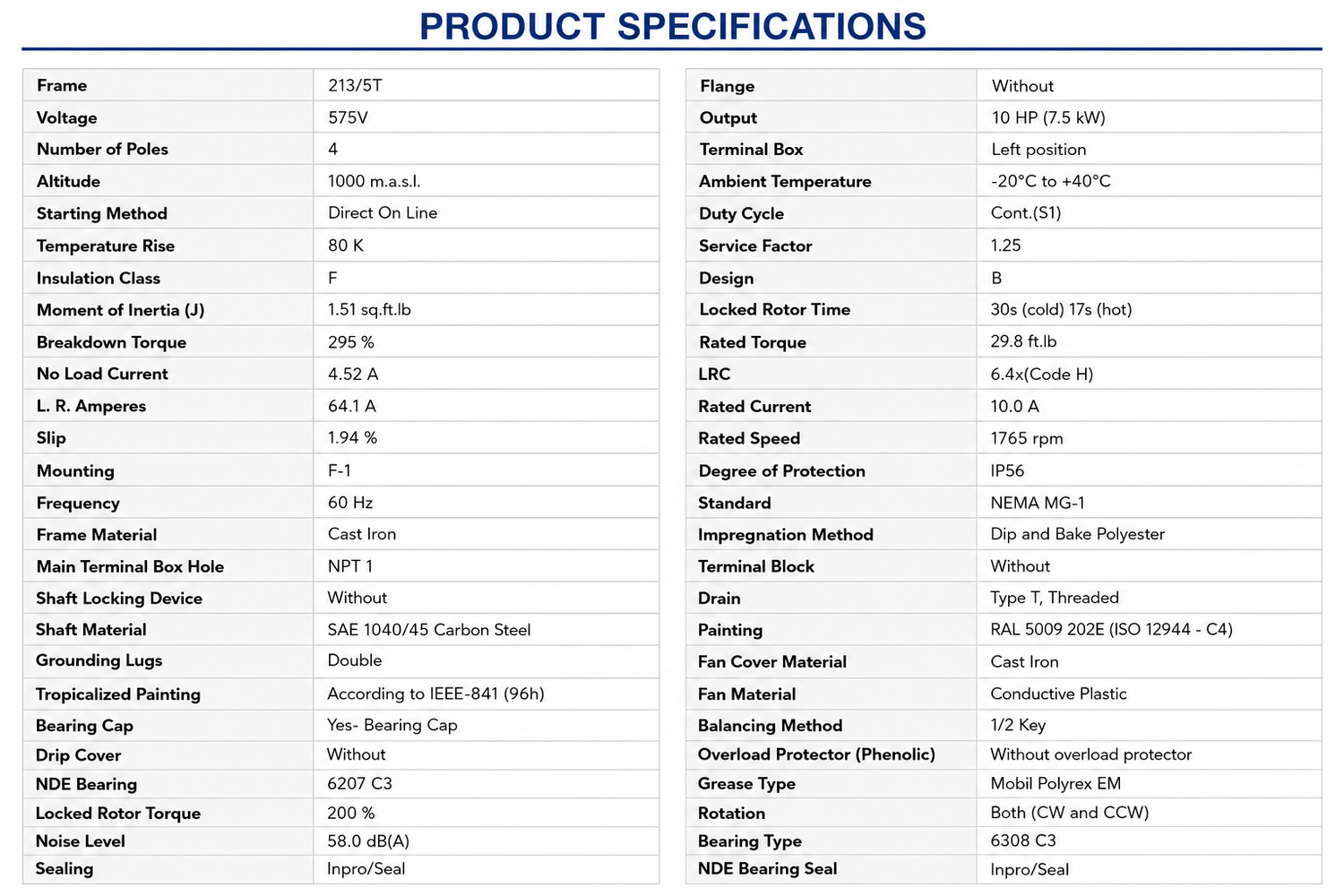

KEY FEATURES

• Model: IE010504W22IS

• Horsepower: 10 Hp (7.5 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1800 RPM @ 60 Hz

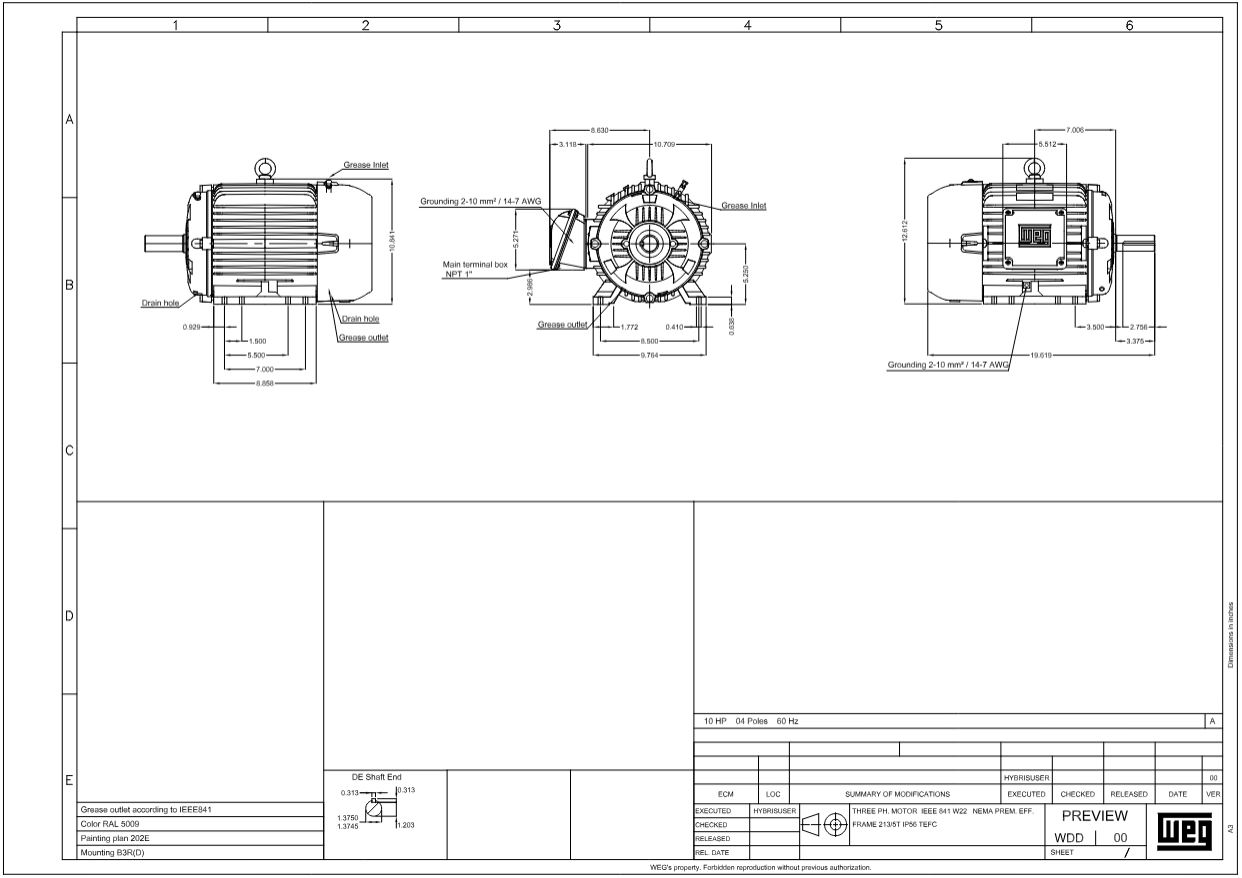

• Frame: 213/5T

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.25

• Insulation Class: F

• Design Code: B

• Mounting: F‑1 (Foot‑mounted)

• Shaft Material: SAE 1040/45 Carbon Steel

• Bearings: DE: 6308 C3; NDE: 6207 C3

• Frame Material: Cast Iron

• Rotation: Both (CW and CCW)

• Degree of Protection (IP Code): IP56

• Duty: Continuous (S1)

• Ambient Rating: –20 °C to +40 °C

• Noise Level: 58.0 dB(A)

• Breakdown Torque: 295 %

• Locked Rotor Torque: 200 %

• Slip: 1.94 %

• Temperature Rise: 80 K

• Sealing: Inpro/Seal

• Painting: RAL 5009 202E (ISO 12944 – C4)

• Grease Type: Mobil Polyrex EM

• Moment of Inertia (J): 1.51 sq.ft.lb
