BALDOR  |  SKU : EMN-019907

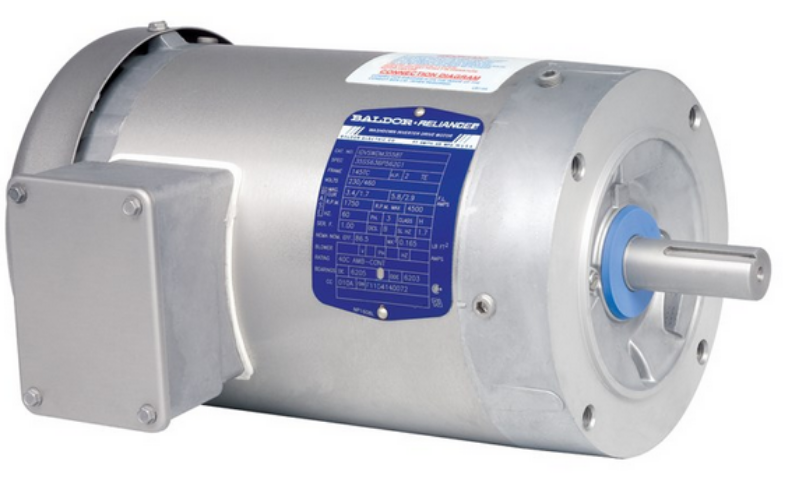

IDVSWDM3554, Baldor 1.5Hp, 1770RPM, 3PH, 60HZ ,56C, 3524M, TEFC, F1, 35S640L955G1

$3,420.60
Frais de livraison calculés lors du paiement.
shipping

Estimation des frais de livraison

Description

IDVSWDM3554, Baldor 1.5Hp, 1770RPM, 3PH, 60HZ ,56C, 3524M, TEFC, F1, 35S640L955G1

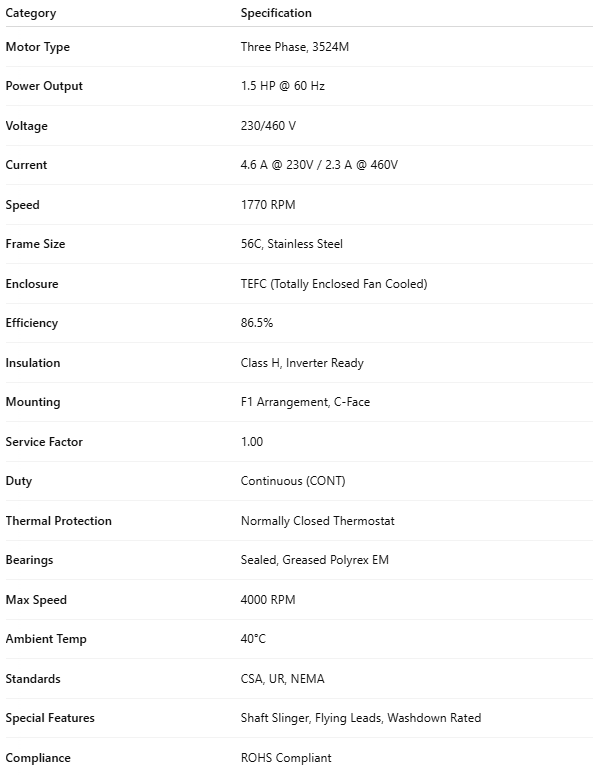

Category Specification
Motor Type Three Phase, 3524M
Power Output 1.5 HP @ 60 Hz
Voltage 230/460 V
Current 4.6 A @ 230V / 2.3 A @ 460V
Speed 1770 RPM
Frame Size 56C, Stainless Steel
Enclosure TEFC (Totally Enclosed Fan Cooled)
Efficiency 86.5%
Insulation Class H, Inverter Ready
Mounting F1 Arrangement, C-Face
Service Factor 1.00
Duty Continuous (CONT)
Thermal Protection Normally Closed Thermostat
Bearings Sealed, Greased Polyrex EM
Max Speed 4000 RPM
Ambient Temp 40°C
Standards CSA, UR, NEMA
Special Features Shaft Slinger, Flying Leads, Washdown Rated
Compliance ROHS Compliant
