WEG | SKU :
EMN-018941

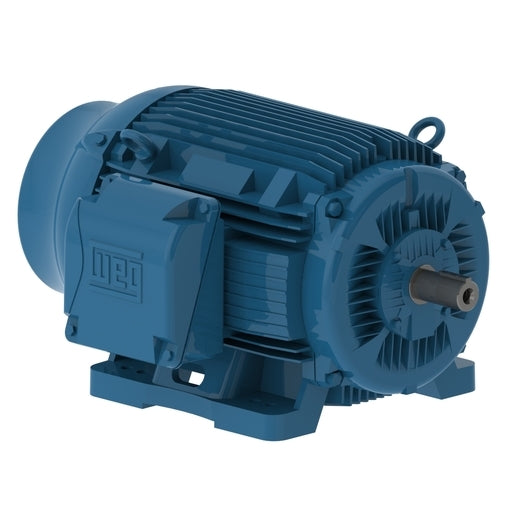

HT125504NPRBW22, Weg, 125Hp, 1785 Rpm, 575 Volts, Frame:444/5T, TEFC,
Prix habituel
$13,825.00
Prix unitaire
/
Indisponible
HT125504NPRBW22, Weg, 125Hp, 1785 Rpm, 575 Volts, Frame:444/5T, TEFC, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
HT125504NPRBW22, Weg, 125Hp, 1785 Rpm, 575 Volts, Frame:444/5T, TEFC,
Prix habituel
$13,825.00
Prix unitaire
/
Indisponible
Description
Description
HT125504NPRBW22, Weg

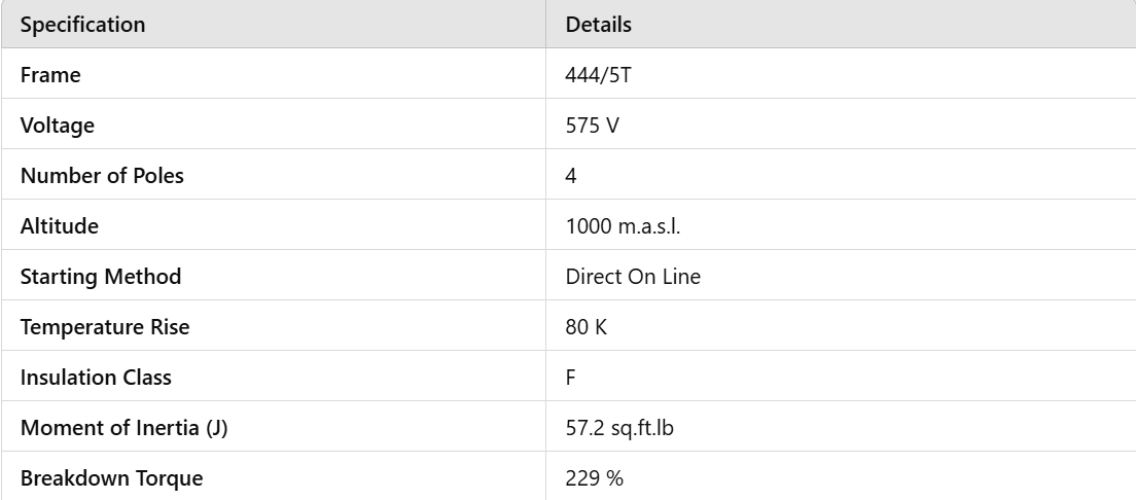

| Specification | Details |
|---|---|
| Frame | 444/5T |
| Voltage | 575 V |
| Number of Poles | 4 |
| Altitude | 1000 m.a.s.l. |
| Starting Method | Direct On Line |
| Temperature Rise | 80 K |
| Insulation Class | F |
| Moment of Inertia (J) | 57.2 sq.ft.lb |
| Breakdown Torque | 229 % |

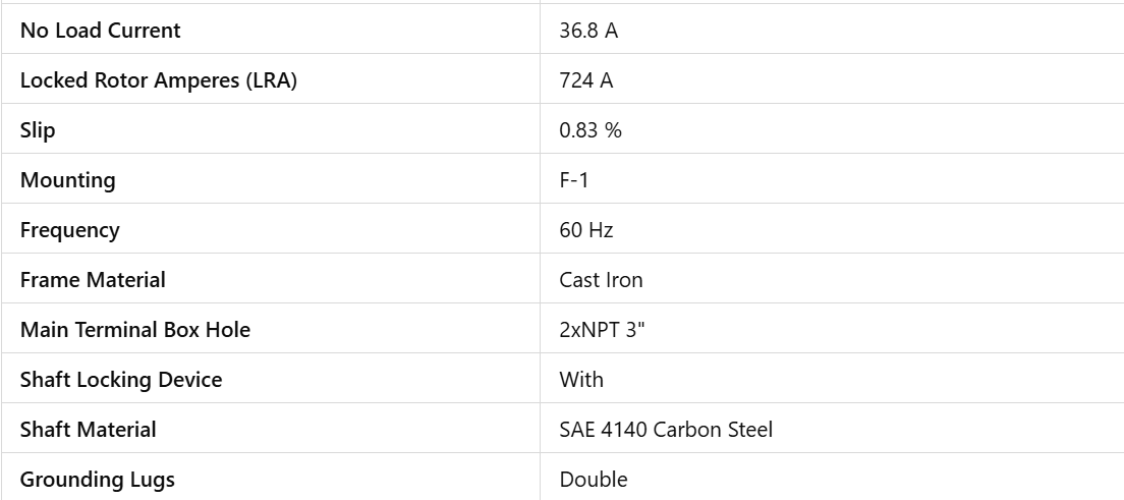

| No Load Current | 36.8 A |
| Locked Rotor Amperes (LRA) | 724 A |
| Slip | 0.83 % |
| Mounting | F-1 |
| Frequency | 60 Hz |
| Frame Material | Cast Iron |
| Main Terminal Box Hole | 2xNPT 3" |
| Shaft Locking Device | With |
| Shaft Material | SAE 4140 Carbon Steel |
| Grounding Lugs | Double |

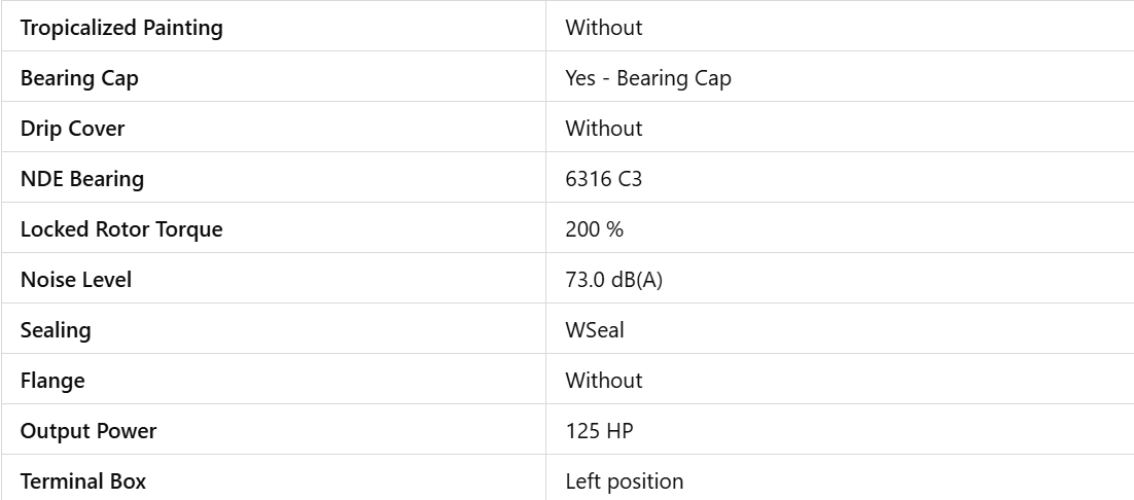

| Tropicalized Painting | Without |
| Bearing Cap | Yes - Bearing Cap |
| Drip Cover | Without |
| NDE Bearing | 6316 C3 |
| Locked Rotor Torque | 200 % |
| Noise Level | 73.0 dB(A) |
| Sealing | WSeal |
| Flange | Without |
| Output Power | 125 HP |
| Terminal Box | Left position |

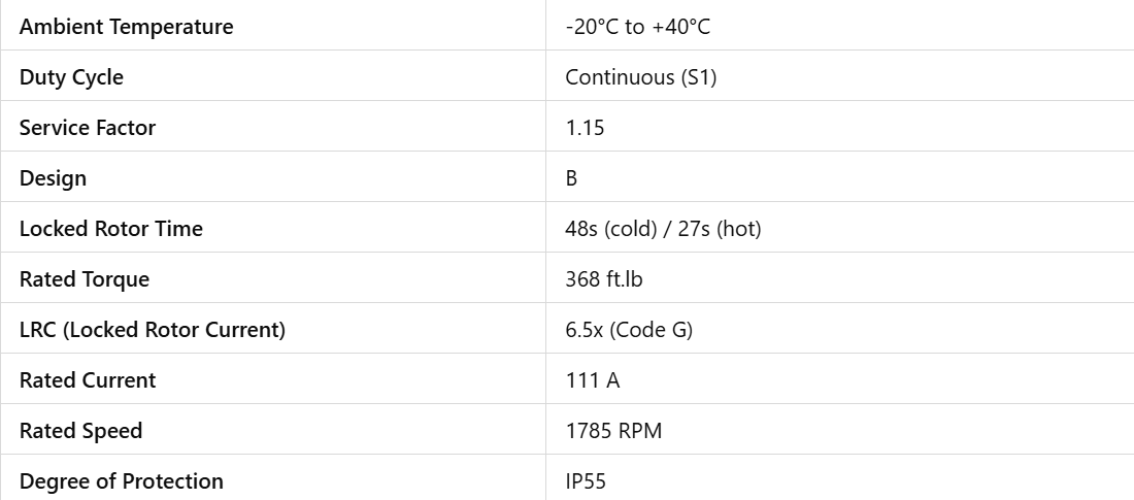

| Ambient Temperature | -20°C to +40°C |
| Duty Cycle | Continuous (S1) |
| Service Factor | 1.15 |
| Design | B |
| Locked Rotor Time | 48s (cold) / 27s (hot) |
| Rated Torque | 368 ft.lb |
| LRC (Locked Rotor Current) | 6.5x (Code G) |
| Rated Current | 111 A |
| Rated Speed | 1785 RPM |
| Degree of Protection | IP55 |

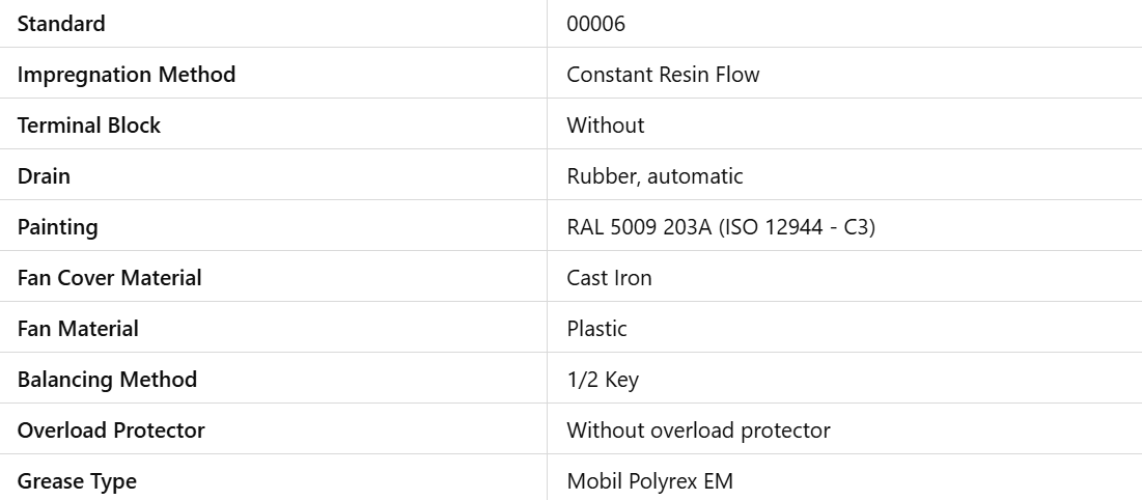

| Standard | 00006 |
| Impregnation Method | Constant Resin Flow |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Painting | RAL 5009 203A (ISO 12944 - C3) |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Balancing Method | 1/2 Key |
| Overload Protector | Without overload protector |
| Grease Type | Mobil Polyrex EM |

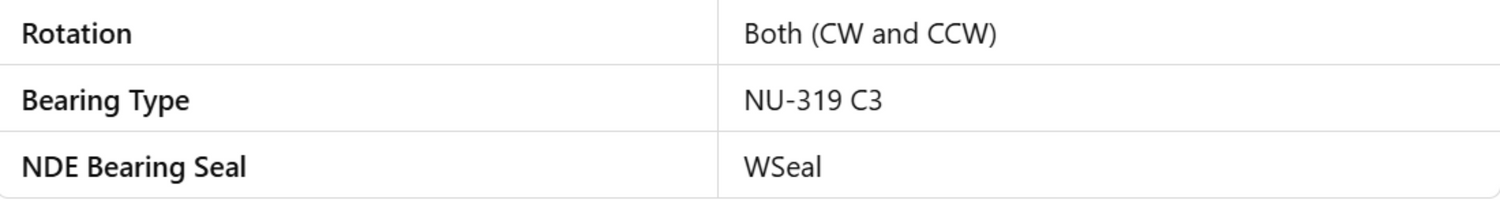

| Rotation | Both (CW and CCW) |
| Bearing Type | NU-319 C3 |
| NDE Bearing Seal | WSeal |
