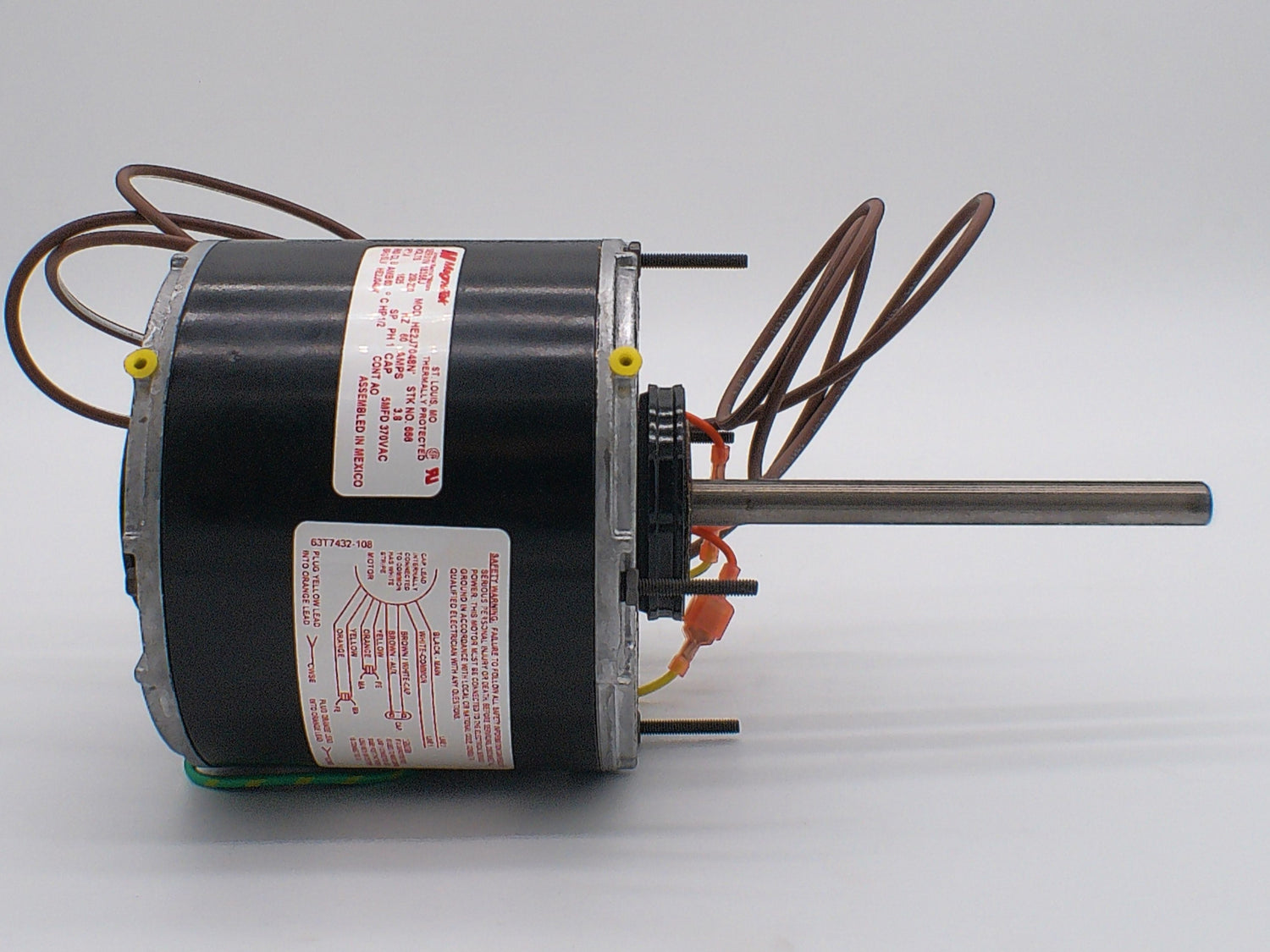

HE2J7048, Magnetek, 1/2Hp, 1625 Rpm, 208-230 Volts, Frame: F48Y,

HE2J7048, stock no. 666, Magnetek,

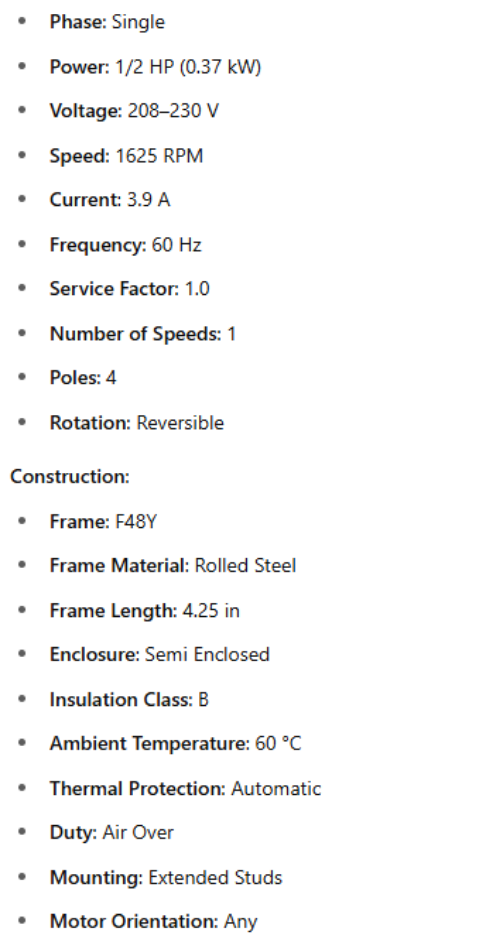

• Phase: Single

• Power: 1/2 HP (0.37 kW)

• Voltage: 208–230 V

• Speed: 1625 RPM

• Current: 3.9 A

• Frequency: 60 Hz

• Service Factor: 1.0

• Number of Speeds: 1

• Poles: 4

• Rotation: Reversible

Construction:

• Frame: F48Y

• Frame Material: Rolled Steel

• Frame Length: 4.25 in

• Enclosure: Semi Enclosed

• Insulation Class: B

• Ambient Temperature: 60 °C

• Thermal Protection: Automatic

• Duty: Air Over

• Mounting: Extended Studs

• Motor Orientation: Any

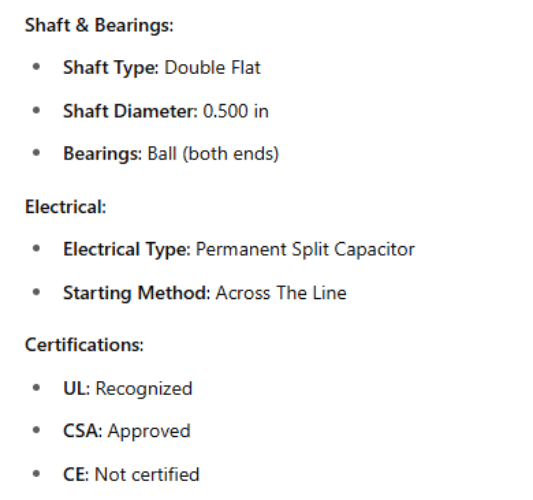

Shaft & Bearings:

• Shaft Type: Double Flat

• Shaft Diameter: 0.500 in

• Bearings: Ball (both ends)

Electrical:

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

Certifications:

• UL: Recognized

• CSA: Approved

• CE: Not certified
