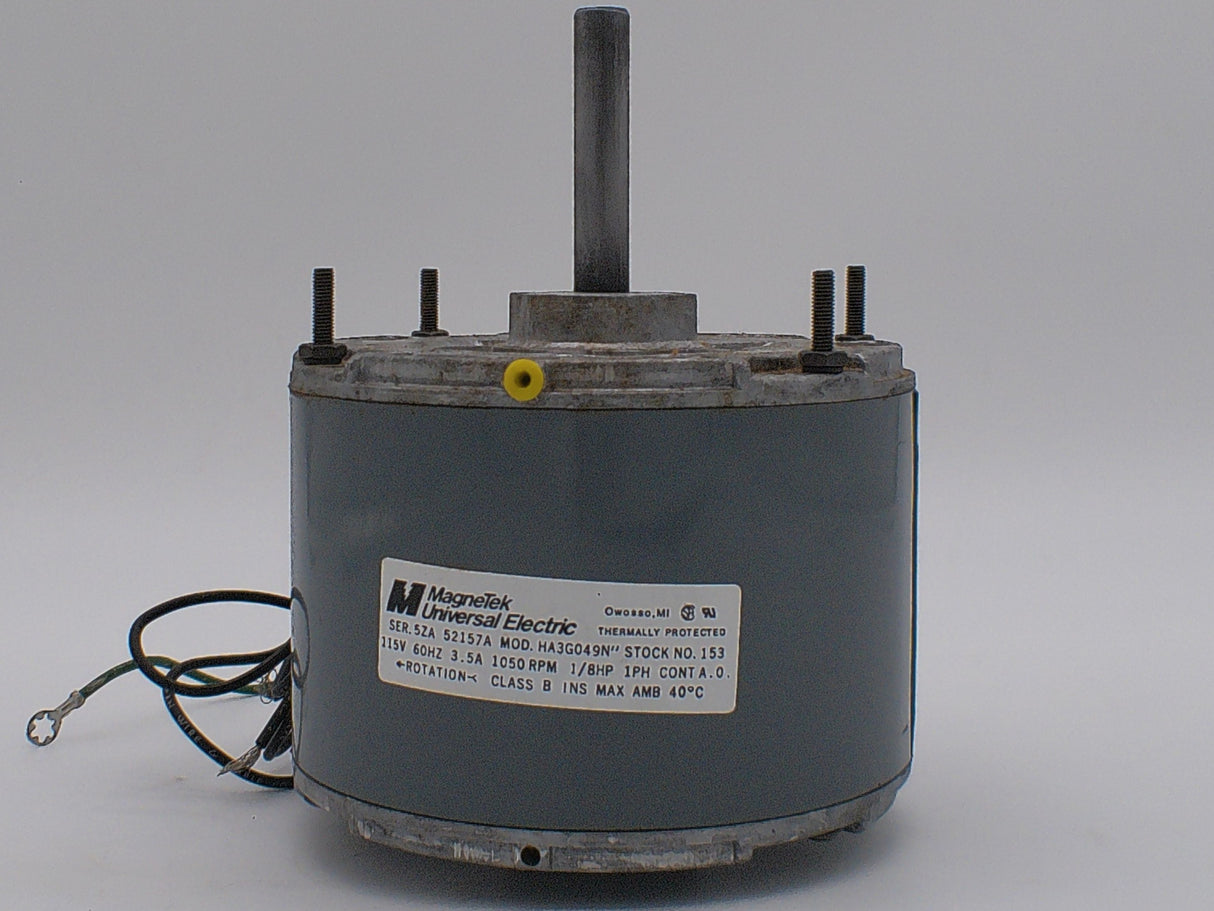

153A, HA3G049, Magnetek, 1/8Hp, 1050 Rpm, 115 Volts, Frame: F48Y, Tefc,

153, 153A, Century, HA3G049, SER 5ZA 52157A, Magnetek

• Phase: Single-phase

• Output Power: 1/8 HP (0.10 kW)

• Voltage: 115 V

• Frequency: 60 Hz

• Current: 1.8 A

• Speed: 1050 RPM

• Service Factor: 1.0

Construction & Design:

• Frame Size: F48Y

• Frame Material: Rolled Steel

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Insulation Class: B

• Ambient Temperature Rating: 40 °C

• Mounting: Round belly band

• Motor Orientation: Horizontal

Electrical Characteristics:

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across the Line

• Poles: 6

• Number of Speeds: 1

• Rotation: Counterclockwise Lead End (CCWLE)

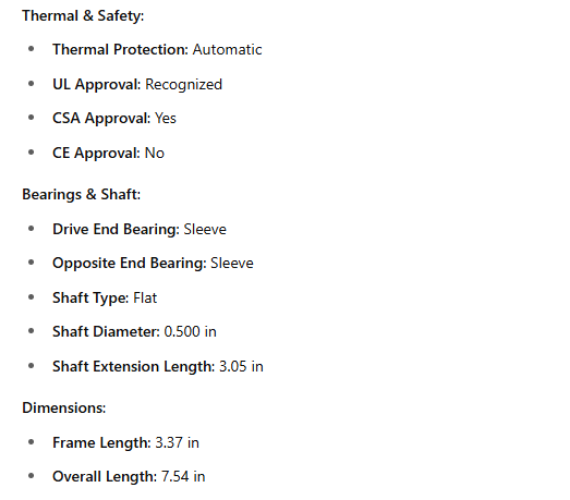

Thermal & Safety:

• Thermal Protection: Automatic

• UL Approval: Recognized

• CSA Approval: Yes

• CE Approval: No

Bearings & Shaft:

• Drive End Bearing: Sleeve

• Opposite End Bearing: Sleeve

• Shaft Type: Flat

• Shaft Diameter: 0.500 in

• Shaft Extension Length: 3.05 in

Dimensions:

• Frame Length: 3.37 in

• Overall Length: 7.54 in

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Extended Studs Shaft End, Resilient Ring Mounting
