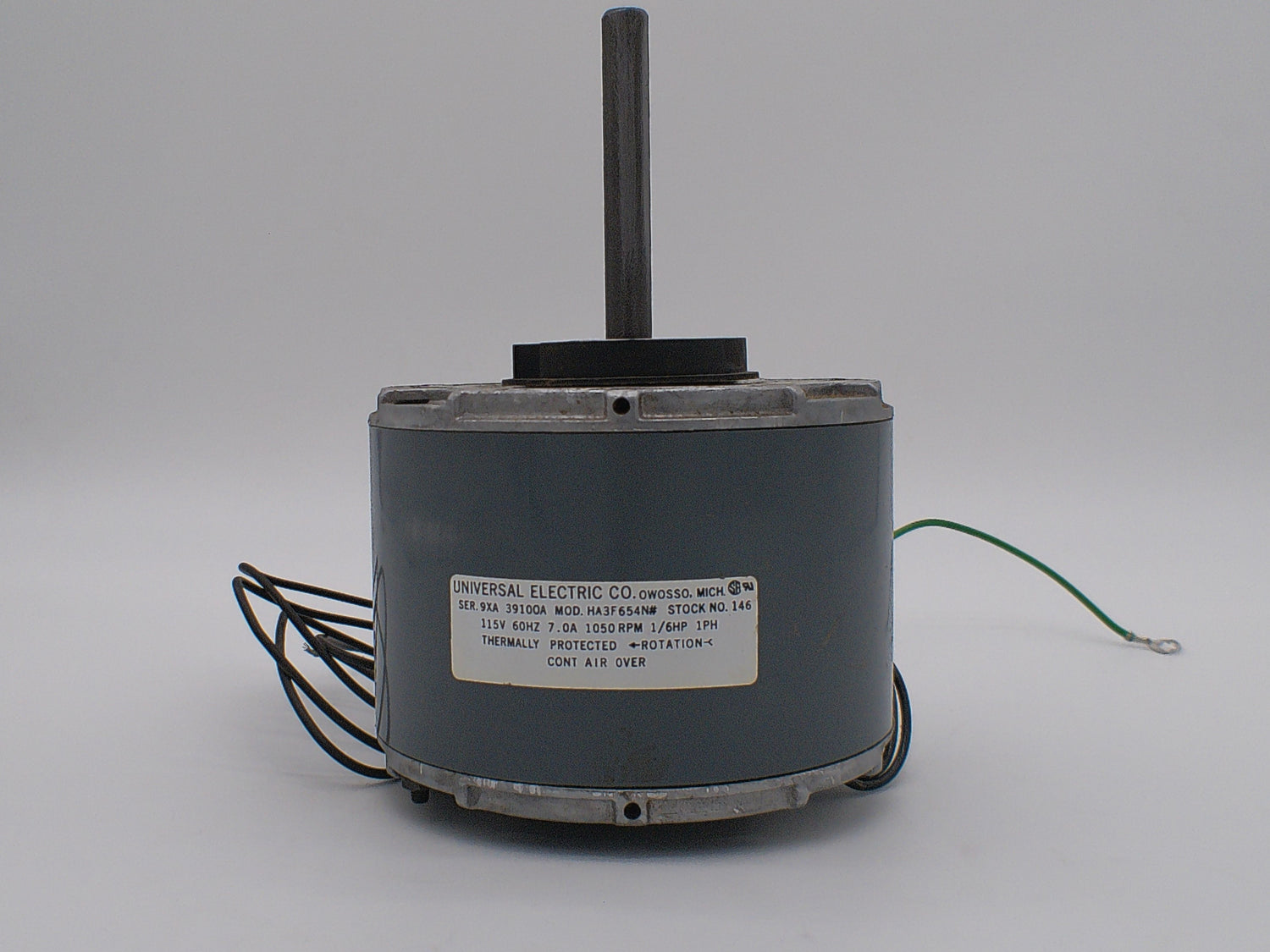

HA3F654, Universal, 1/6Hp, 1050 Rpm, 115 V, Frame: 48, Open air over,

HA3F654, SER. 9XA 39100A, stock no. 146, Universal Electrics Co.

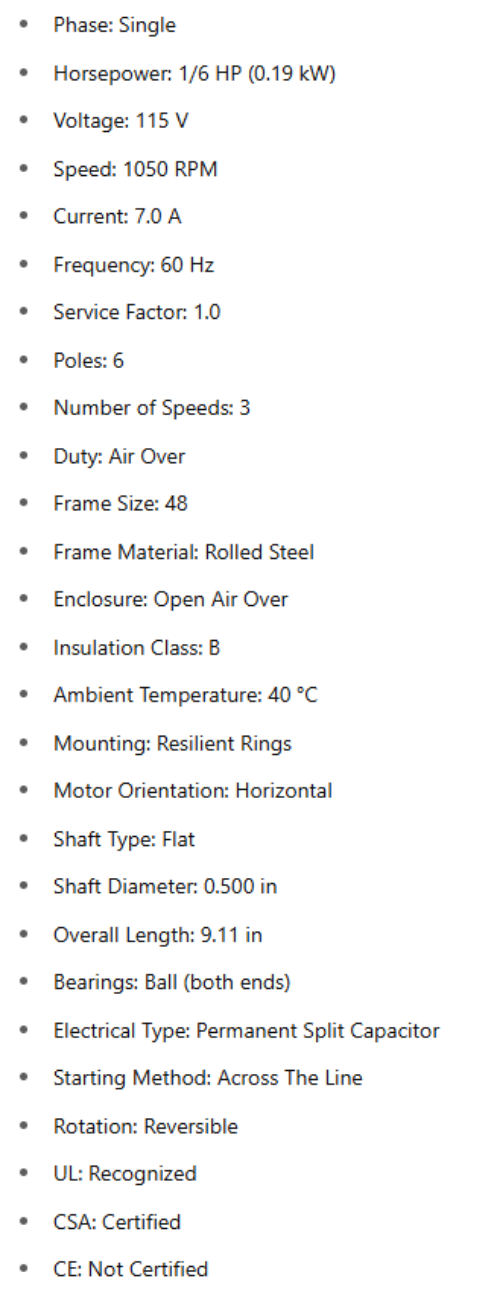

• Phase: Single

• Horsepower: 1/6 HP (0.19 kW)

• Voltage: 115 V

• Speed: 1050 RPM

• Current: 7.0 A

• Frequency: 60 Hz

• Service Factor: 1.0

• Poles: 6

• Number of Speeds: 3

• Duty: Air Over

• Frame Size: 48

• Frame Material: Rolled Steel

• Enclosure: Open Air Over

• Insulation Class: B

• Ambient Temperature: 40 °C

• Mounting: Resilient Rings

• Motor Orientation: Horizontal

• Shaft Type: Flat

• Shaft Diameter: 0.500 in

• Overall Length: 9.11 in

• Bearings: Ball (both ends)

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

• Rotation: Reversible

• UL: Recognized

• CSA: Certified

• CE: Not Certified
