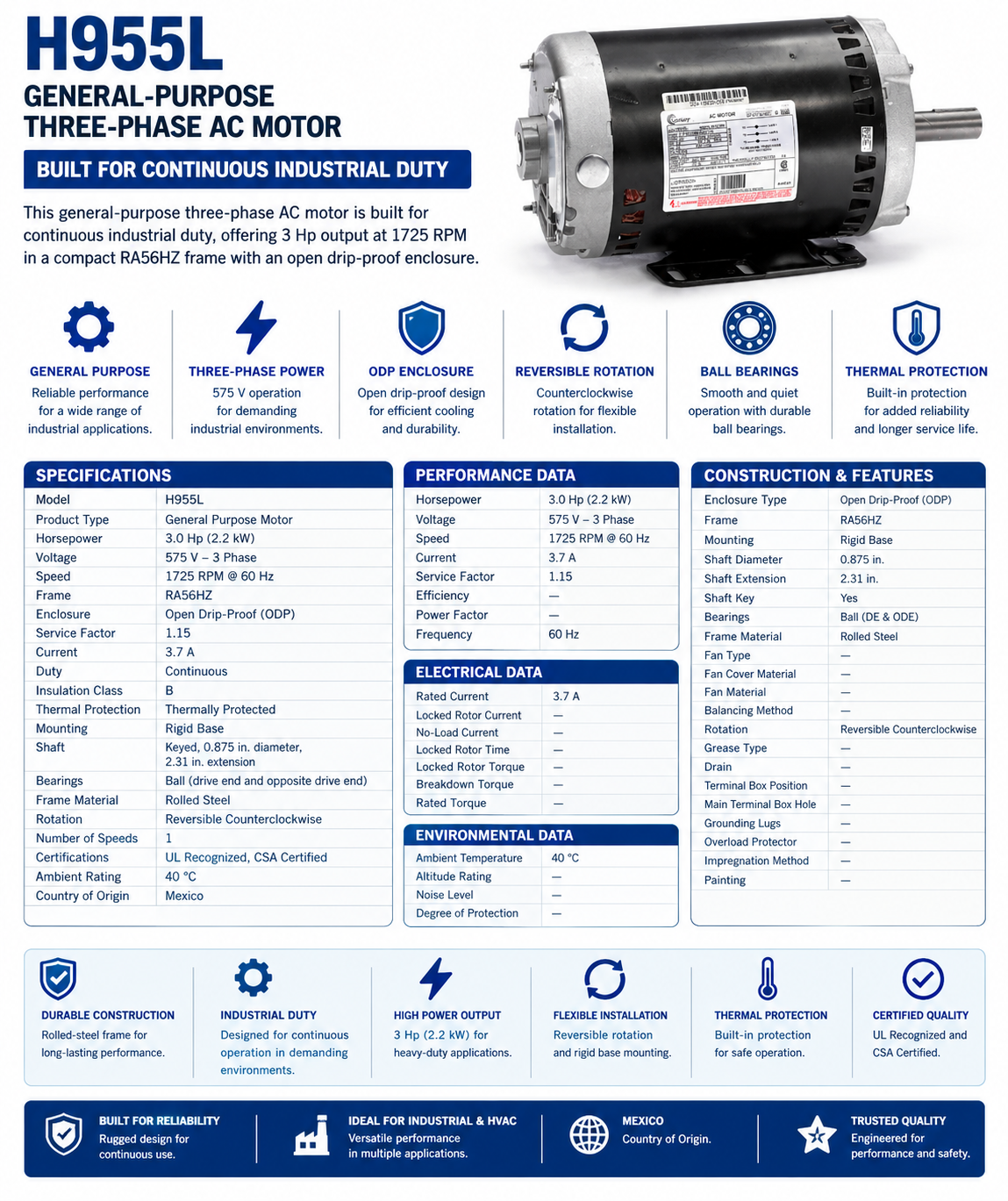

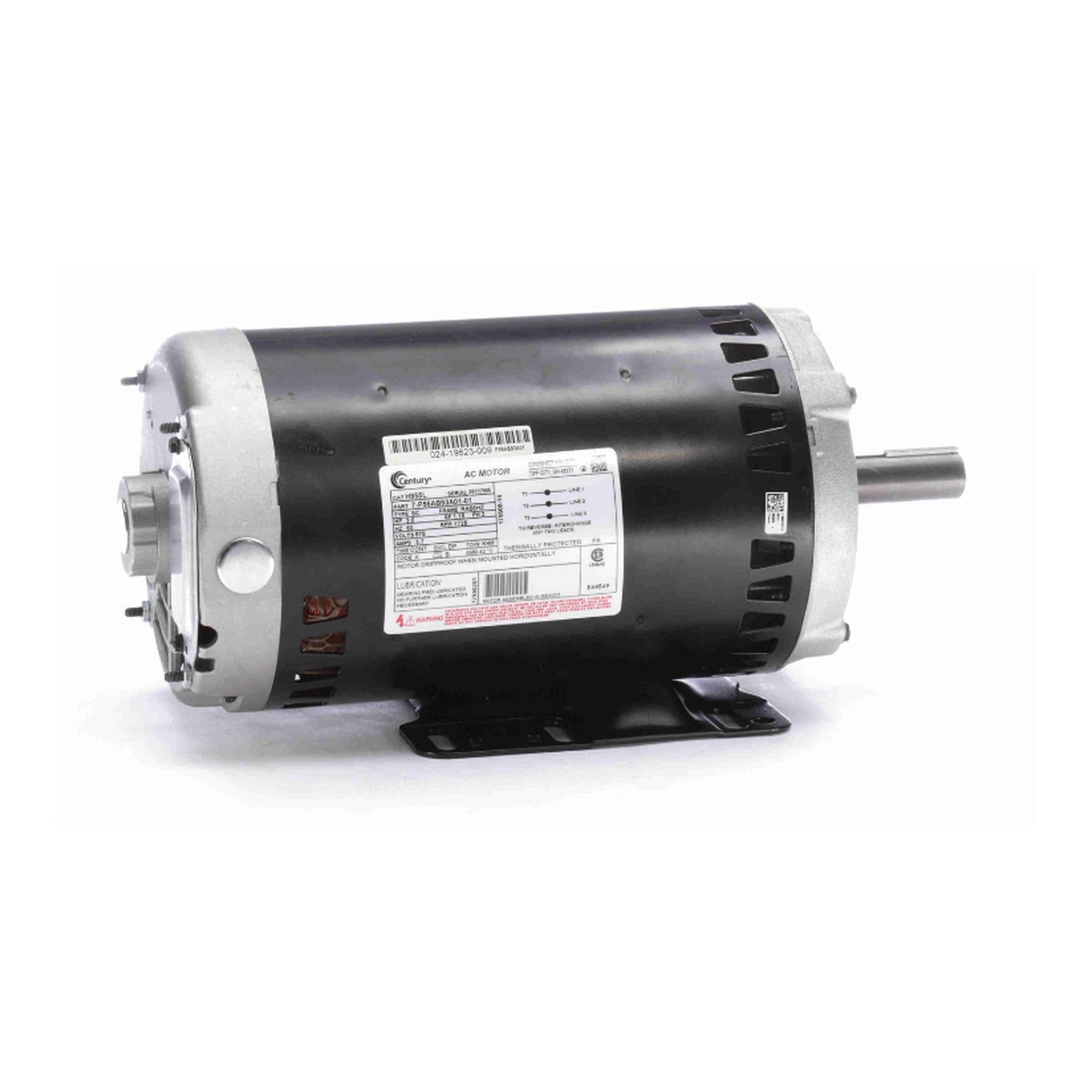

H955L, 3.0 Hp, 1725 RPM, 575 V, 3 Ph, 60 Hz, Open Drip‑Proof (ODP), Frame RA56HZ

This general‑purpose three‑phase AC motor is built for continuous industrial duty, offering 3 Hp output at 1725 RPM in a compact RA56HZ frame with an open drip‑proof enclosure.

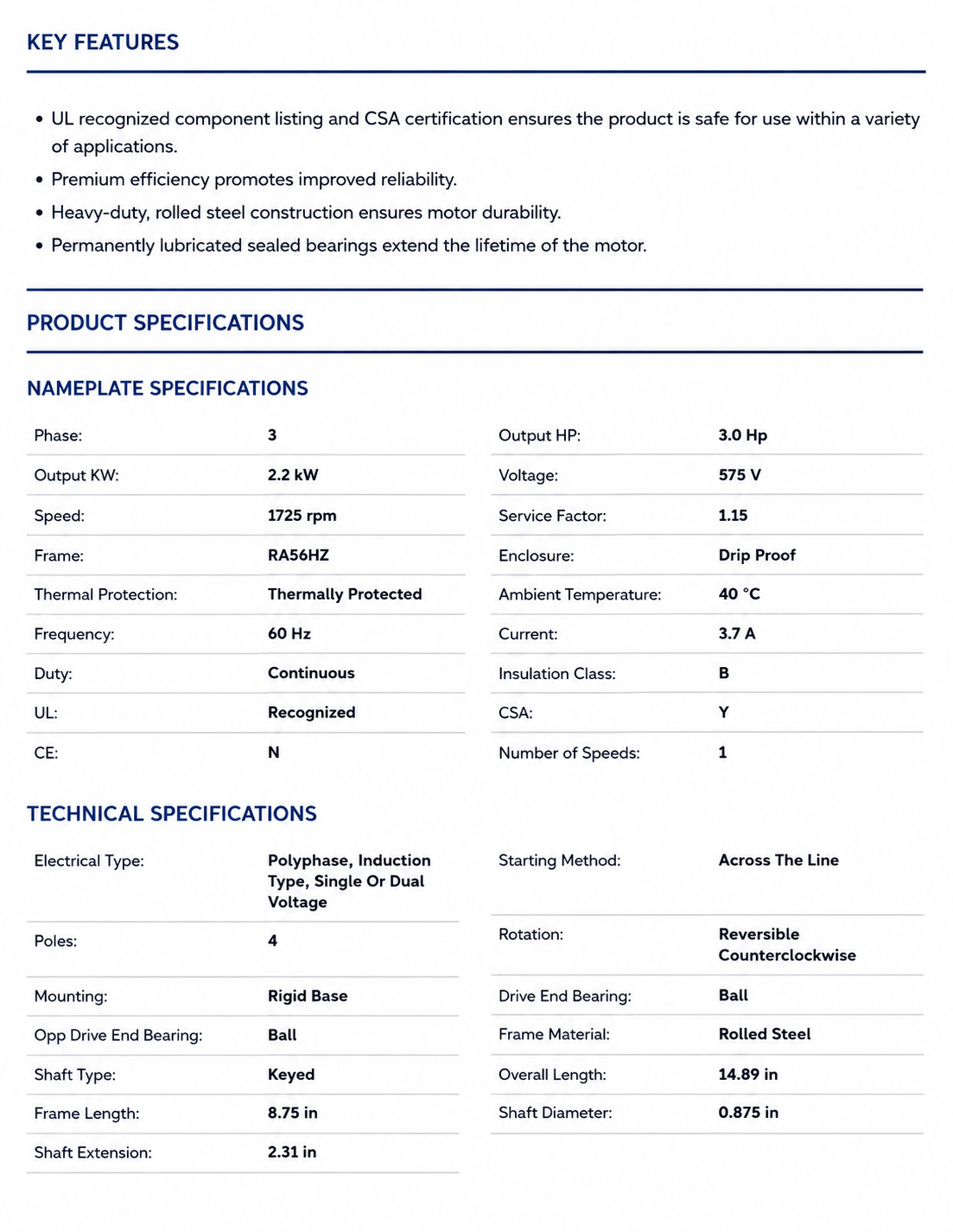

KEY FEATURES

• Model: H955L

• Product Type: General Purpose Motor

• Horsepower: 3.0 Hp (2.2 kW)

• Voltage: 575 V – 3 Phase

• Speed: 1725 RPM @ 60 Hz

• Frame: RA56HZ

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1.15

• Current: 3.7 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Mounting: Rigid Base

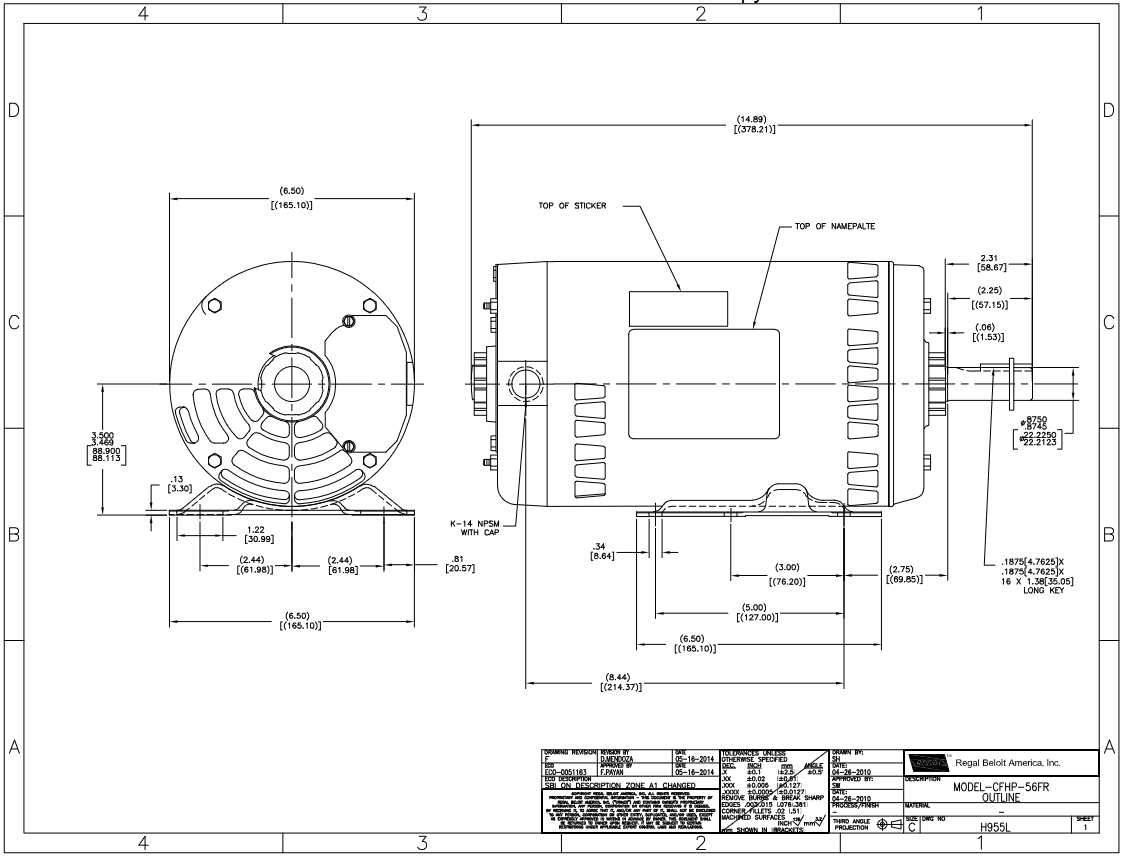

• Shaft: Keyed, 0.875 in diameter, 2.31 in extension

• Bearings: Ball (drive end and opposite drive end)

• Frame Material: Rolled Steel

• Rotation: Reversible Counterclockwise

• Number of Speeds: 1

• Certifications: UL Recognized, CSA Certified

• Ambient Rating: 40 °C

This motor delivers reliable continuous‑duty performance with robust rolled‑steel construction and built‑in thermal protection, making it suitable for demanding industrial and HVAC applications.

Cross References:

A.O. Smith: 7-176059-02, H955, P56AB66C71P, P56AB93A01, P56AC38A01, P56P4DL575

Carrier: C728408P01, HD58DL575, HD58FK576, HD59FK575

Century: 8-151207-01, 150919, 151207, 176059, 353694, H955L, 7-P56AB66C71C-01

Emerson: B63ZZD2G-3514, P063WNG4795015B, P63WNG4795015B, P63ZZDZG3514, P63ZZWNG4795

General Electric (GE): 5K49TN4497, 5K49TN4558, 5K49WM308, 5K49WM4308, 5K49WN4068, 5K49WN4241, 5K49WN4281CX, 5K49WN4308DX, 5K49WN4509, 5K49WN4509Z, 5K49WN4686X, 5K49WN8098, 5K49WN8098A, 5K49ZG8467, 5K49ZG8467X

Lennox: 43G3201, 7176059-02, 717605902, P63ZZDGZ3514, P63ZZDZG-3514

Marathon: F31853, 56T17D15560, 56T17D5509, 56T17D5659, 56T17D5813

Rotom: T2167

Trane: X70410569-010, X70410569020

U.S. Motors: 1089, VUL56T17D5509B

York: 024-19623-009
