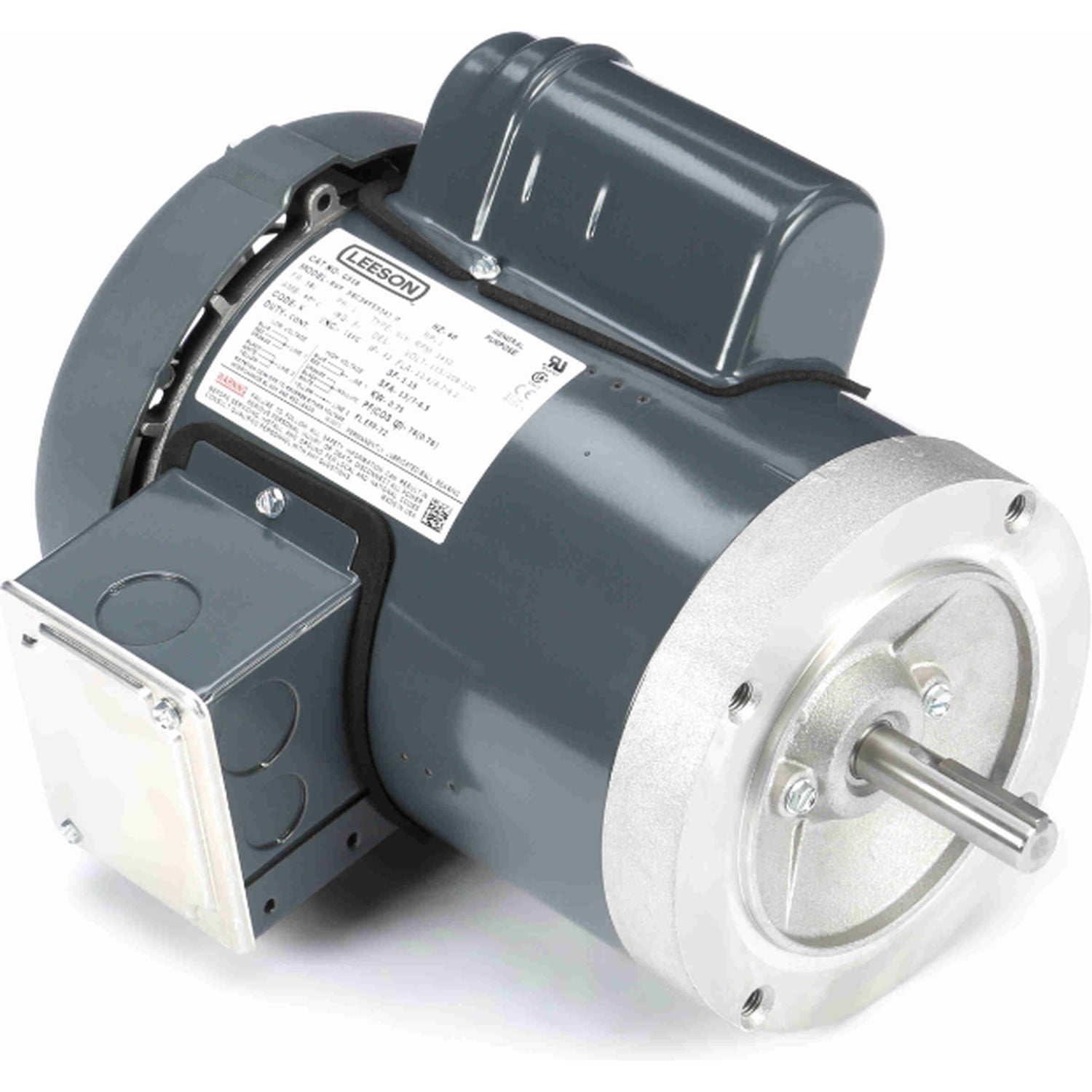

G518, 1 Hp, 3600 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 56C, 056C34F5324

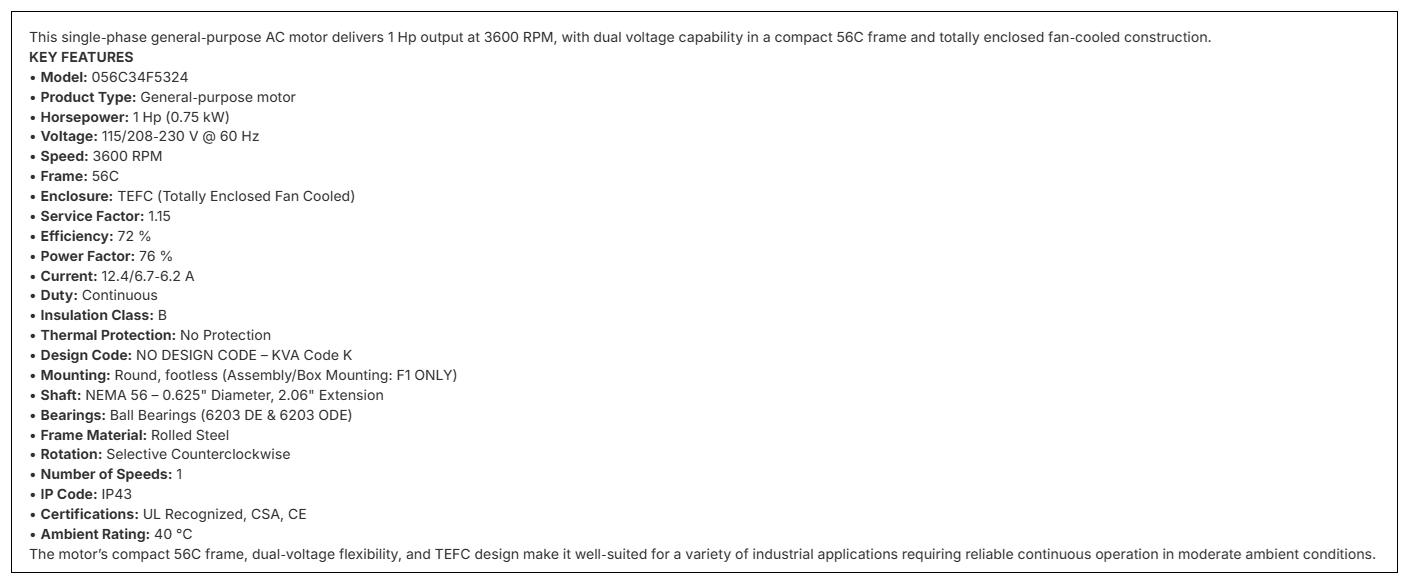

This single‑phase general‑purpose AC motor delivers 1 Hp output at 3600 RPM, with dual voltage capability in a compact 56C frame and totally enclosed fan‑cooled construction.

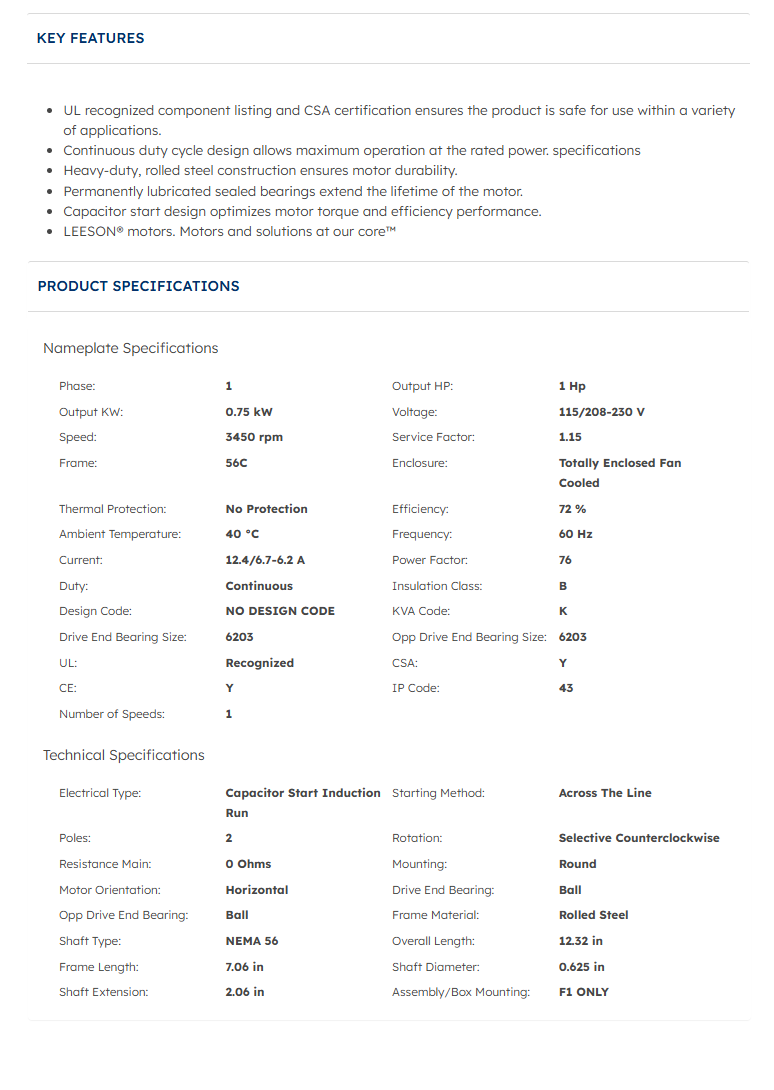

KEY FEATURES

• Model: 056C34F5324

• Product Type: General‑purpose motor

• Horsepower: 1 Hp (0.75 kW)

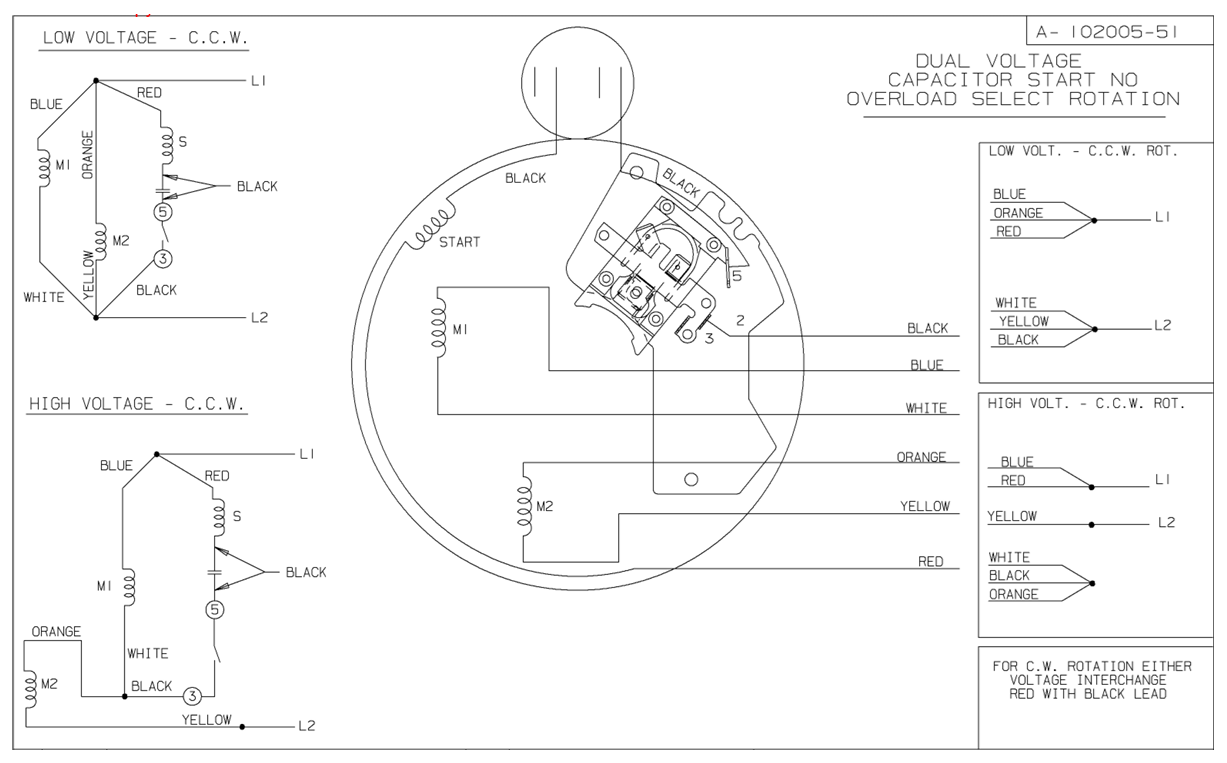

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 3600 RPM

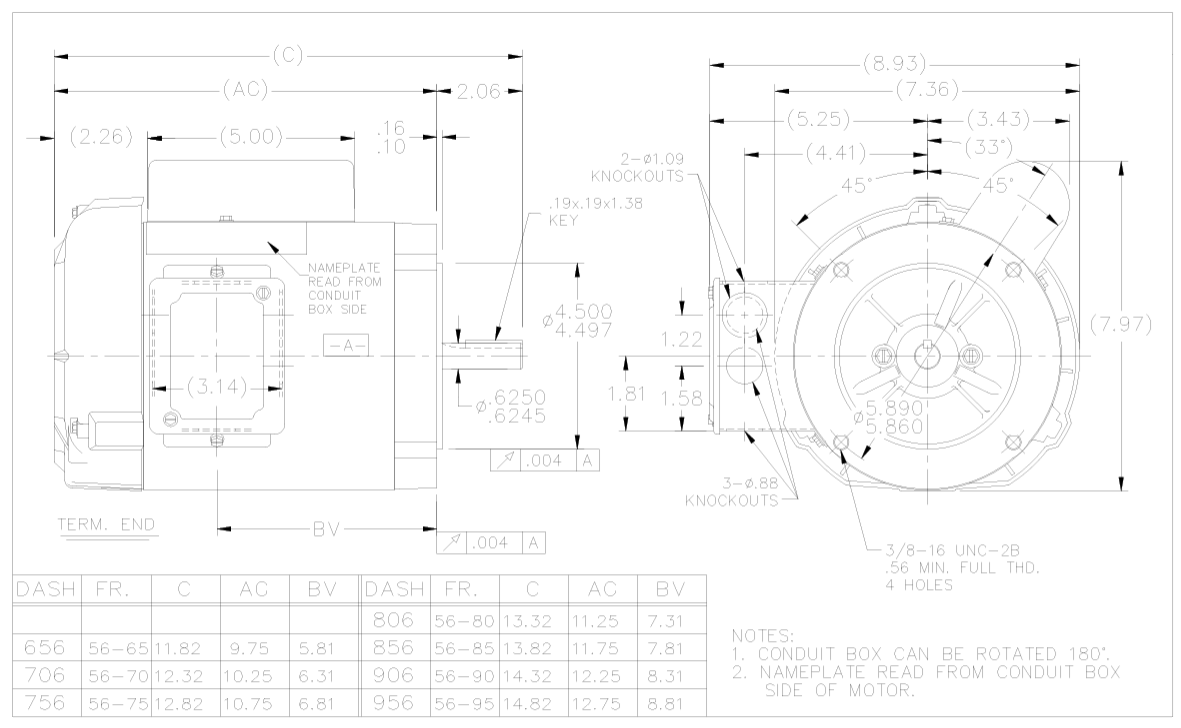

• Frame: 56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 72 %

• Power Factor: 76 %

• Current: 12.4/6.7‑6.2 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: No Protection

• Design Code: NO DESIGN CODE – KVA Code K

• Mounting: Round, footless (Assembly/Box Mounting: F1 ONLY)

• Shaft: NEMA 56 – 0.625" Diameter, 2.06" Extension

• Bearings: Ball Bearings (6203 DE & 6203 ODE)

• Frame Material: Rolled Steel

• Rotation: Selective Counterclockwise

• Number of Speeds: 1

• IP Code: IP43

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C

The motor’s compact 56C frame, dual‑voltage flexibility, and TEFC design make it well‑suited for a variety of industrial applications requiring reliable continuous operation in moderate ambient conditions.
