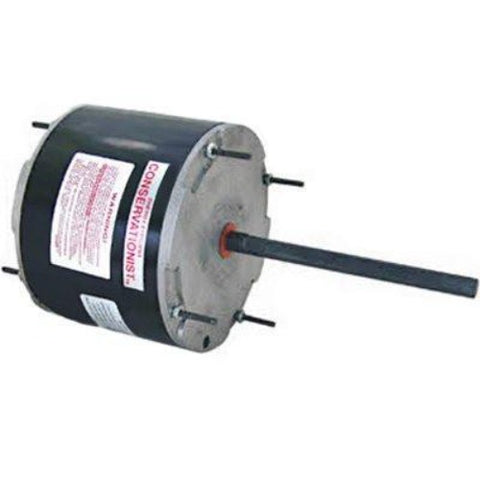

FS1026, CENTURY, 7126-1434 FASCO, 1/4 HP, 1075/850 RPM, 208-230V, 1PH, CONDENSEUR FAN MOTORS

FS1026,

REPLACE FASCO 7126-1434, 71261434,

• Horsepower :1/4
• Voltage :208-230
• Amps :1.80
• RPM :1075
• Frequency :60 Hz
• Length :4-3/8"
• "C" Dim. :10-3/8"
• Enclosure :Totally Enclosed Air Over
• Shaft Dim. :1/2" x 6.00"
• Type :Permanent Split Capacitor
• Speeds :2
• Diameter :5-5/8"
• Frame :48Y
• Bearings :Ball
• Rotation :Reversible
• Protector :Automatic
• Service Factor :1.00
• Phase :1
• Ambient Temp. :60°C
• Capacitor Rating :5MFD-370V
• Feature(s) :Class 'B' Insulation,Thru-Bolts
• Weight (lbs.) :13
