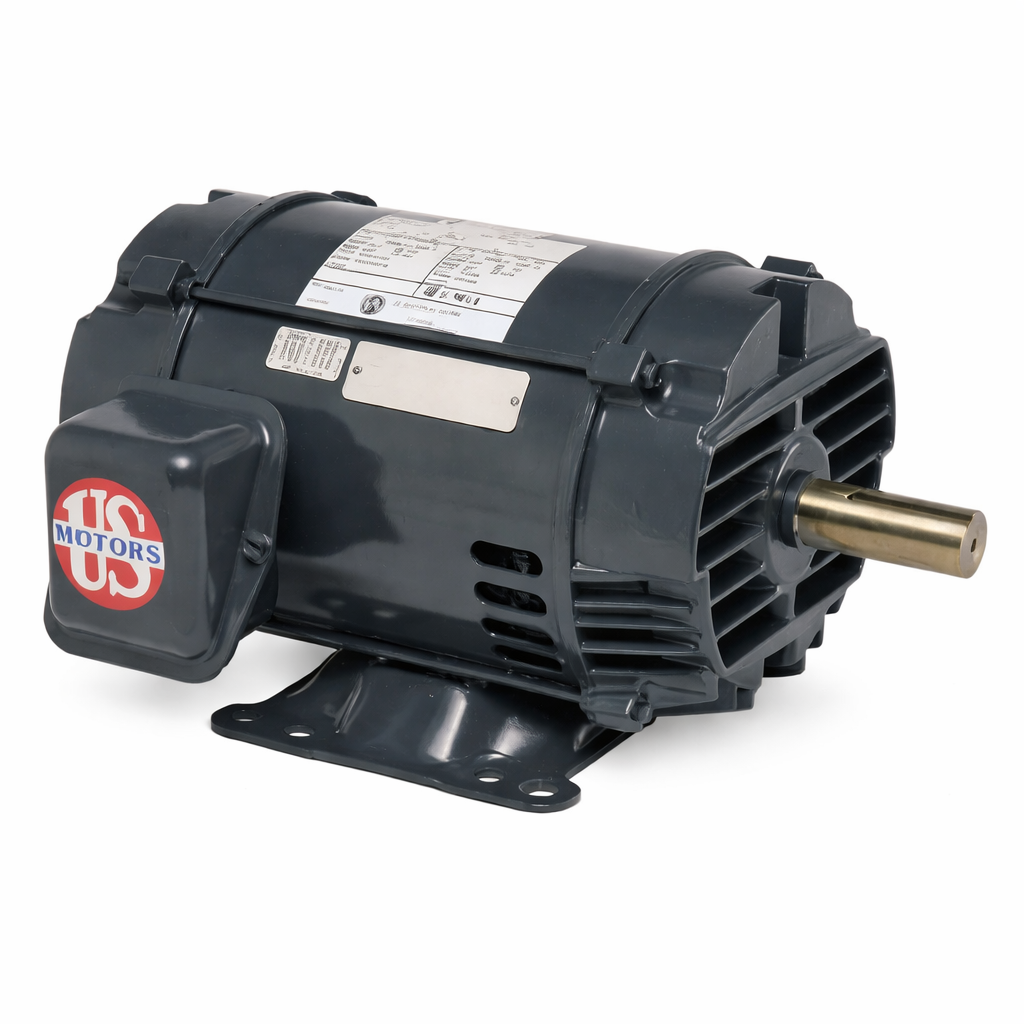

FF60E2ES, 60/50Hp, 1785/1485 RPM, 230/460 & 200/400V, 3PH, 60/50Hz, Frame 364TS, ODP, HH24

FF60E2ES, 60/50Hp, 1785/1485 RPM, 230/460 & 200/400V, 3PH, 60/50Hz, Frame 364TS, ODP, HH24

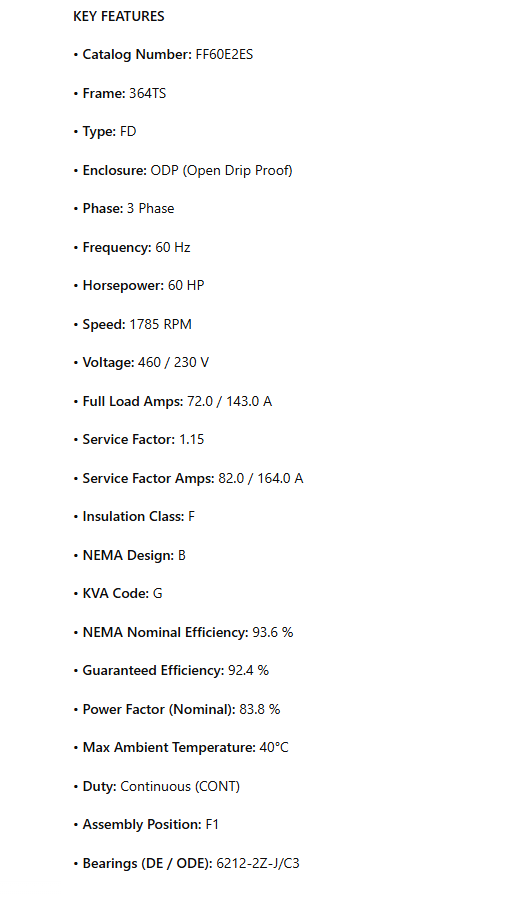

KEY FEATURES

• Catalog Number: FF60E2ES

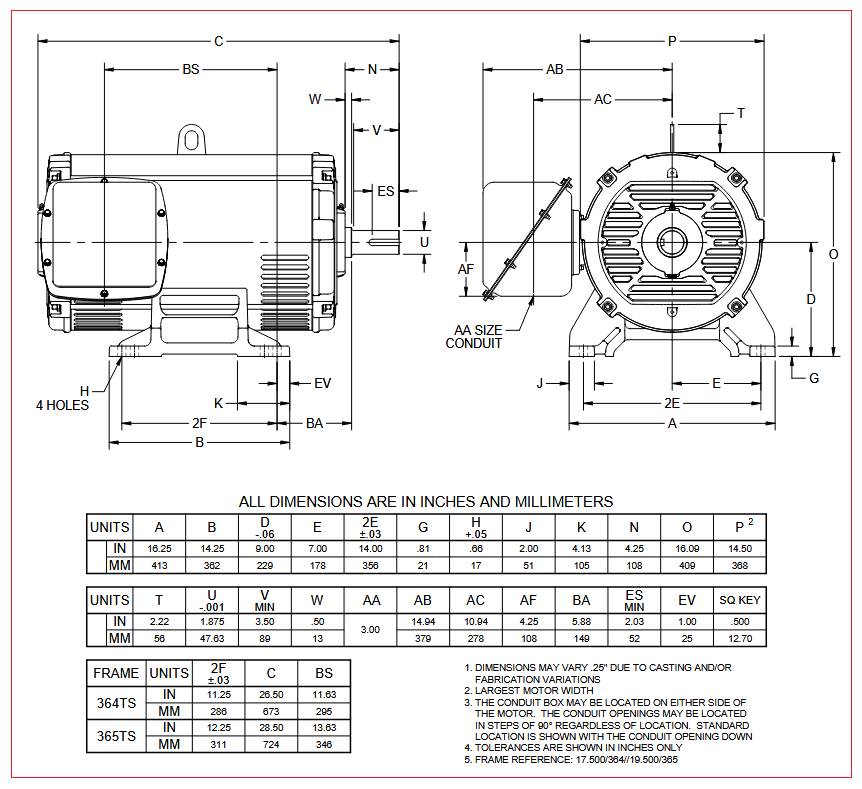

• Frame: 364TS

• Type: FD

• Enclosure: ODP (Open Drip Proof)

• Phase: 3 Phase

• Frequency: 60 Hz

• Horsepower: 60 HP

• Speed: 1785 RPM

• Voltage: 460 / 230 V

• Full Load Amps: 72.0 / 143.0 A

• Service Factor: 1.15

• Service Factor Amps: 82.0 / 164.0 A

• Insulation Class: F

• NEMA Design: B

• KVA Code: G

• NEMA Nominal Efficiency: 93.6 %

• Guaranteed Efficiency: 92.4 %

• Power Factor (Nominal): 83.8 %

• Max Ambient Temperature: 40°C

• Duty: Continuous (CONT)

• Assembly Position: F1

• Bearings (DE / ODE): 6212-2Z-J/C3
