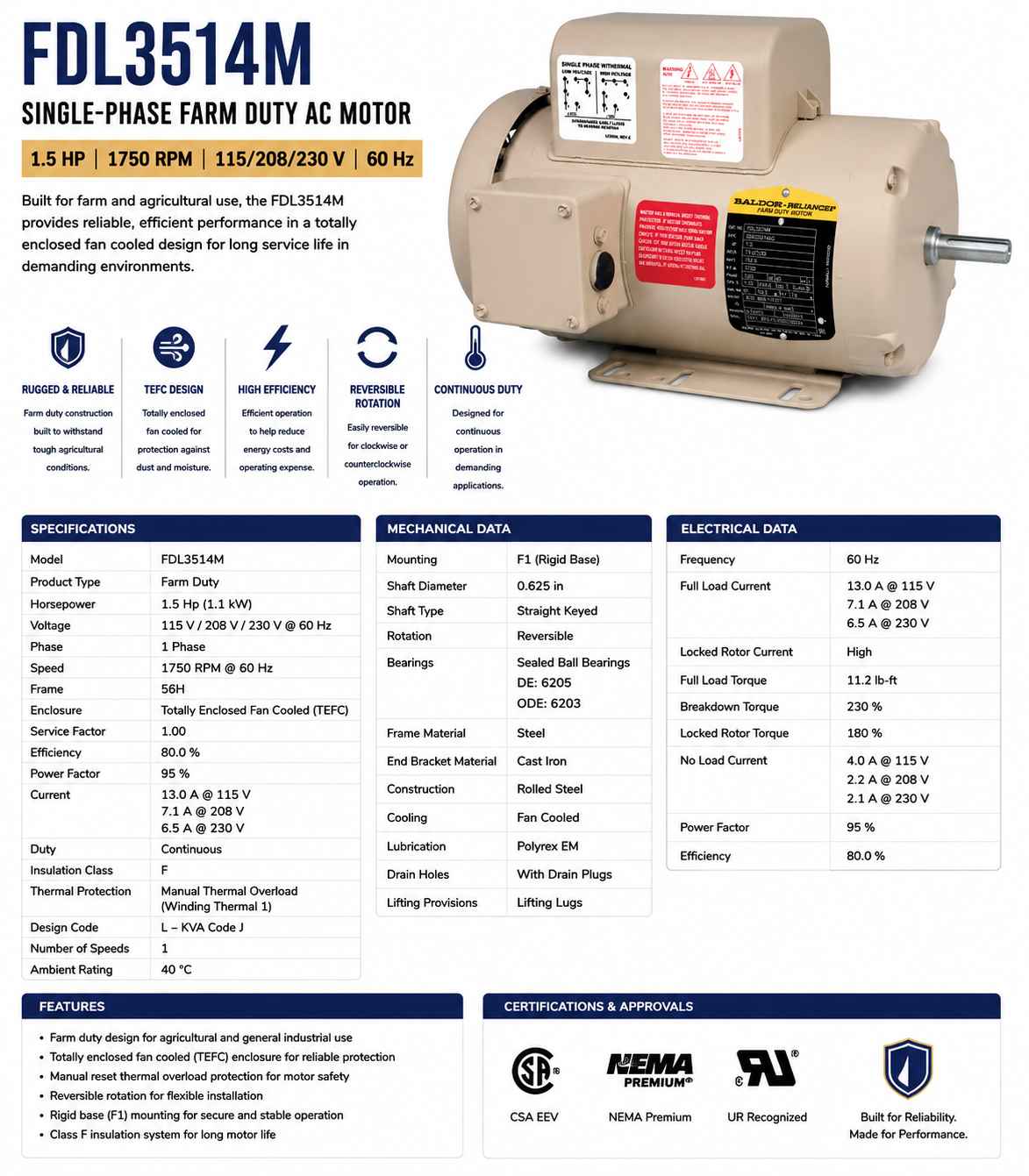

FDL3514M, 1.5 Hp, 1750 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 56H

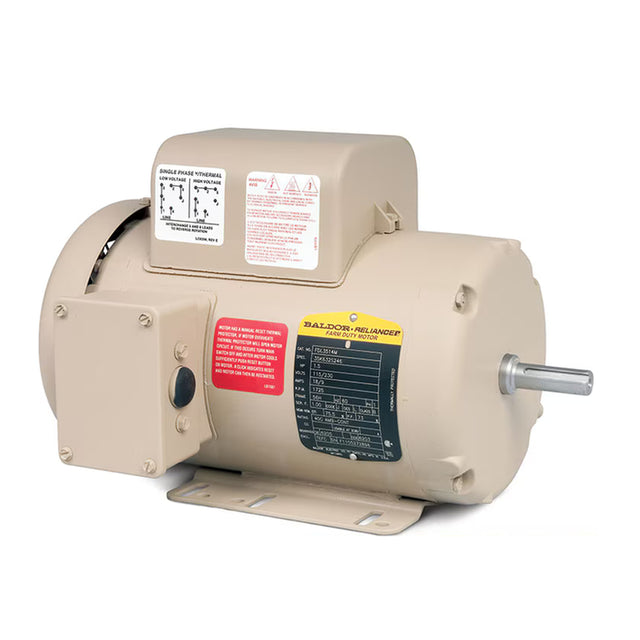

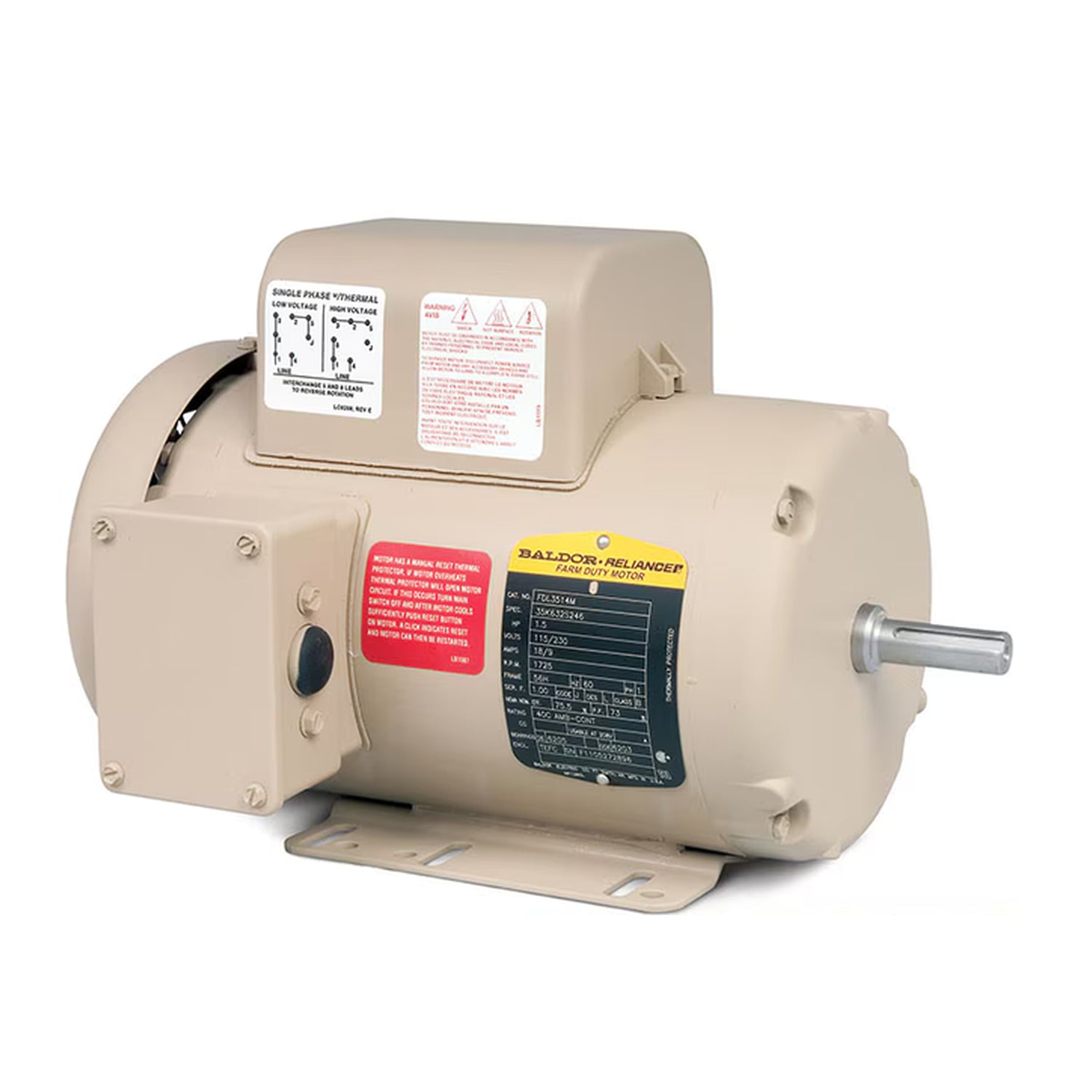

This single‑phase farm‑duty AC motor delivers 1.5 Hp at 1750 RPM in a compact 56H frame with totally enclosed fan‑cooled (TEFC) construction, suitable for agricultural and general industrial applications.

KEY FEATURES

• Model: FDL3514M

• Product Type: FARM DUTY

• Horsepower: 1.5 Hp

• Voltage: 115 V / 208 V / 230 V @ 60 Hz

• Speed: 1750 RPM @ 60 Hz

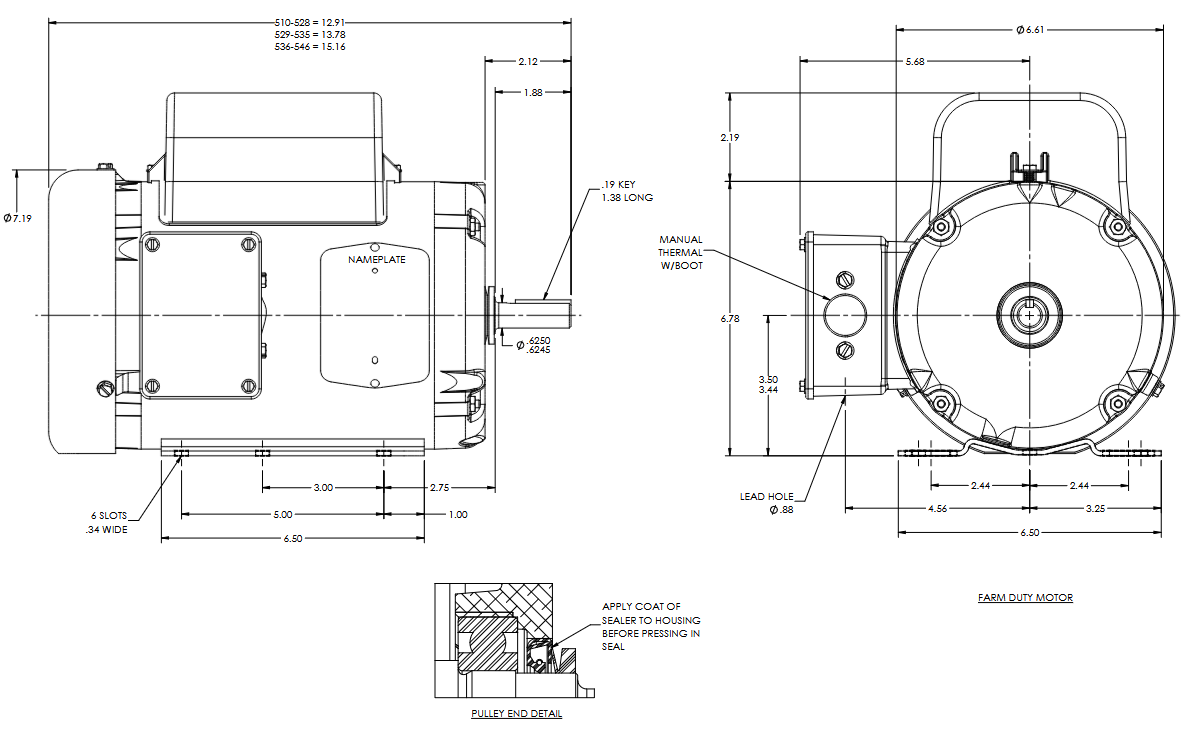

• Frame: 56H

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.00

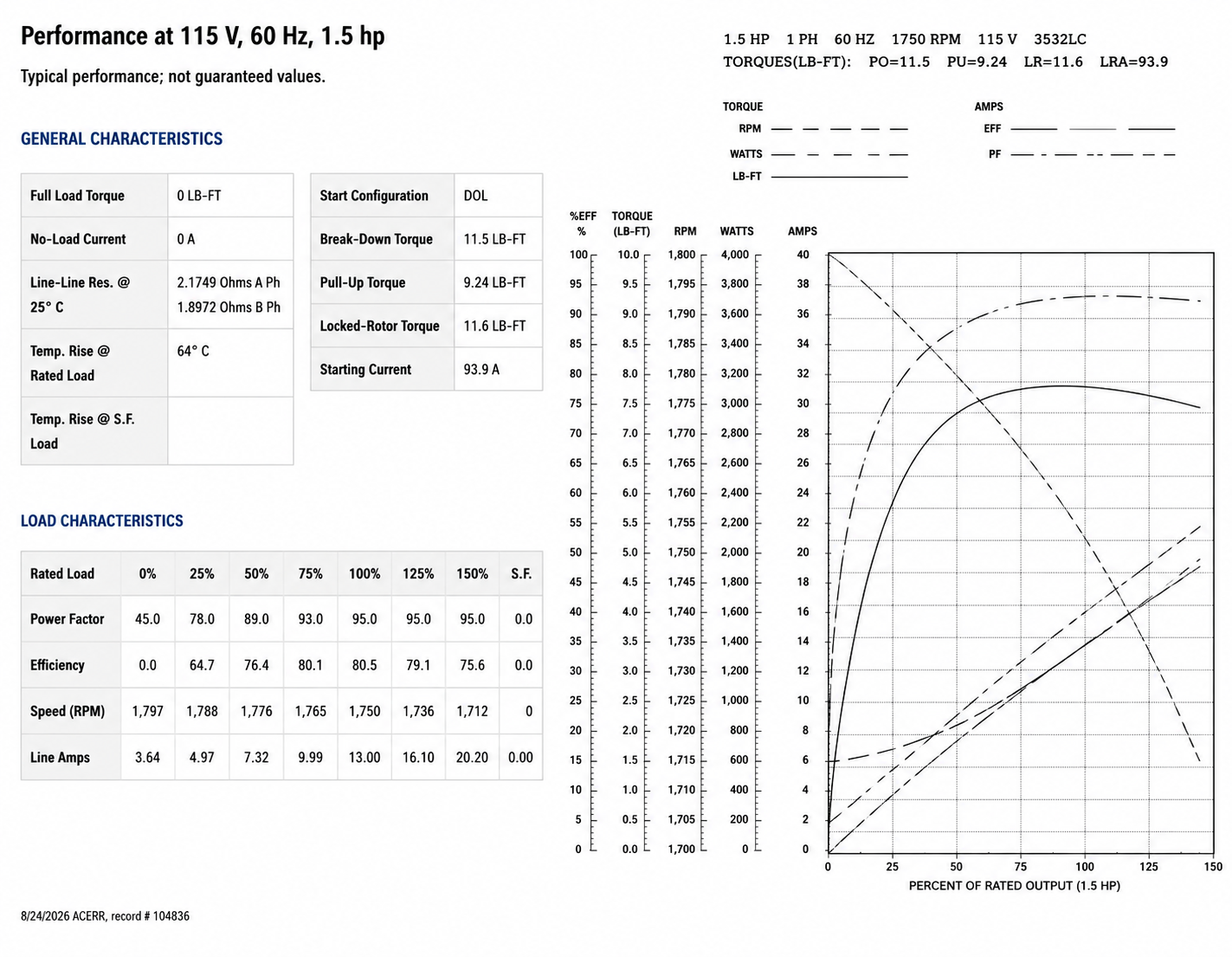

• Efficiency: 80.0 %

• Power Factor: 95

• Current: 13.0 A @ 115 V; 7.1 A @ 208 V; 6.5 A @ 230 V

• Duty: Continuous

• Insulation Class: F

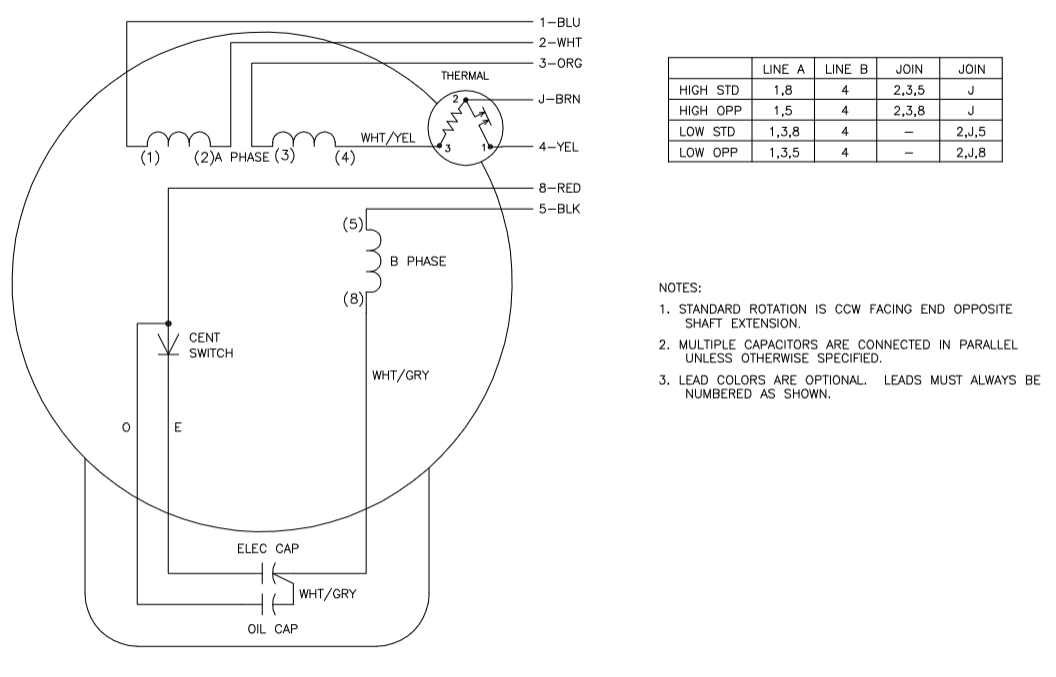

• Thermal Protection: Manual thermal overload (winding thermal 1)

• Design Code: L – KVA Code J

• Mounting: F1 (rigid base)

• Shaft: 0.625" diameter, reversible rotation

• Bearings: Sealed ball bearings (6205 drive end, 6203 opposite drive end)

• Frame Material: Steel

• Rotation: Reversible

• Ambient Rating: 40 °C
