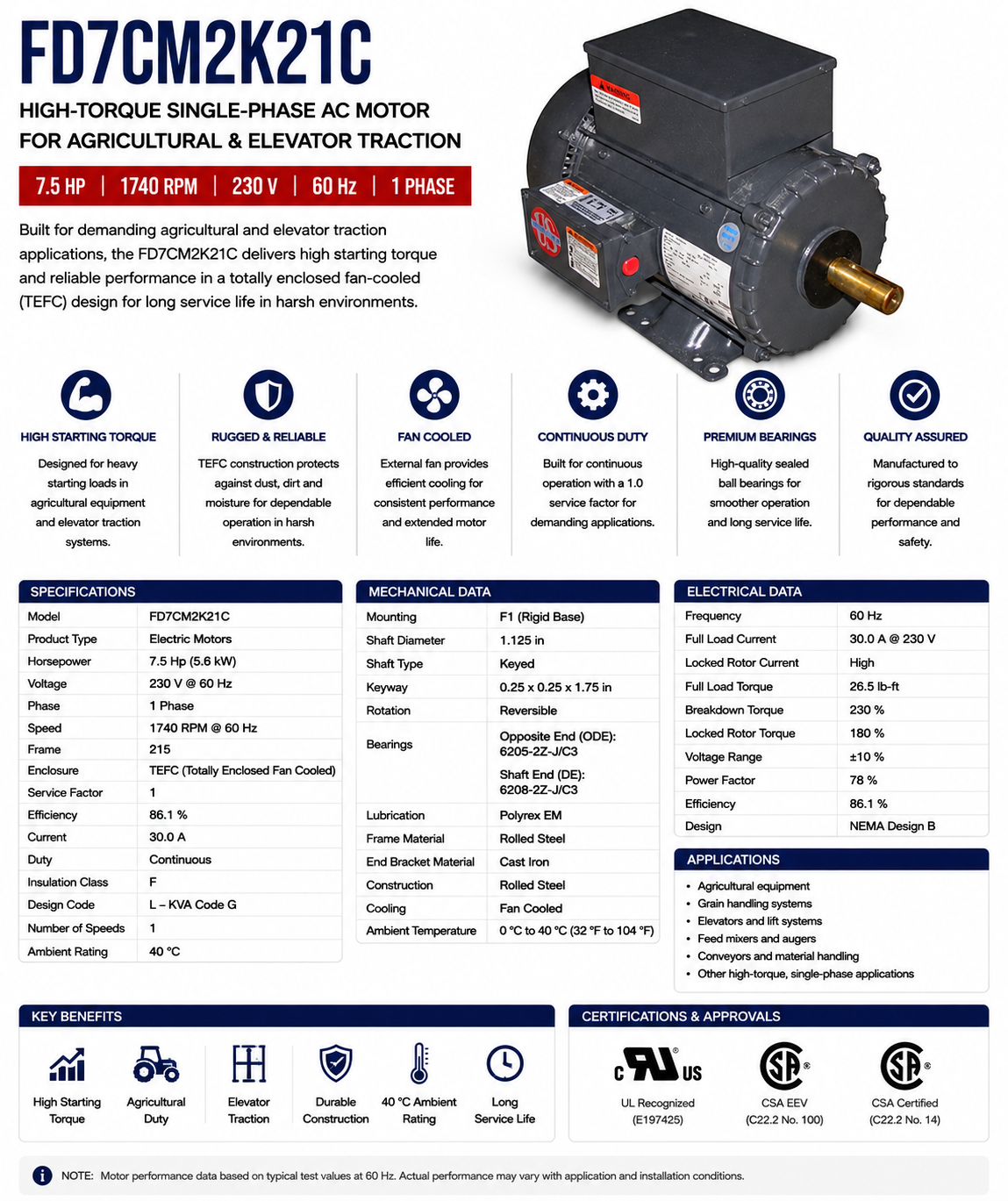

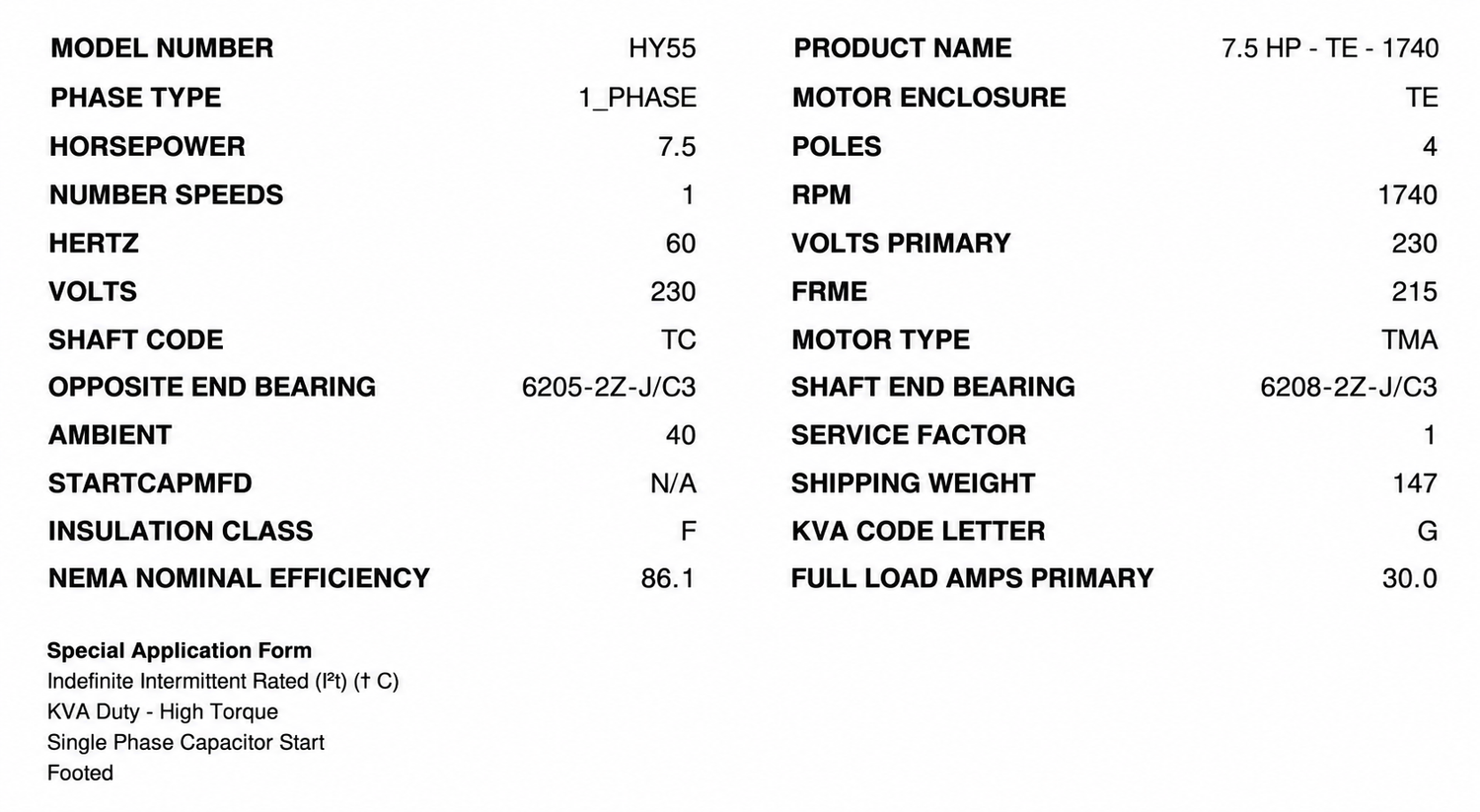

FD7CM2K21C, 7.5Hp, 1740RPM, 230V, 1Ph, 60Hz, TEFC, Frame 215, HY55

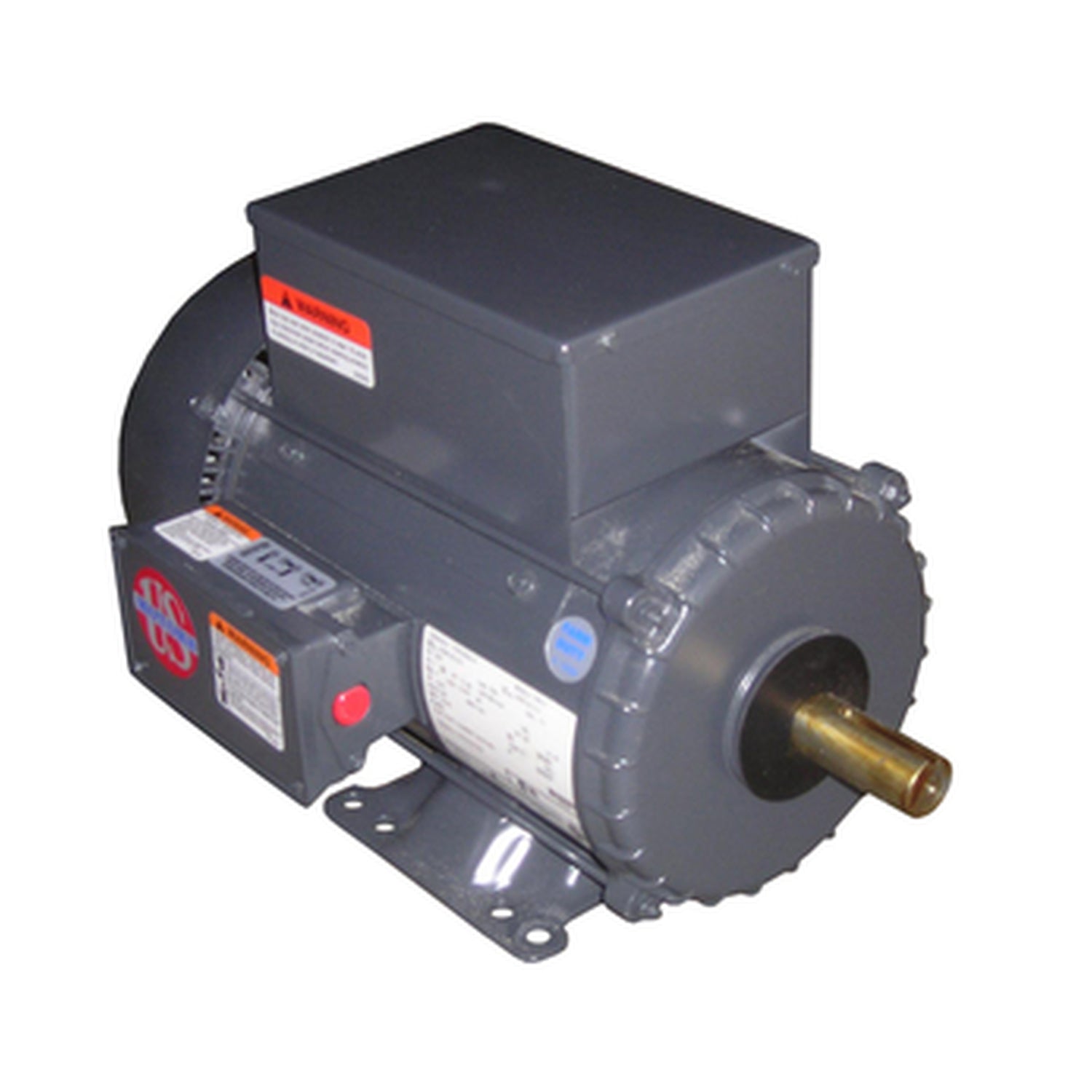

This single-phase, totally enclosed fan-cooled (TEFC) motor is engineered for high-torque agricultural and elevator traction applications, delivering 7.5 horsepower at 1740 RPM in a compact 215 frame.

KEY FEATURES

• Model: FD7CM2K21C

• Product Type: Electric Motors

• Horsepower: 7.5 Hp

• Voltage: 230 V @ 60 Hz

• Speed: 1740 RPM @ 60 Hz

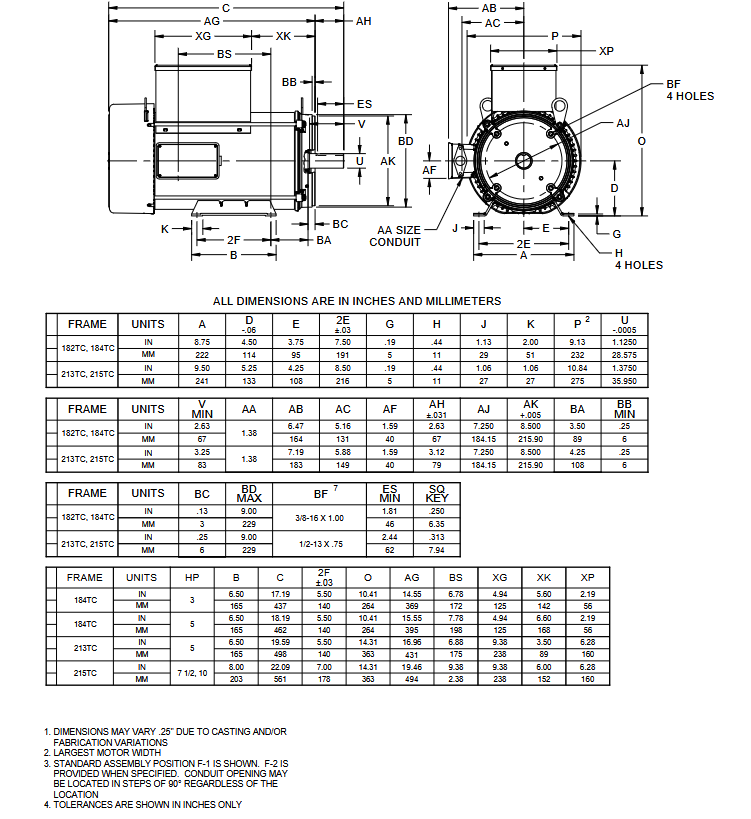

• Frame: 215

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1

• Efficiency: 86.1%

• Current: 30.0 A

• Duty: Continuous

• Insulation Class: F

• Design Code: L – KVA Code G

• Number of Speeds: 1

• Bearings: Opposite End: 6205-2Z-J/C3; Shaft End: 6208-2Z-J/C3

• Ambient Rating: 40°C
