FD34CM2PZY, Auger Duty Motors, 3/4Hp, 1725/1425 RPM, 115/230V, 1PH, 50/60Hz, TEFC, Fr. 56YZ, C063GJK4540025B

FD34CM2PZY, Auger Duty Motors, 3/4Hp, 1725/1425 RPM, 115/230V, 1PH, 50/60Hz, TEFC, Fr. 56YZ, C063GJK4540025B

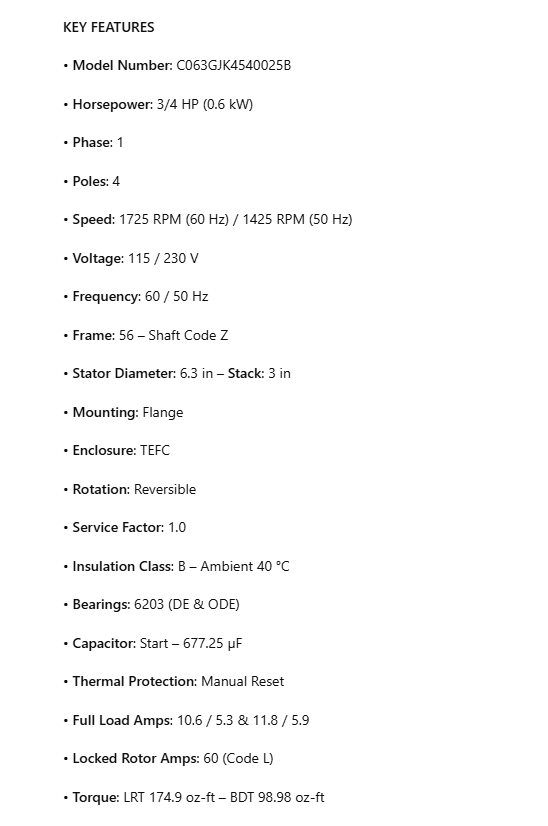

KEY FEATURES

• Model Number: C063GJK4540025B

• Horsepower: 3/4 HP (0.6 kW)

• Phase: 1

• Poles: 4

• Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)

• Voltage: 115 / 230 V

• Frequency: 60 / 50 Hz

• Frame: 56 – Shaft Code Z

• Stator Diameter: 6.3 in – Stack: 3 in

• Mounting: Flange

• Enclosure: TEFC

• Rotation: Reversible

• Service Factor: 1.0

• Insulation Class: B – Ambient 40 °C

• Bearings: 6203 (DE & ODE)

• Capacitor: Start – 677.25 µF

• Thermal Protection: Manual Reset

• Full Load Amps: 10.6 / 5.3 & 11.8 / 5.9

• Locked Rotor Amps: 60 (Code L)

• Torque: LRT 174.9 oz-ft – BDT 98.98 oz-ft
