FD13AA2P4Z9, Poultry Fan Motors, 1/3Hp, 1700 RPM, 115/230V, 1PH, 60Hz, TEAO, Fr. 48YZ, K055LKY3773022B

FD13AA2P4Z9, Poultry Fan Motors, 1/3Hp, 1700 RPM, 115/230V, 1PH, 60Hz, TEAO, Fr. 48YZ, K055LKY3773022B

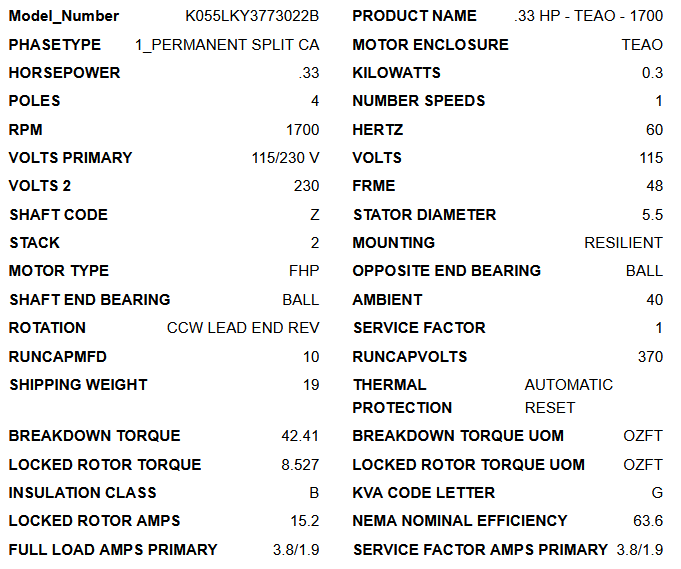

KEY FEATURES

• Model Number: K055LKY3773022B

• Output: 1/3 HP (0.3 kW)

• RPM: 1700

• Voltage: 115/230 V

• Phase: 1 – Permanent Split Capacitor

• Poles: 4

• Frequency: 60 Hz

• Frame: 48

• Mounting: Resilient

• Enclosure: TEAO

• Service Factor: 1.0

• Ambient Temperature: 40°C

• Insulation Class: B

• Efficiency: 63.6 %

• Rotation: CCW Lead End Reverse

• Run Capacitor: 10 µF @ 370 V

• Locked Rotor Torque: 8.527 oz.ft

• Breakdown Torque: 42.41 oz.ft

• Full Load Amps: 3.8 / 1.9 A

• Thermal Protection: Automatic Reset
