WEG  |  SKU : EMN-017255

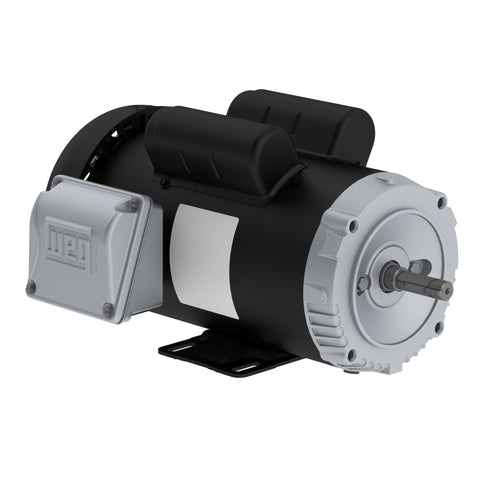

FC.75106W01MFC, Weg, 3/4 Hp, 1170 Rpm,115/208-230V, Fr:56HC, Tefc,

$614.21
shipping

Estimation des frais de livraison

Description

FC.75106W01MFC,Replace Marathon G579,Model 056B11F5302,

Electric Motors

Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 9.40/5.20-4.70 A
L. R. Amperes 60.2/33.3-30.1 A
LRC 6.4x(Code L)
No load current 6.00/2.59-3.00 A
Rated torque 3.32 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 41.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
59.0  67.0  70.0

Power factor

50% 75% 100%
0.58  0.67  0.73

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Industrial polymer
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
