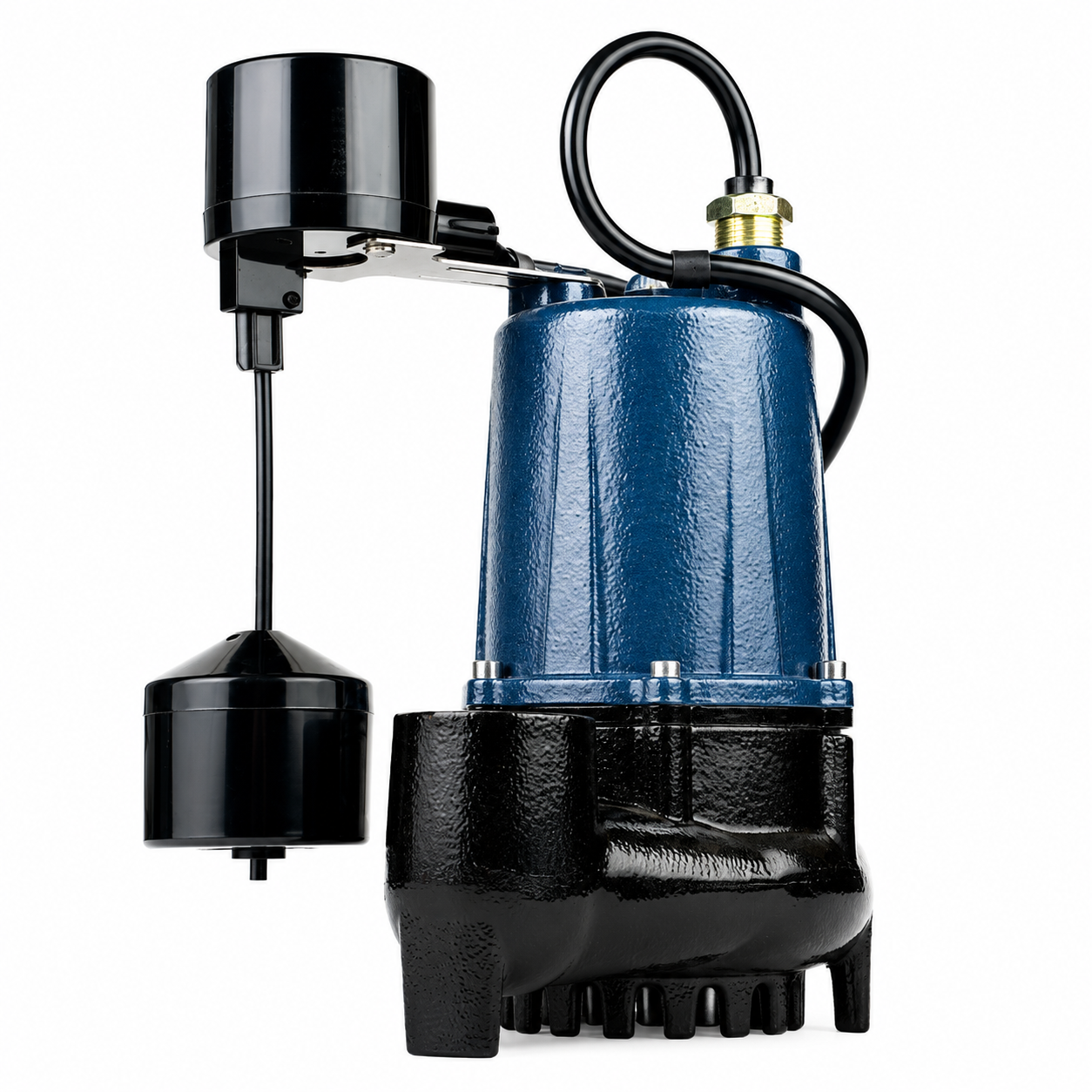

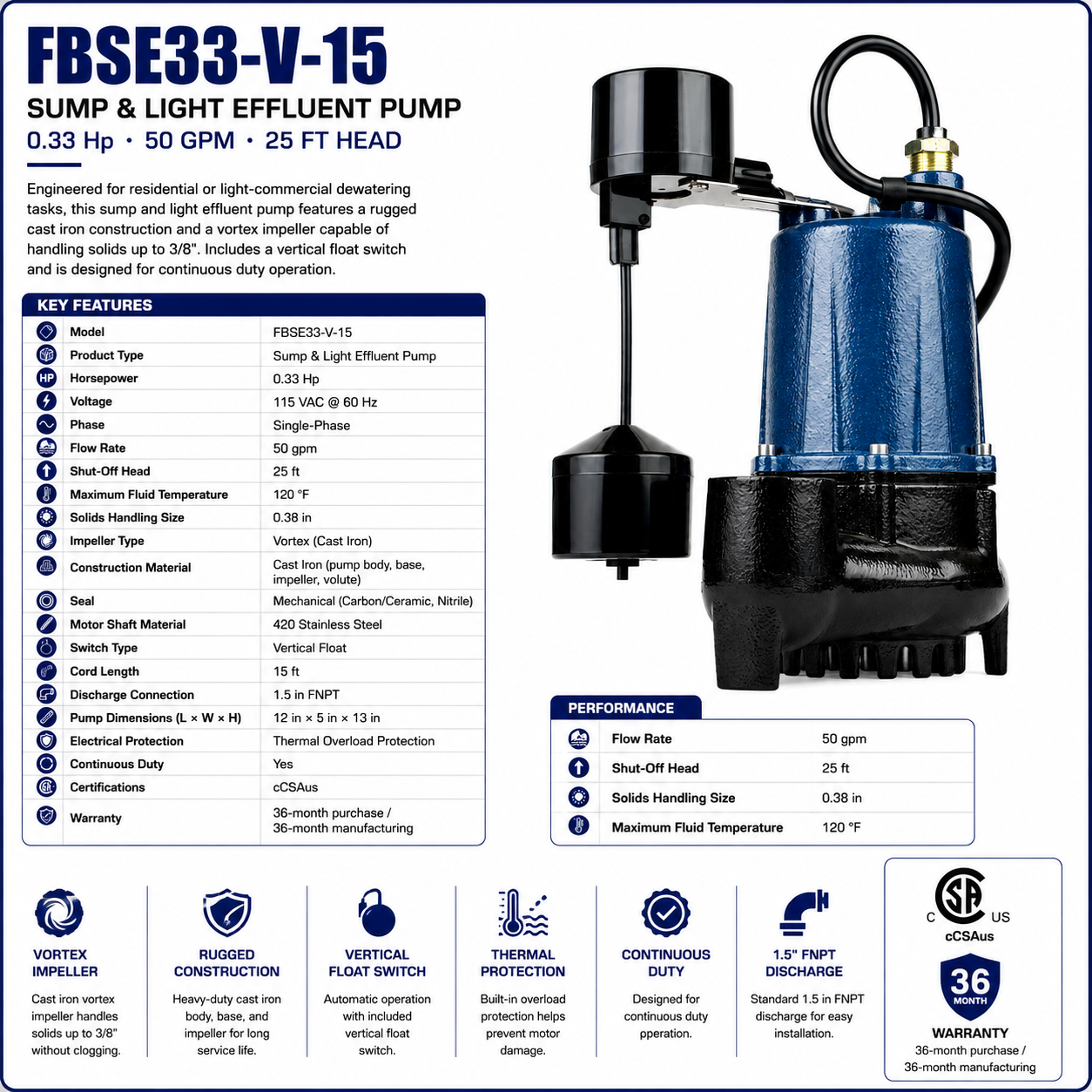

FBSE33-V-15, Series Sump & Light Effluent Pump, 0.33Hp, 115 V, 60 Hz, Single‑Phase, Cast Iron, Vertical Float, 700102

This submersible sump and light-effluent pump is engineered for residential or light-commercial dewatering tasks, featuring cast iron construction and a vortex impeller capable of handling solids up to 3/8". It includes a vertical float switch and is designed for continuous duty operation.

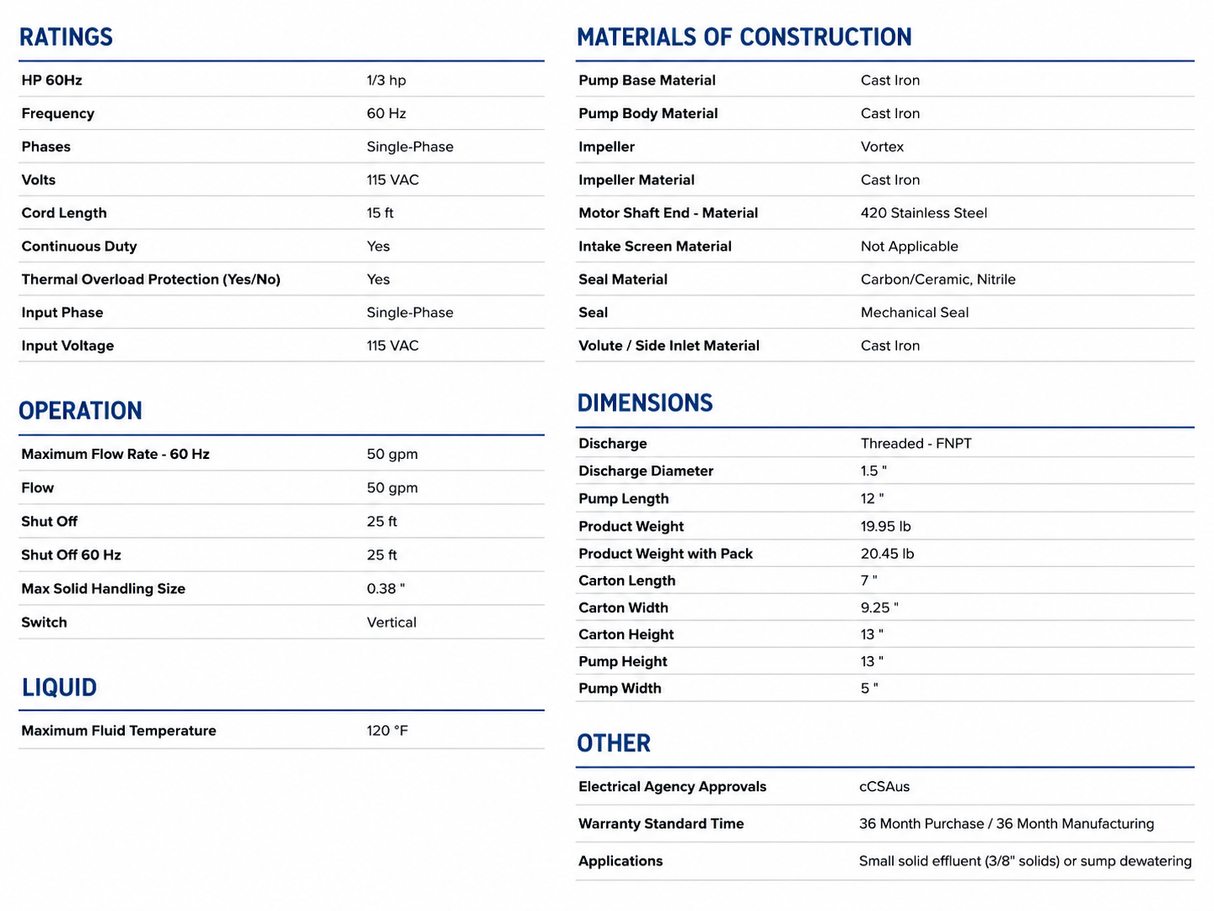

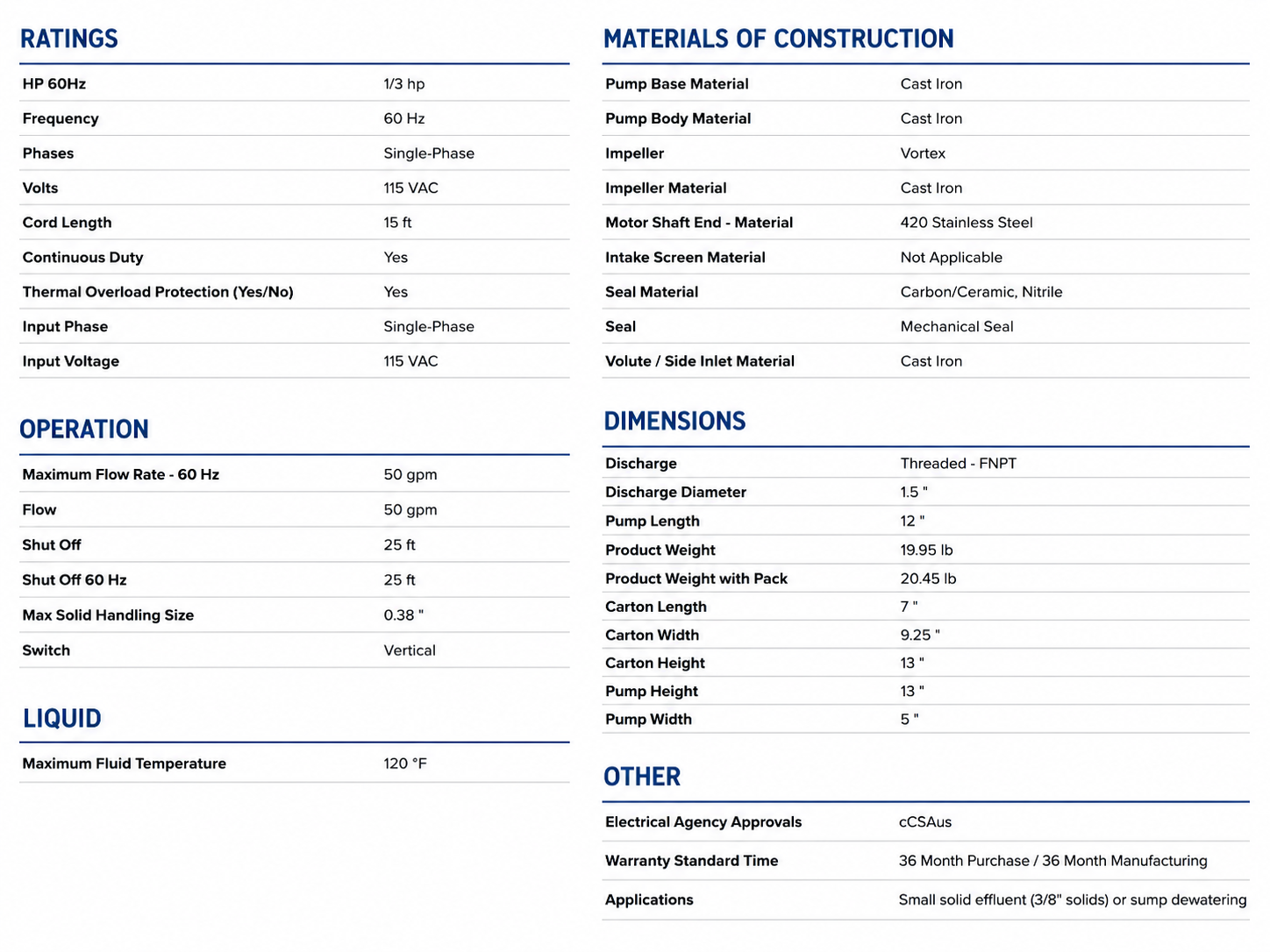

KEY FEATURES

• Model: FBSE33‑V‑15

• Product Type: Sump & Light Effluent Pump

• Horsepower: 0.33 Hp

• Voltage: 115 VAC @ 60 Hz

• Phase: Single‑Phase

• Flow Rate: 50 gpm

• Shut‑Off Head: 25 ft

• Maximum Fluid Temperature: 120 °F

• Solids Handling Size: 0.38 in

• Impeller Type: Vortex (Cast Iron)

• Construction Material: Cast Iron (pump body, base, impeller, volute)

• Seal: Mechanical (Carbon/Ceramic, Nitrile)

• Motor Shaft Material: 420 Stainless Steel

• Switch Type: Vertical Float

• Cord Length: 15 ft

• Discharge Connection: 1.5 in FNPT

• Pump Dimensions (L × W × H): 12 in × 5 in × 13 in

• Electrical Protection: Thermal Overload Protection

• Continuous Duty: Yes

• Certifications: cCSAus

• Warranty: 36‑month purchase / 36‑month manufacturing
