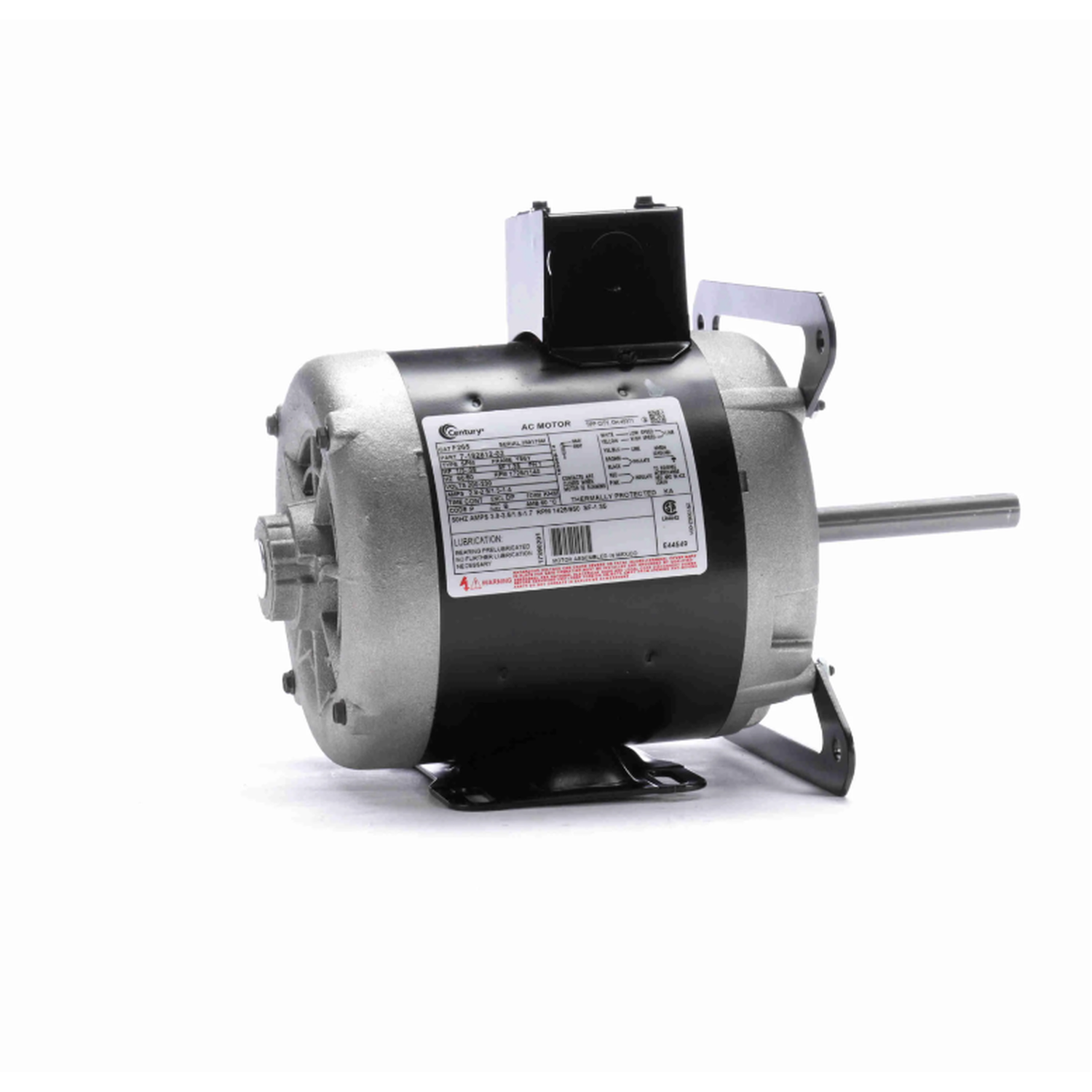

F265, 1/3-0.09Hp, 1725/1140RPM, 200-230V, 1Ph, 60/50Hz, Drip Proof, Frame Y56Y, 18511301

OBSOLETE, SEE F266 (Single Speed instead dual for F265 )

This versatile electric motor offers reliable performance for various applications. Designed with durability and efficiency in mind, it is ideal for continuous use environments.

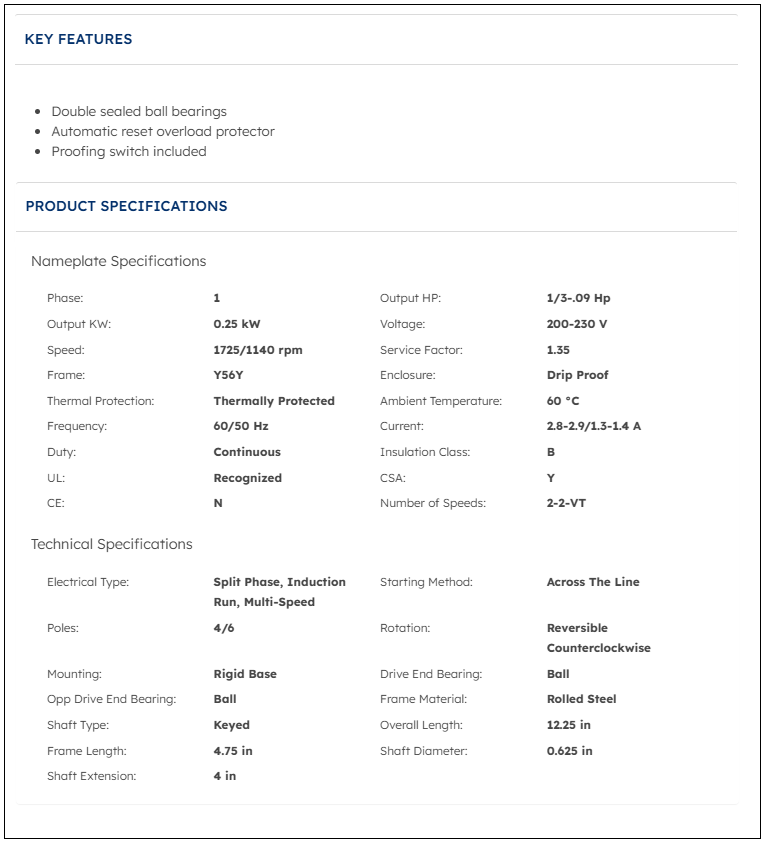

• Phase: 1
• Output HP: 1/3-0.09 Hp
• Output KW: 0.25 kW
• Voltage: 200-230 V
• Speed: 1725/1140 rpm
• Service Factor: 1.35
• Frame: Y56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 60 °C
• Frequency: 60/50 Hz
• Current: 2.8-2.9/1.3-1.4 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2-2-VT
• Electrical Type: Split Phase, Induction Run, Multi-Speed
• Starting Method: Across The Line
• Poles: 4/6
• Rotation: Reversible Counterclockwise
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed

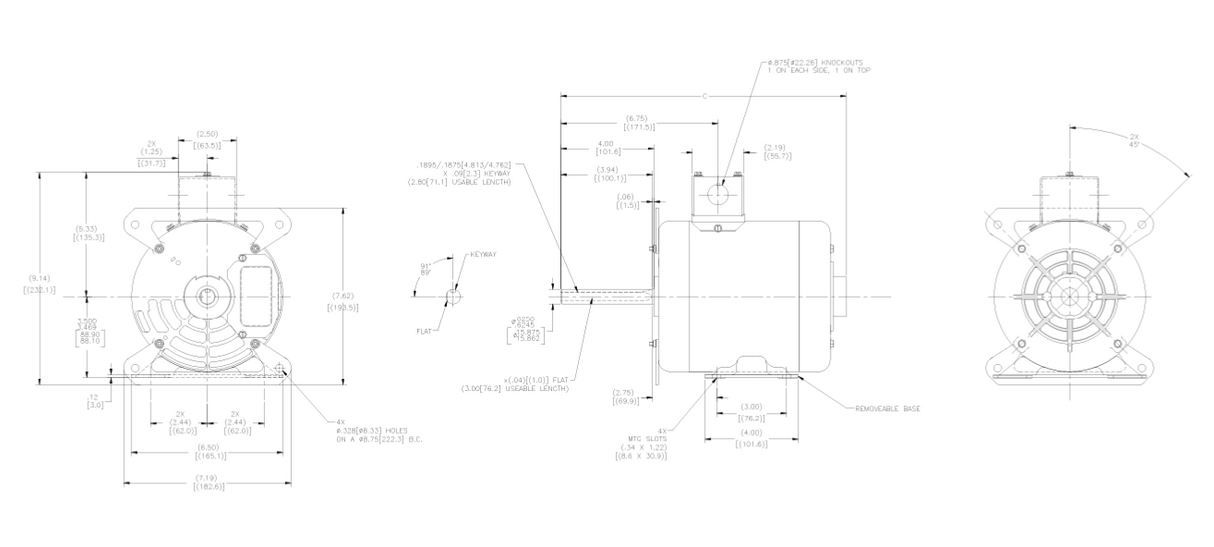

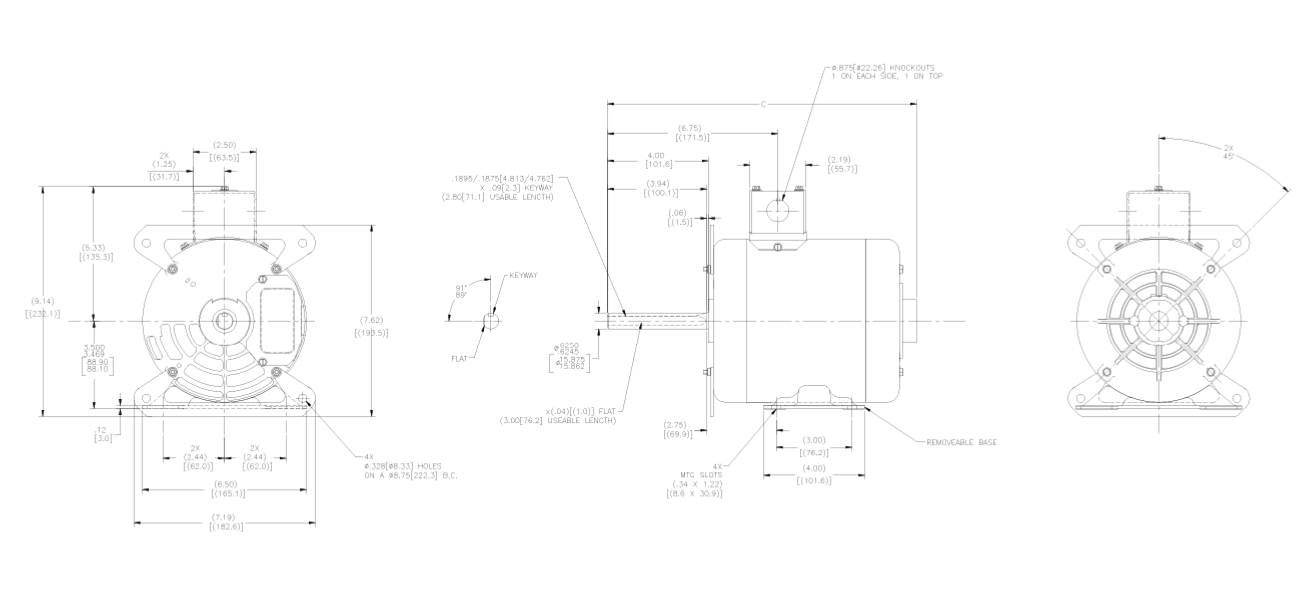

• Overall Length: 12.25 in
• Frame Length: 4.75 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 4 in

With a robust build and efficient design, this motor is perfect for demanding tasks, ensuring longevity and optimal performance.
