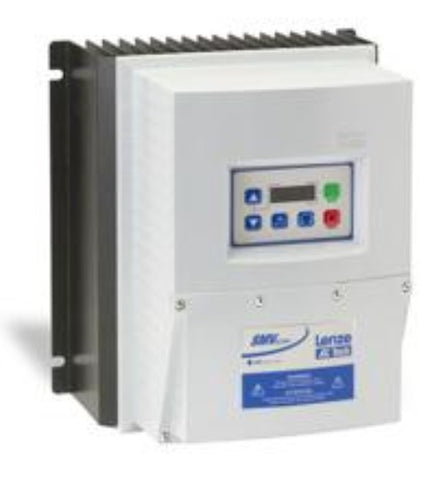

ESV402N06TXC, VFD DRIVE, AC TECH, 5 HP, 600V, NEMA 1, 174666.00 LEESON
ESV402N06TXC LENZE REPLACE LEESON 174666.00
- 1 Run/Stop
- 3 Programmable [4 for 15HP (11kW) models and higher]
- 1 Form A relay
- 1 Open Collector
- 1 voltage (0-10VDC)
- 1 current (4-20mA)
- 1 voltage (0-10VDC)
- 10 VDC (Potentiometer Reference)
- 12 VDC, 20mA (Digital Inputs)
- 12 VDC, 50mA
Standards and Conformance
- UL & cUL (North America)
- CE (Europe) Low Voltage Directive (EN61800-5-1) EMC Directive (EN61800-3) when suitably filtered
- GOST (Russia/Ukraine)
- C-Tick (Australia and New Zealand)
- Two Year Warranty
Communication Modules: With plug-in communication modules, the SMVector is easily integrated into any one of today's most commonly used industrial networks. Whether the application is to automate a single machine or an entire facility, the SMVector is fully equipped to make the process a snap. Available Communications Modules are:
» Modbus / RS485 (standard on 15HP (11kw) models and higher)
» PROFIBUS DP
» Additional Form-C relay output
» Additional I/O module with 1 Form-C relay and 2 digital inputs
Speed Potentiometer: A speed potentiometer is a preferred operator interface in some applications than up and down push buttons. For these situations, an option terminal cover replacement for NEMA 4X drives (with or without disconnect) is available that integrates a speed potentiometer, knob and dial.
Remote Keypad: Simple 4 wire connection between the SMVector drive and the remote keypad provides for drive operation (start, stop, direction and speed) and programming. Includes 4 digit LED display. Measures only 3.4in (H) x2.2 in (W). Includes gasketing to meet up to NEMA 4X rated environments.
Dynamic Braking: Packaged Dynamic brake option includes control and resistors in an easy to implement solution for fast stopping or deceleration requirements.
Designed for use with 575VAC Motors.
This Lenze drive is a Build To Order product and factory lead times are approximately 6-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
LENZE SMVector Series NEMA4X IP65 Frequency Inverters can be used with 3-phase AC induction motors. Programmable digital and analog I/O allow the drive to be configured for many application specific tasks such as multiple preset speeds, electronic braking and motor jogging to name a few. Like all Lenze - AC Tech sub-micro drives, the SMVector uses EPM memory technology for fast and efficient programming.
