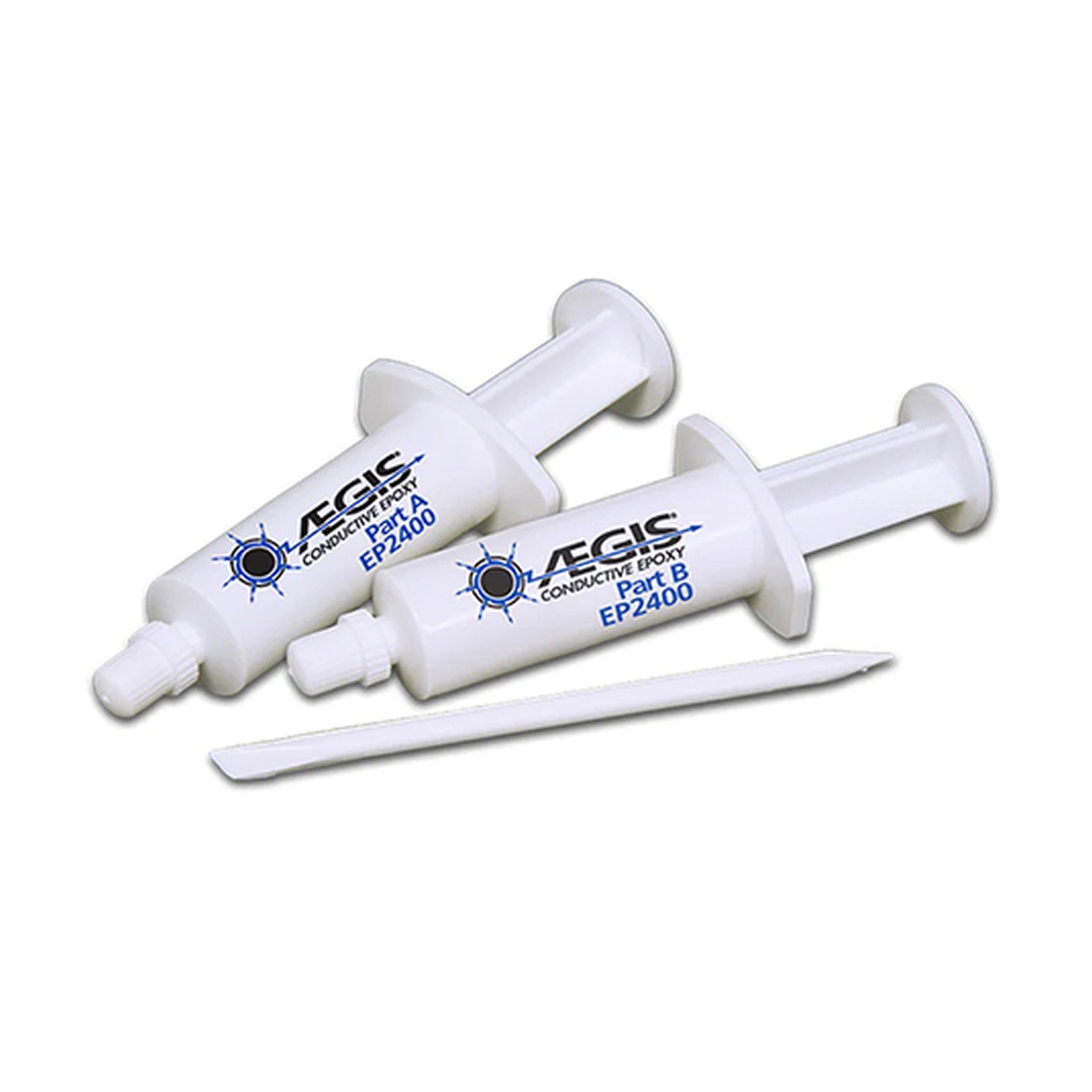

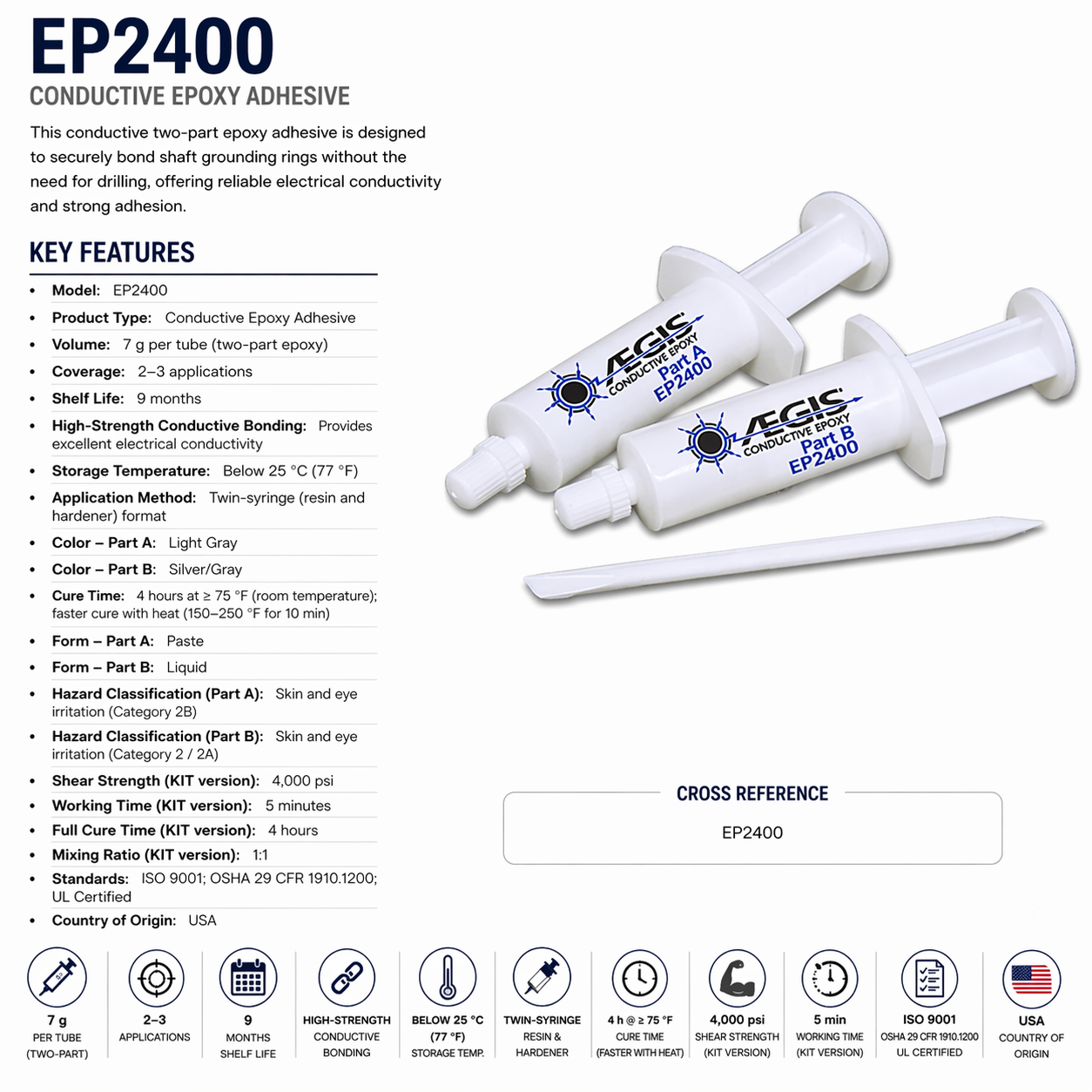

EP2400, Conductive Epoxy, 2‑3 applications, 7 g tubes

This conductive two‑part epoxy adhesive is designed to securely bond shaft grounding rings without the need for drilling, offering reliable electrical conductivity and strong adhesion.

KEY FEATURES

• Model: EP2400

• Product Type: Conductive Epoxy Adhesive

• Volume: 7 g per tube (two‑part epoxy)

• Coverage: 2‑3 applications

• Shelf Life: 9 months

• High‑Strength Conductive Bonding: Provides excellent electrical conductivity

• Storage Temperature: Below 25 °C (77 °F)

• Application Method: Twin‑syringe (resin and hardener) format

• Color – Part A: Light Gray

• Color – Part B: Silver/Gray

• Cure Time: 4 hours at ≥ 75 °F (room temperature); faster cure with heat (150–250 °F for 10 min)

• Form – Part A: Paste

• Form – Part B: Liquid

• Hazard Classification (Part A): Skin and eye irritation (Category 2B)

• Hazard Classification (Part B): Skin and eye irritation (Category 2 / 2A)

• Shear Strength (KIT version): 4,000 psi

• Working Time (KIT version): 5 minutes

• Full Cure Time (KIT version): 4 hours

• Mixing Ratio (KIT version): 1:1

• Standards: ISO 9001; OSHA 29 CFR 1910.1200; UL Certified

• Country of Origin: USA

This epoxy’s conductive bonding and convenient twin‑syringe format make it well‑suited for reliable installation of grounding rings in motor applications, with flexible curing options for different operational needs.
