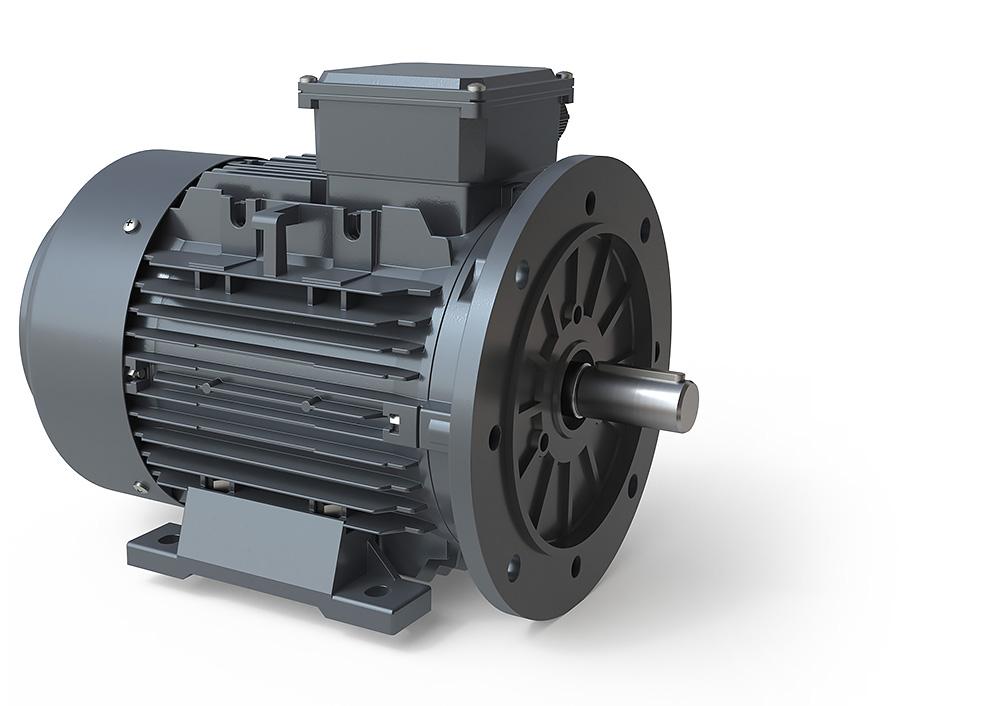

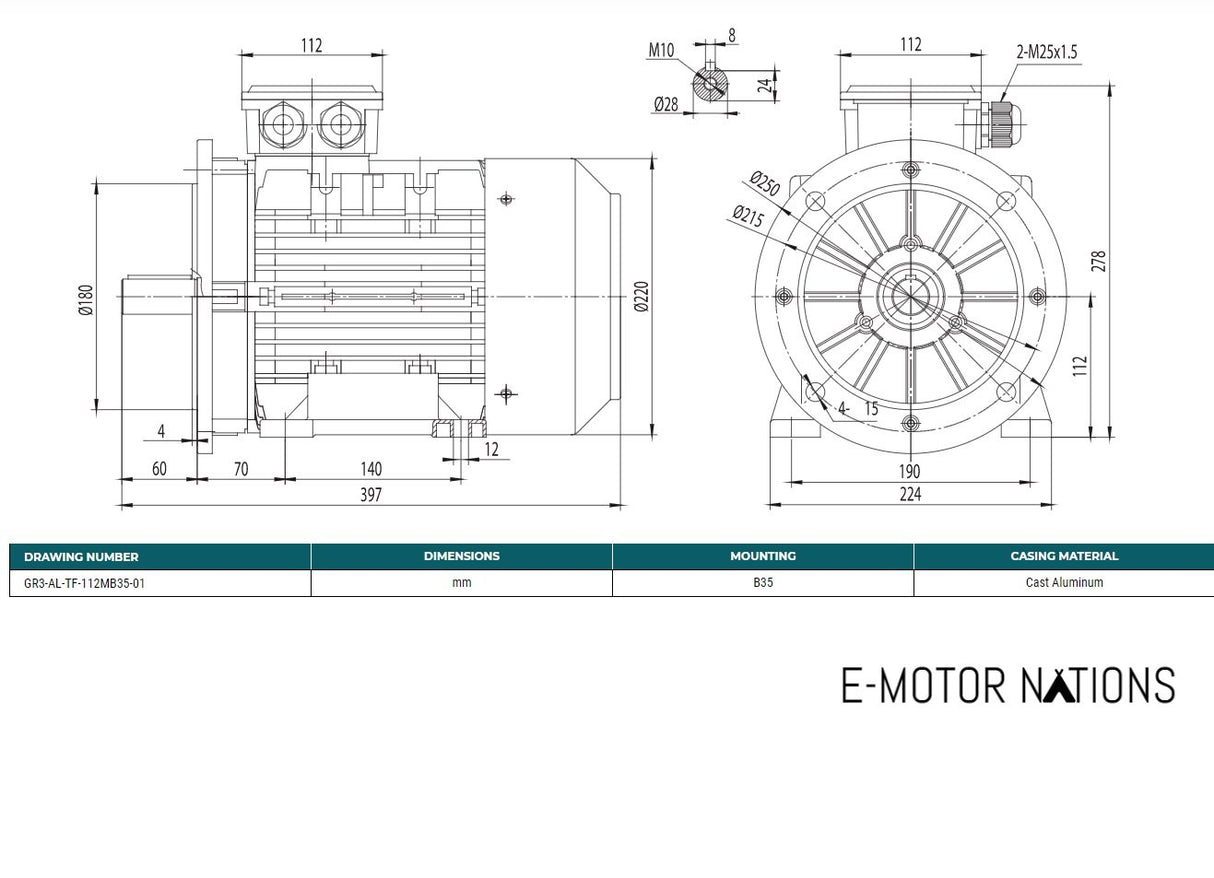

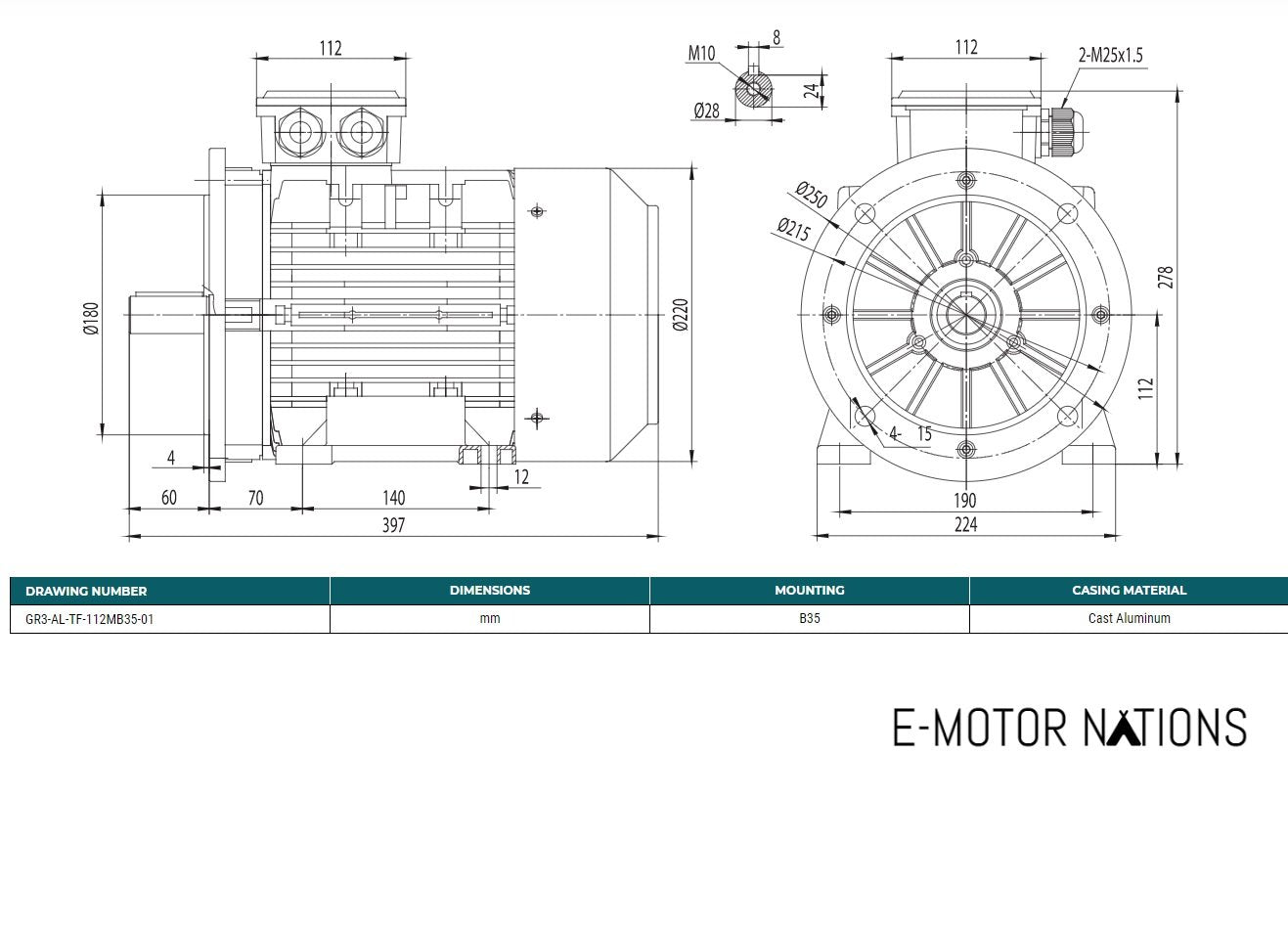

Emotornations, 5.5 Hp,1800 Rpm, 230/460V,3Ph, Frame:112M, B35, Premium
MTP112MA4D-B35-01, GR3-AL-TF-112LB35-3D, Techtop,
NAMEPLATE DATA
- 60Hz / 50Hz
- HP / kW 5.5/4
- RPM 1750
- Voltage 230/460
- Full Load Amps 13.2/6.6
- Service Factor 1.15
- Full Load Amps (208V)
- Nominal Efficiency 89.5
- Nominal Power Factor 0.85
- Design Frame 112M
- Enclosure Type TEFC
- IP Rating 55 Duty
- Cont. / S1
- Insulation Class F
- Ambient Rating 40°C
- Drive End Bearing 6306ZZ
- Opposite Drive End Bearing 6206ZZ
- Weight (lbs) 74
-
Full Load Torque 16.5
STANDARD FEATURES
- *Removable feet F1, F2, F0 field convertible up to and including 225 frame (standard F0)
- 1.15 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
- 36 Month warranty
- Conduit Box is 90º rotatable
- B5/B14 and increase/decrease flanges available
- Class I, Division II, Groups A, B, C and D compliant
- IEEE 45 Marine Duty 160M frame and larger
- Anti-microbial (tropicalization) on stator winding
- Cast iron fan covers standard 160M frame and larger
- Regreasable bearings 160M frame and larger
- Mobil Polyrex EM polyurea grease
- 1045 Steel shaft
- Surface finish:
- 2-part epoxy coating (cast iron models only)
- Alkyd enamel RAL7024 - Graphite Gray
- Black oxide surface treatment for increased corrosion resistance (aluminum models only)
- Stainless steel nameplate
- Corrosion resistant hardware
- Metric threaded cable gland included with motors
- Ultra high strength, reusable lifting straps included with motors 160M frame and larger
OPERATING PARAMETERS
CONNECTION
INGRESS PROTECTION
INSULATION AND INVERTER RATING
- Continuous (S1) duty
- Ambient temperatures up to 40ºC
- Installation up to 1000 MASL (3300 ft.)
CONNECTION
- Up to and Including 132M Frame (IEC standard terminal block):
- 9-Lead 230V parallel-wye / 460V series-wye connection
- 6-Lead 575V wye connection
- 160M Frame and Larger (IEC standard terminal block):
- 12-Lead 230V parallel-delta / 460V delta connection
- 6-Lead 460V or 575V single voltage delta connection
INGRESS PROTECTION
The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed including nipple seals between conduit box and stator body. DE and NDE end bell fitted with sintered brass one-way drain.
INSULATION AND INVERTER RATING
- Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
- Designed to Class B temperature rise
- Vacuum Impregnated
- Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power).
- Exceeds NEMA MG 1 Part 31.4.4.2
