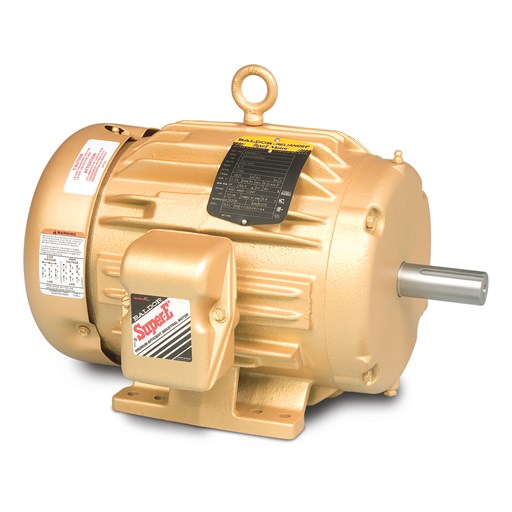

EM4115T, 50Hp, 1775 RPM, 230/460V, 3Ph, 60Hz, Frame 326T, 1272M,TEFC, F1

EM4115T, 50Hp, 1775 RPM, 230/460V, 3Ph, 60Hz, Frame 326T, 1272M,TEFC, F1

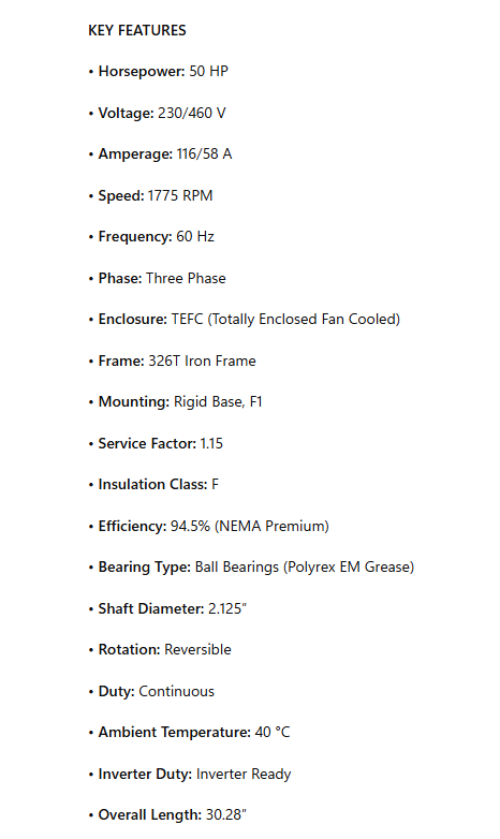

KEY FEATURES

• Horsepower: 50 HP

• Voltage: 230/460 V

• Amperage: 116/58 A

• Speed: 1775 RPM

• Frequency: 60 Hz

• Phase: Three Phase

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Frame: 326T Iron Frame

• Mounting: Rigid Base, F1

• Service Factor: 1.15

• Insulation Class: F

• Efficiency: 94.5% (NEMA Premium)

• Bearing Type: Ball Bearings (Polyrex EM Grease)

• Shaft Diameter: 2.125″

• Rotation: Reversible

• Duty: Continuous

• Ambient Temperature: 40 °C

• Inverter Duty: Inverter Ready

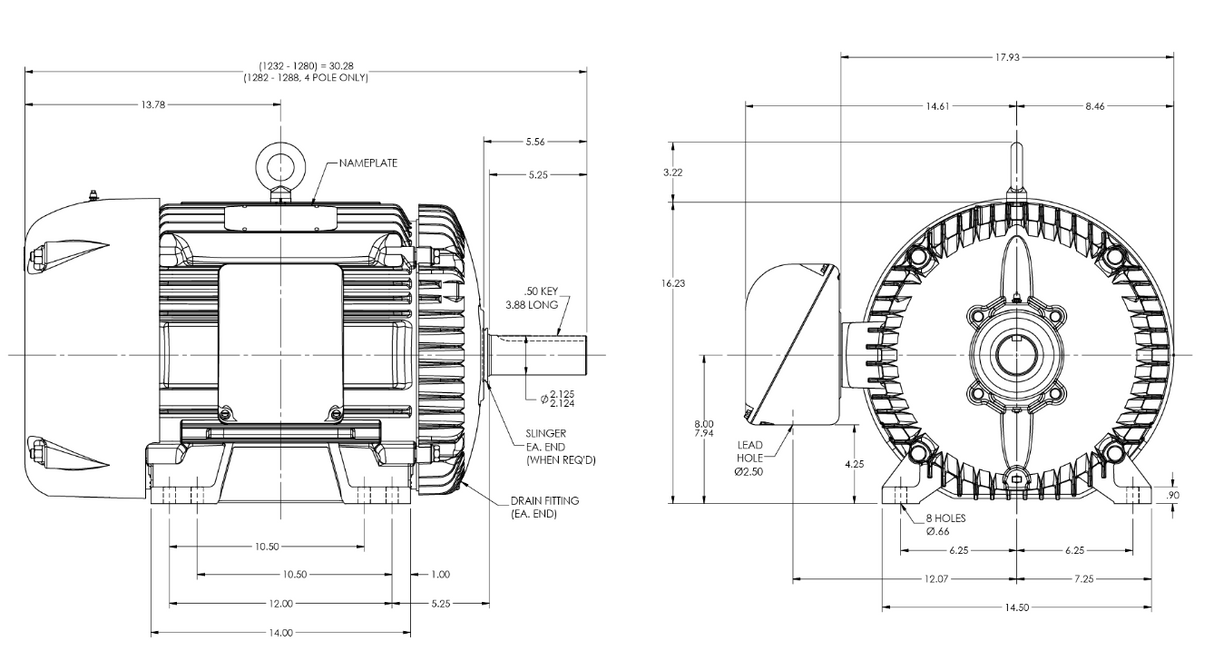

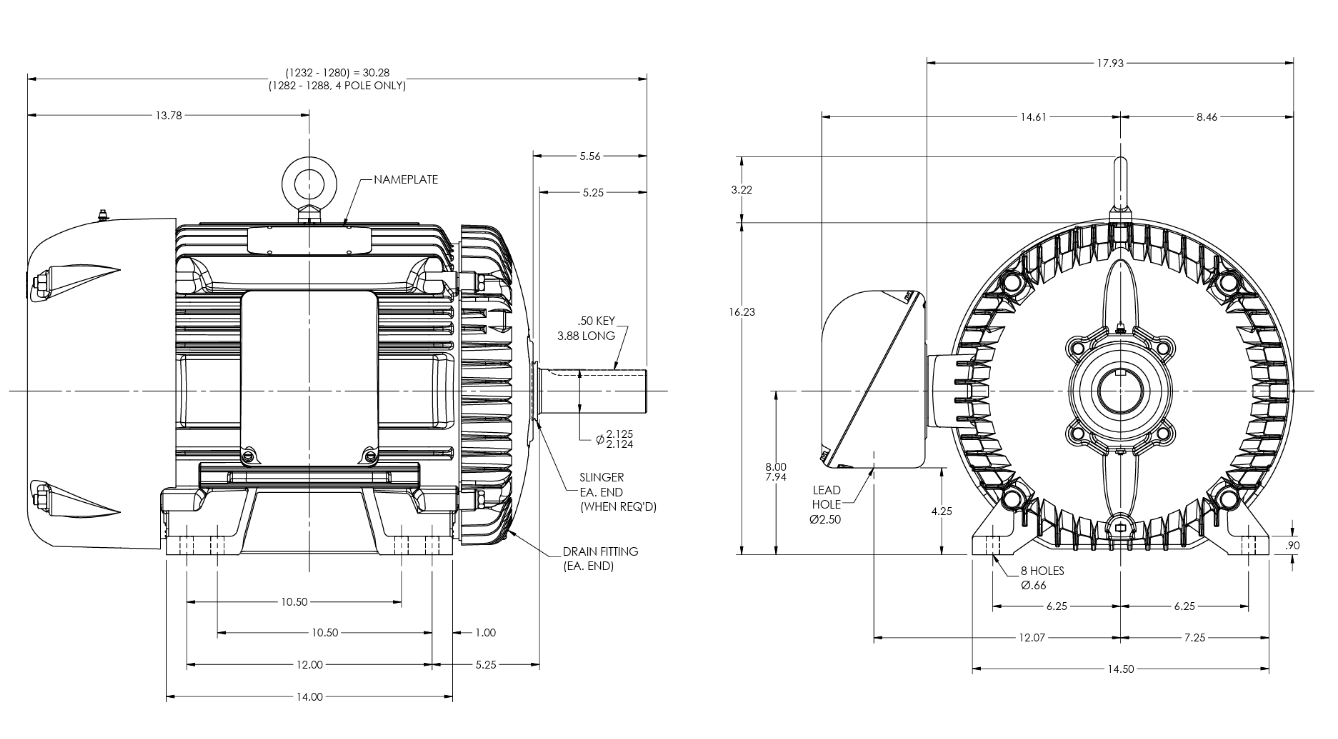

• Overall Length: 30.28″
