BALDOR | SKU :
EMN-019508

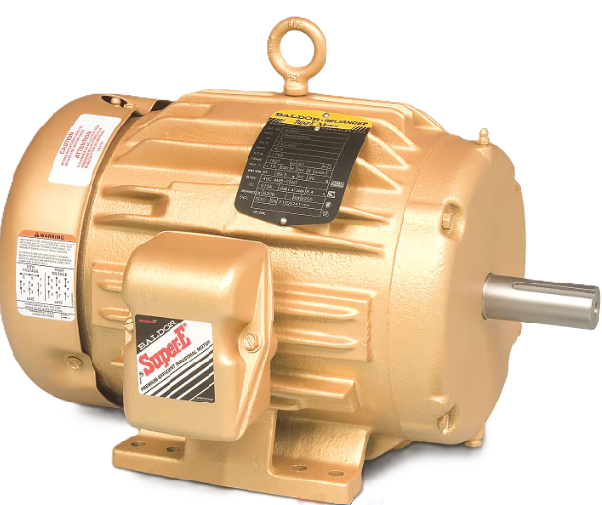

EM3665T, Baldor, 5Hp, 1750RPM, 184T, TEFC, 230V/460V, General Purpose
Prix habituel
$1,218.14
Prix unitaire
/
Indisponible
EM3665T, Baldor, 5Hp, 1750RPM, 184T, TEFC, 230V/460V, General Purpose est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
EM3665T, Baldor, 5Hp, 1750RPM, 184T, TEFC, 230V/460V, General Purpose
Prix habituel
$1,218.14
Prix unitaire
/
Indisponible
Description
Description
EM3665T, Baldor, 5Hp, 1750RPM, 184T, TEFC, 230V/460V, General Purpose

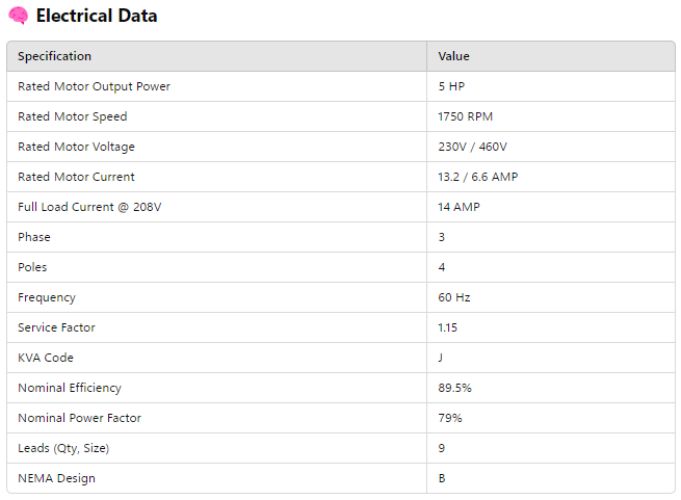

| Electrical Data | |
| Specification | Value |
| Rated Motor Output Power | 5 HP |
| Rated Motor Speed | 1750 RPM |
| Rated Motor Voltage | 230V / 460V |
| Rated Motor Current | 13.2 / 6.6 AMP |
| Full Load Current @ 208V | 14 AMP |
| Phase | 3 |
| Poles | 4 |
| Frequency | 60 Hz |
| Service Factor | 1.15 |
| KVA Code | J |
| Nominal Efficiency | 89.5% |
| Nominal Power Factor | 79% |

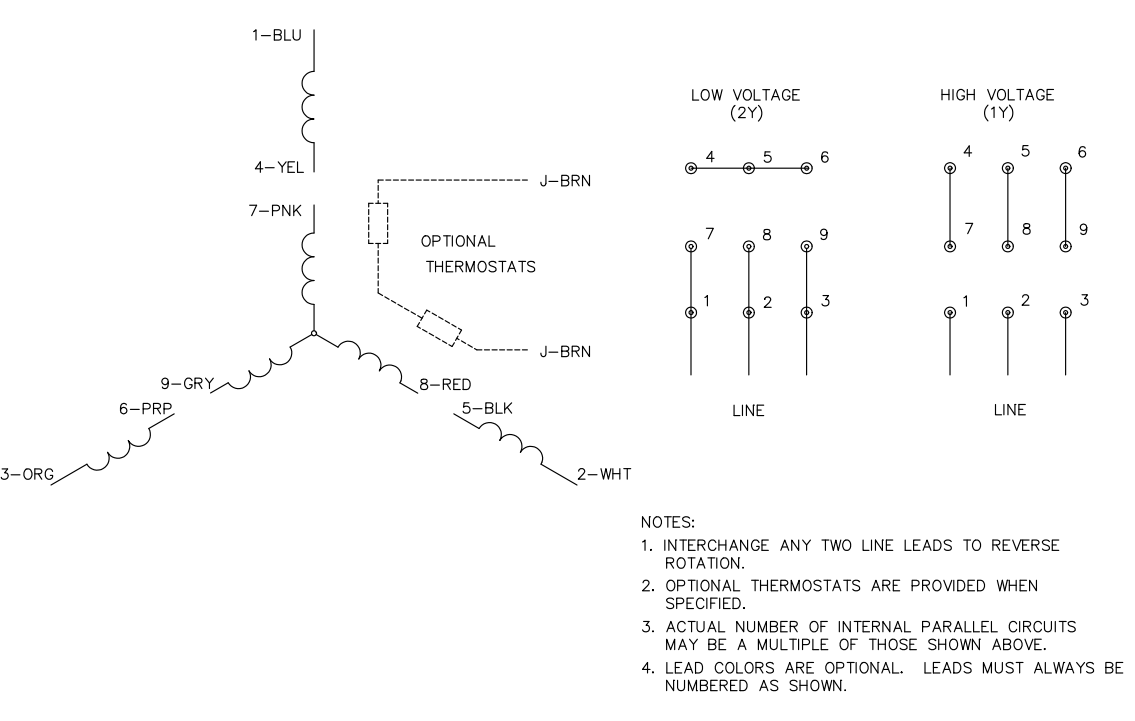

| Leads (Qty, Size) | 9 |
| NEMA Design | B |

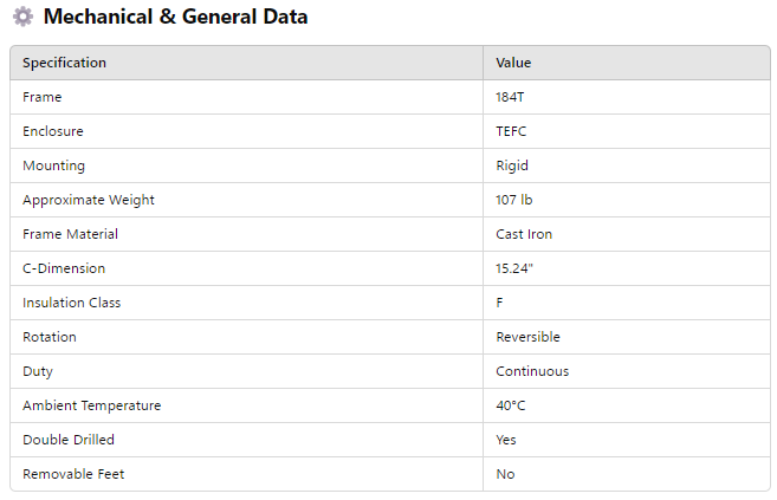

| Mechanical & General Data | |
| Specification | Value |
| Frame | 184T |
| Enclosure | TEFC |
| Mounting | Rigid |
| Approximate Weight | 107 lb |
| Frame Material | Cast Iron |

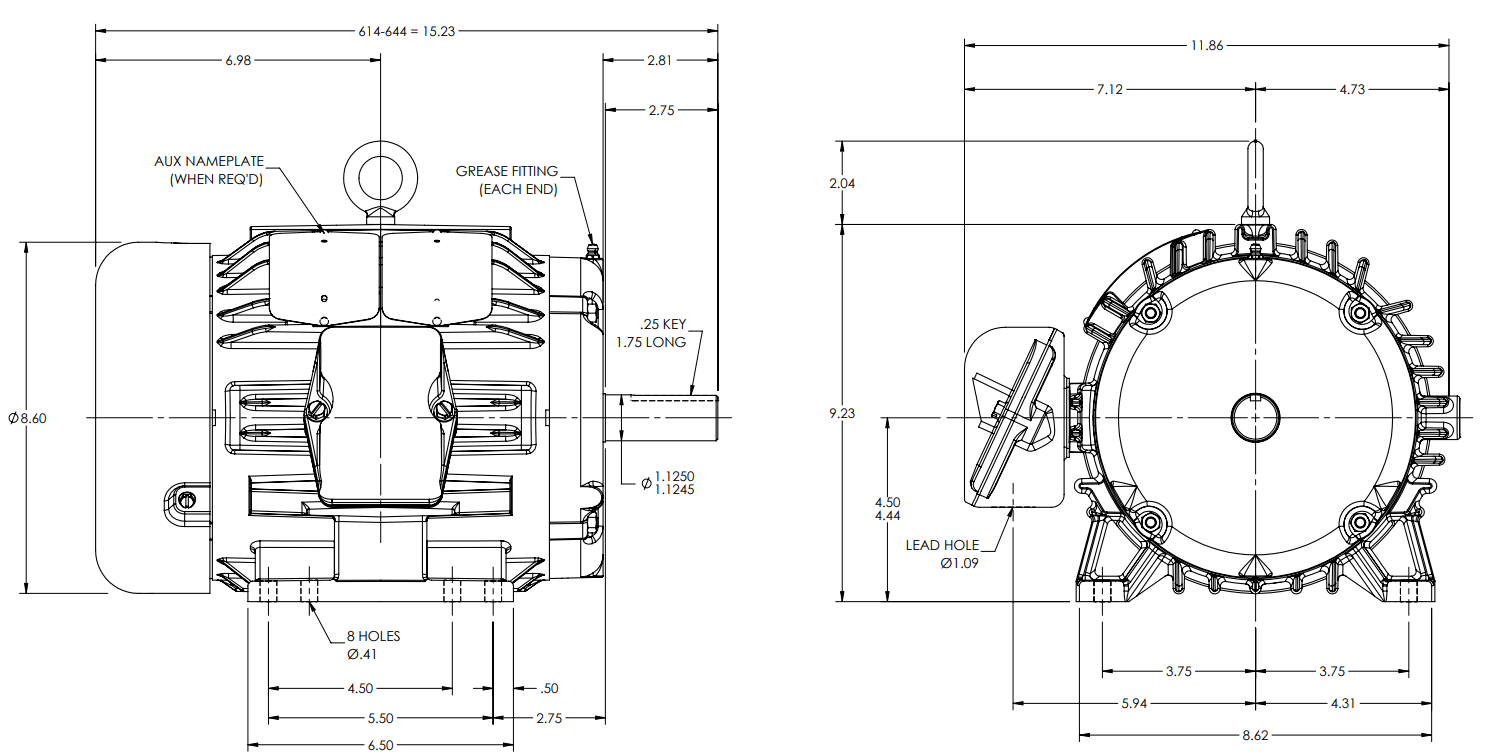

| C-Dimension | 15.24" |
| Insulation Class | F |
| Rotation | Reversible |
| Duty | Continuous |
| Ambient Temperature | 40°C |
| Double Drilled | Yes |
| Removable Feet | No |
| Spec | 06C101X182G9 |

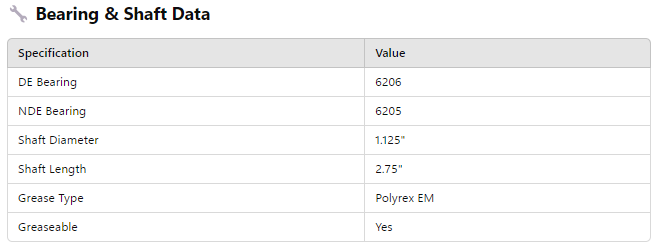

| Bearing & Shaft Data | |
| Specification | Value |
| DE Bearing | 6206 |
| NDE Bearing | 6205 |
| Shaft Diameter | 1.125" |
| Shaft Length | 2.75" |
| Grease Type | Polyrex EM |
| Greaseable | Yes |
