EM3584T‑5, 1.5 Hp, 1760 RPM, 3‑Phase, TEFC, Frame 145T, 05C01W56E7
EM3584T‑5, 1.5 Hp, 1760 RPM, 3‑Phase, TEFC, Frame 145T, 05C01W56E7 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
EM3584T‑5, 1.5 Hp, 1760 RPM, 3‑Phase, TEFC, Frame 145T, 05C01W56E7
Description
Description
This industrial three‑phase induction motor offers 1.5 horsepower at approximately 1760 RPM, designed for continuous duty applications with a totally enclosed fan‑cooled enclosure and NEMA 145T frame. It delivers reliable torque performance and is suitable for standard 60 Hz power systems.

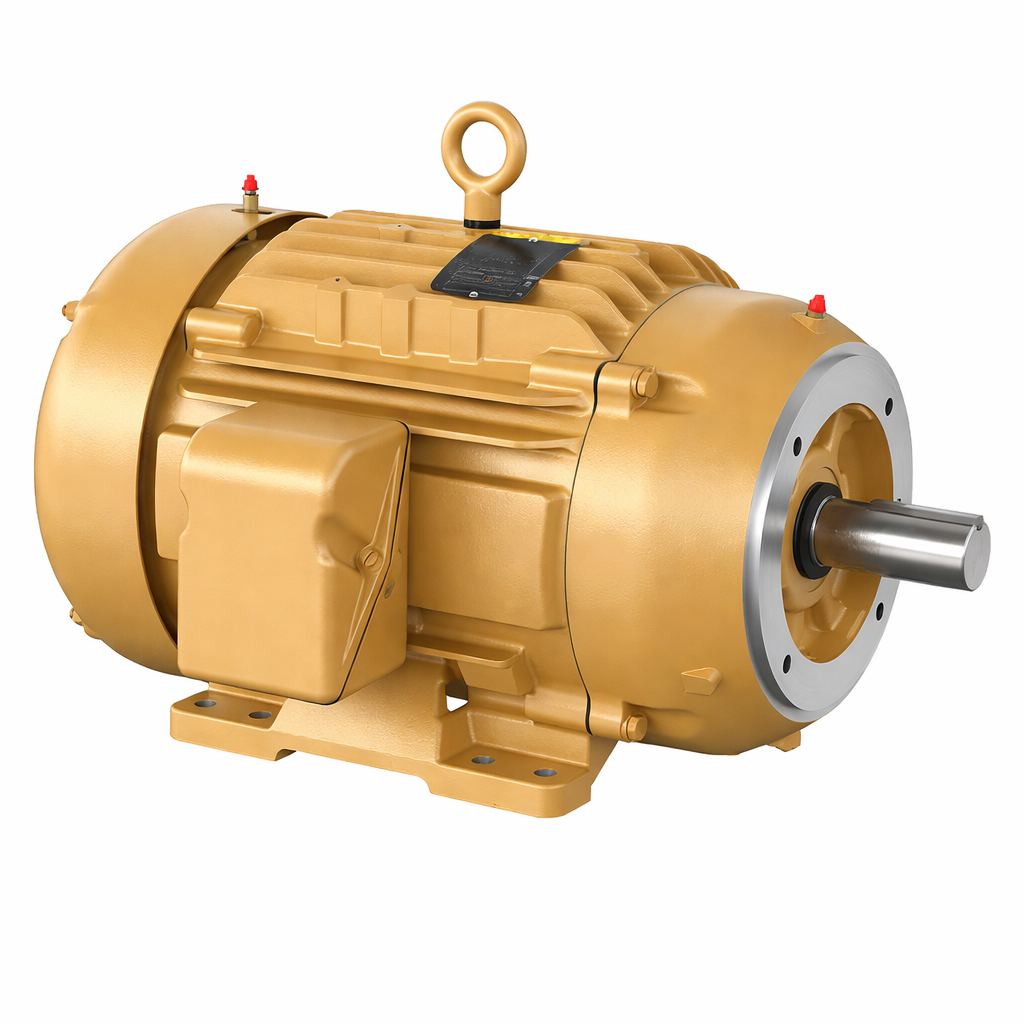

Product has been discontinued replaced by: CEM3584T-5

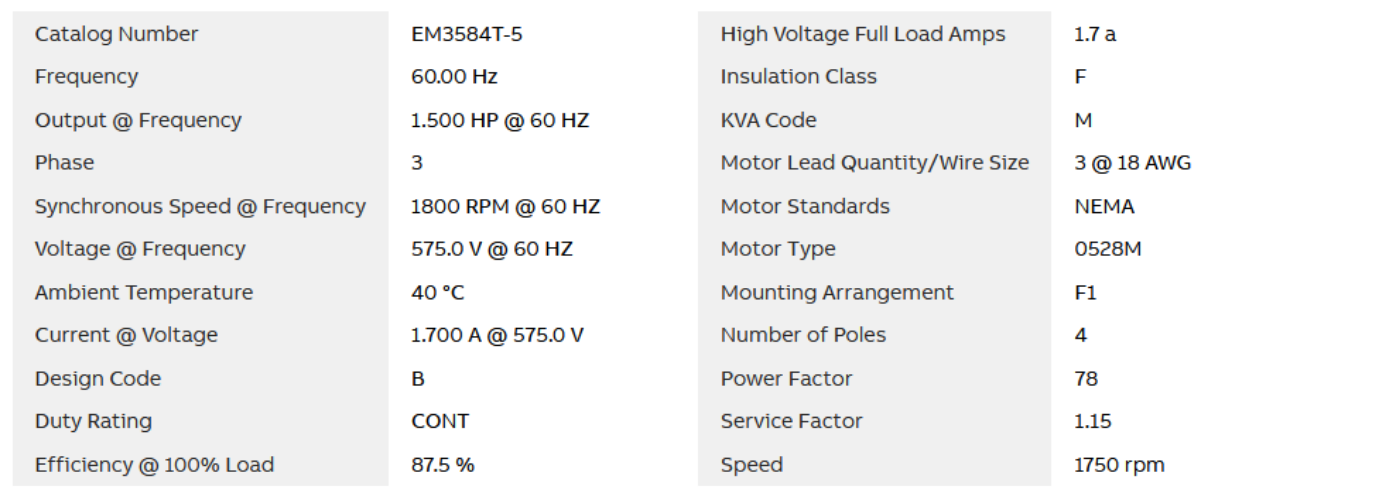

- Part Number: EM3584T‑5
- Horsepower: 1.5 HP
- Speed (RPM): 1760 RPM
- Phase: 3‑Phase
- Voltage: 575 V (single voltage)
- Frequency: 60 Hz
- Enclosure: TEFC
- Frame: 145T
- Service Factor: 1.15
- Efficiency (NEMA Nom.): 88.5 %
- Design Code: B
- Starting Method: Direct‑on‑Line
- Full Load Amps: 1.7 A
- Locked‑Rotor Torque: 13.7 lb‑ft
- Breakdown Torque: 18.8 lb‑ft
- Pull‑up Torque: 10 lb‑ft
- No‑load Current: 0.962 A
- Rotor Inertia: 0.177 lb‑ft²
This motor is engineered for dependable performance in industrial environments, offering robust torque, high efficiency, and a rugged enclosure to protect against contaminants.
