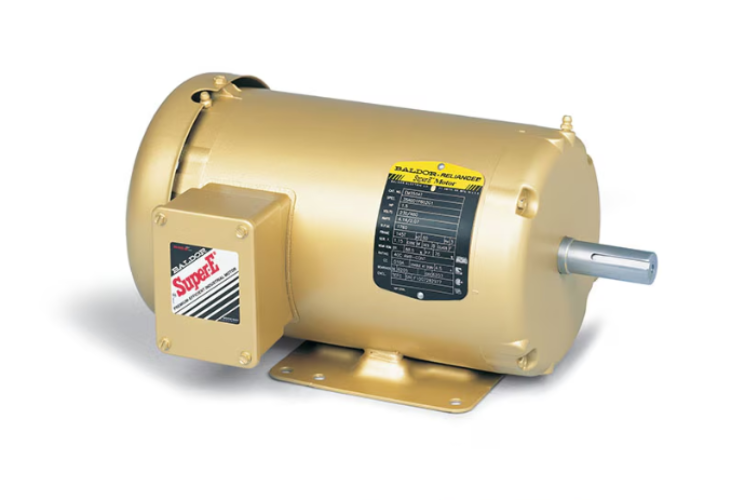

EM3554T-5G, 1.5Hp, 1770RPM, 575V, 3Ph, 60Hz, Frame 143T,TEFC, Aegis Brush

EM3554T-5G, 1.5Hp, 1770RPM, 575V, 3Ph, 60Hz, Frame 143T,TEFC, Aegis Brush

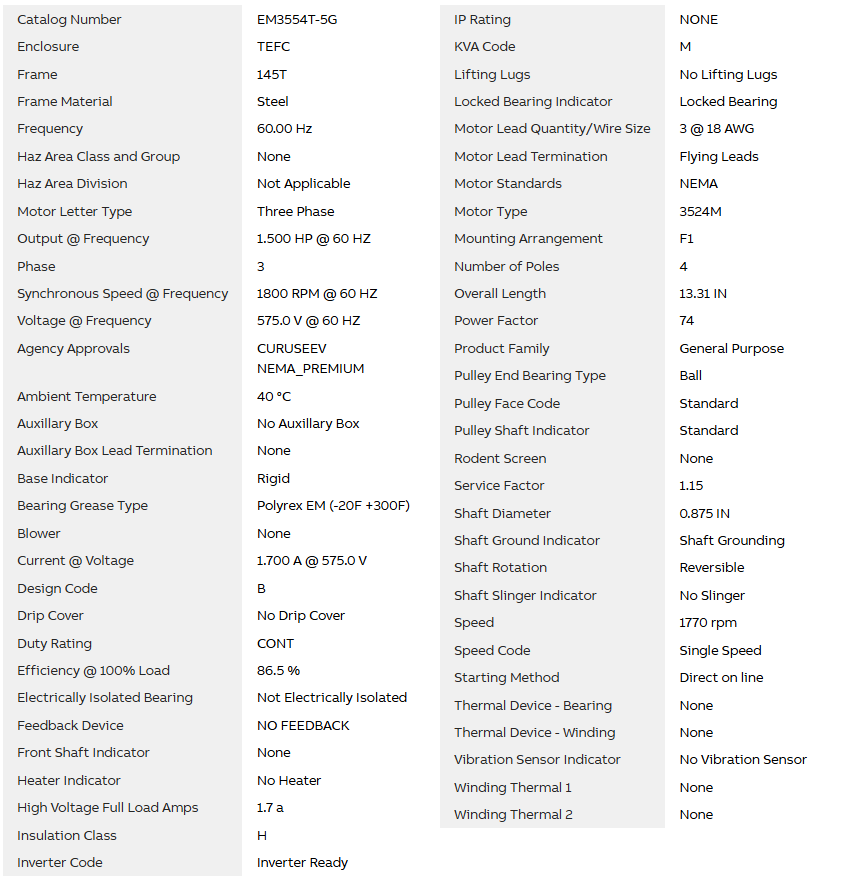

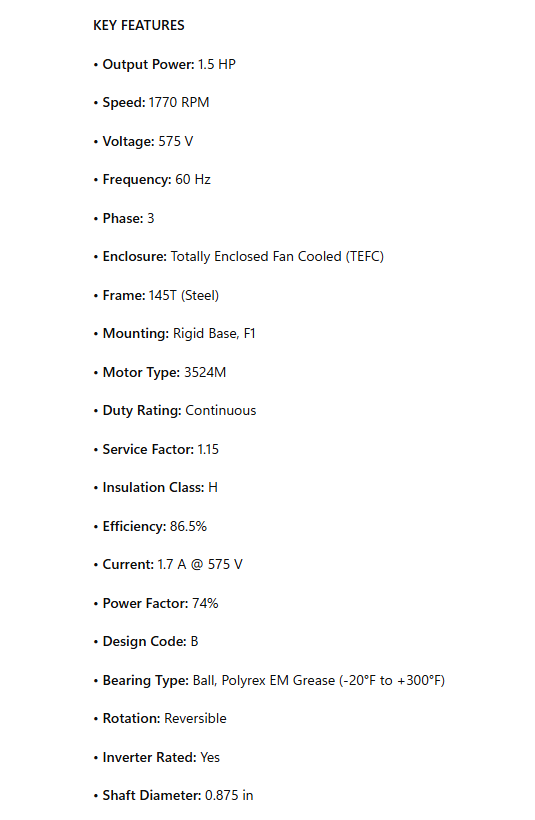

KEY FEATURES

• Output Power: 1.5 HP

• Speed: 1770 RPM

• Voltage: 575 V

• Frequency: 60 Hz

• Phase: 3

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Frame: 145T (Steel)

• Mounting: Rigid Base, F1

• Motor Type: 3524M

• Duty Rating: Continuous

• Service Factor: 1.15

• Insulation Class: H

• Efficiency: 86.5%

• Current: 1.7 A @ 575 V

• Power Factor: 74%

• Design Code: B

• Bearing Type: Ball, Polyrex EM Grease (-20°F to +300°F)

• Rotation: Reversible

• Inverter Rated: Yes

• Shaft Diameter: 0.875 in

Additional Details
Baldor shaft grounding brush installed internally. Class H insulated motor. Regreasable ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation. All models are Super-E designs which meet NEMA Premium efficiencies, are Inverter Ready, and have a 3-year warranty.
