ELP5P3D, 5Hp, 1170RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 215T, IP55, eLline Premium Cast Iron

ELP5P3D, 5Hp, 1170RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 215T, IP55, eLline Premium Cast Iron

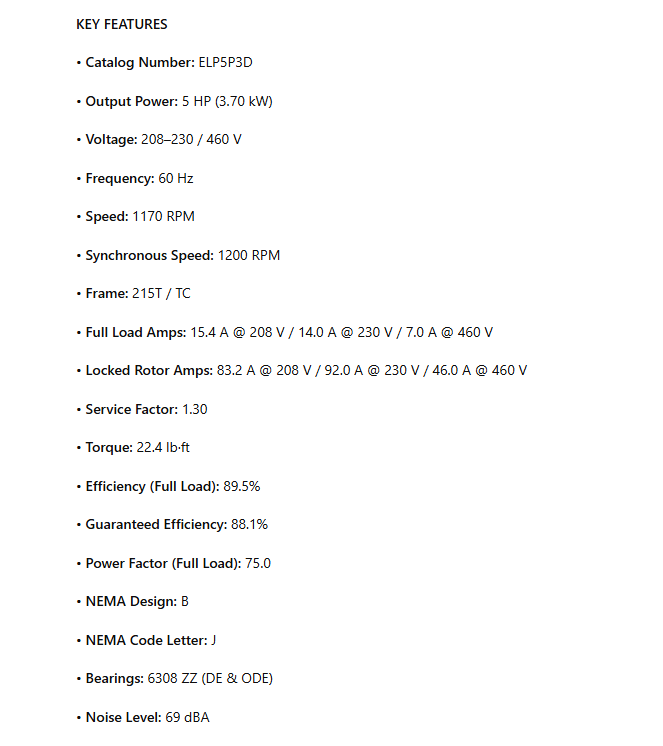

KEY FEATURES

• Catalog Number: ELP5P3D

• Output Power: 5 HP (3.70 kW)

• Voltage: 208–230 / 460 V

• Frequency: 60 Hz

• Speed: 1170 RPM

• Synchronous Speed: 1200 RPM

• Frame: 215T / TC

• Full Load Amps: 15.4 A @ 208 V / 14.0 A @ 230 V / 7.0 A @ 460 V

• Locked Rotor Amps: 83.2 A @ 208 V / 92.0 A @ 230 V / 46.0 A @ 460 V

• Service Factor: 1.30

• Torque: 22.4 lb·ft

• Efficiency (Full Load): 89.5%

• Guaranteed Efficiency: 88.1%

• Power Factor (Full Load): 75.0

• NEMA Design: B

• NEMA Code Letter: J

• Bearings: 6308 ZZ (DE & ODE)

• Noise Level: 69 dBA
