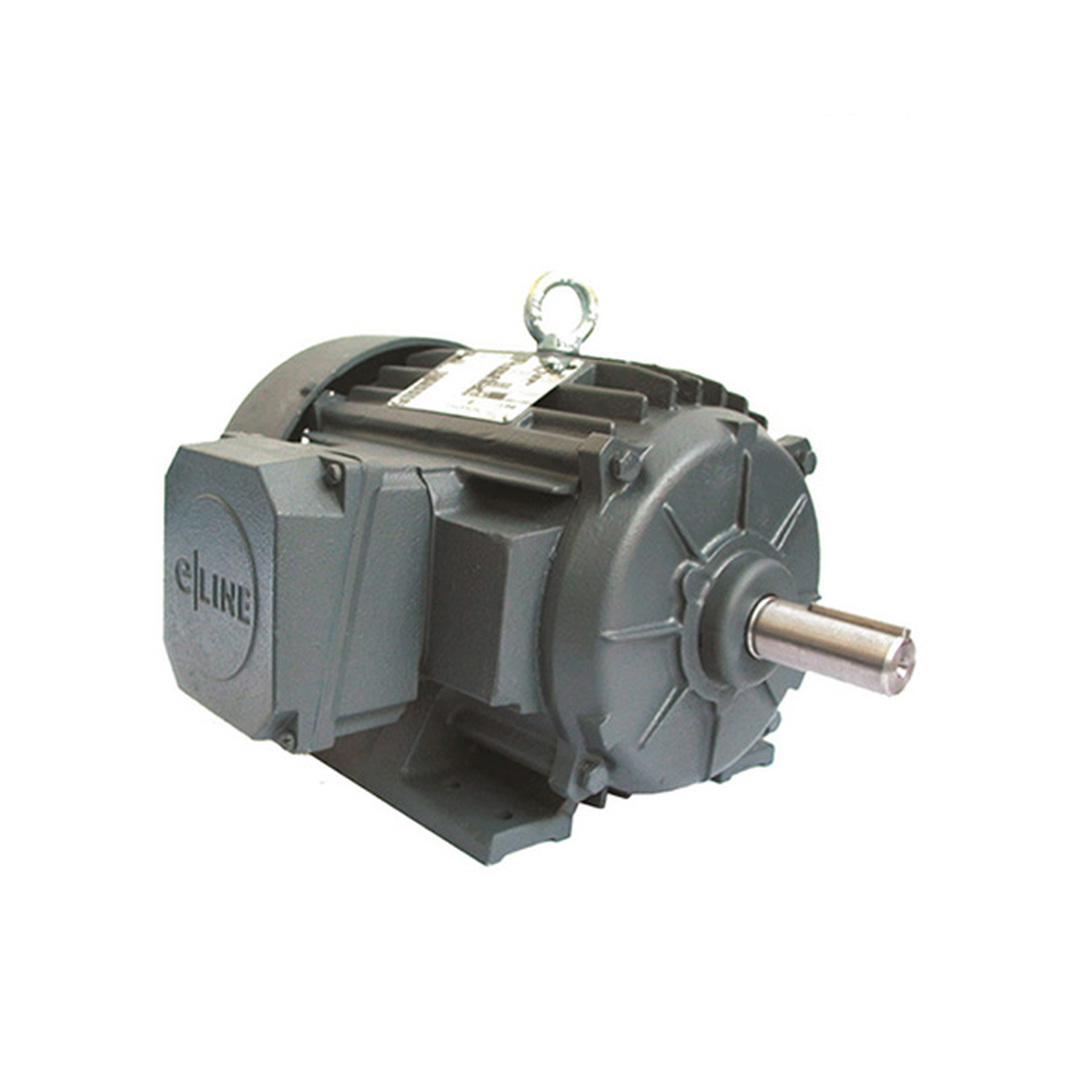

ELP10P1D, 10Hp, 3535RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 215T, IP55, eLline Premium Cast Iron

ELP10P1D, 10Hp, 3535RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 215T, IP55, eLline Premium Cast Iron

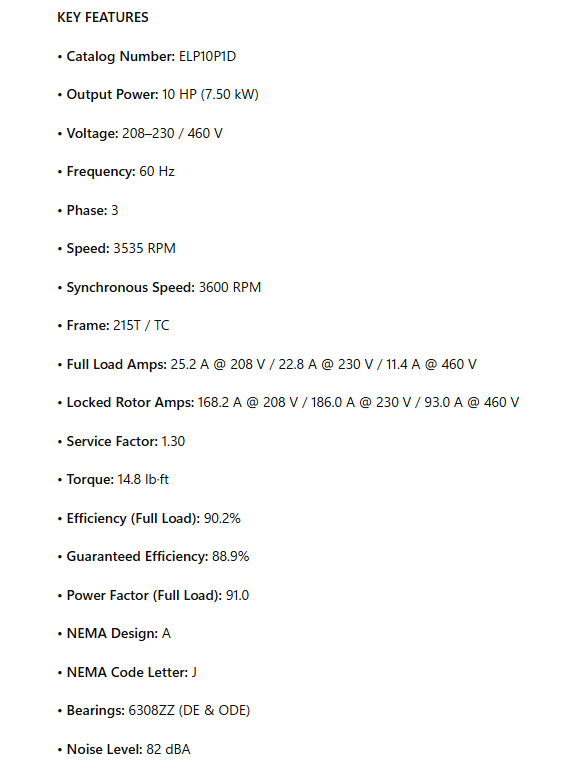

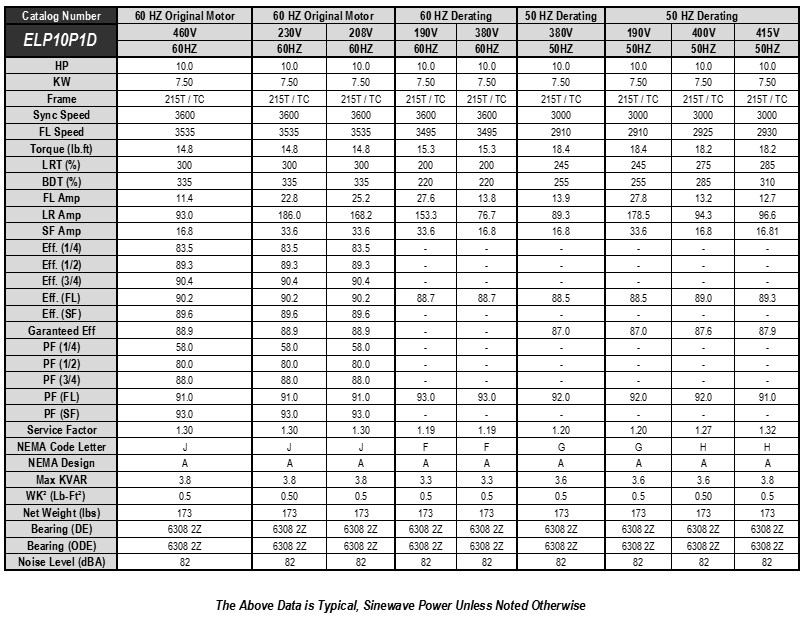

KEY FEATURES

• Catalog Number: ELP10P1D

• Output Power: 10 HP (7.50 kW)

• Voltage: 208–230 / 460 V

• Frequency: 60 Hz

• Phase: 3

• Speed: 3535 RPM

• Synchronous Speed: 3600 RPM

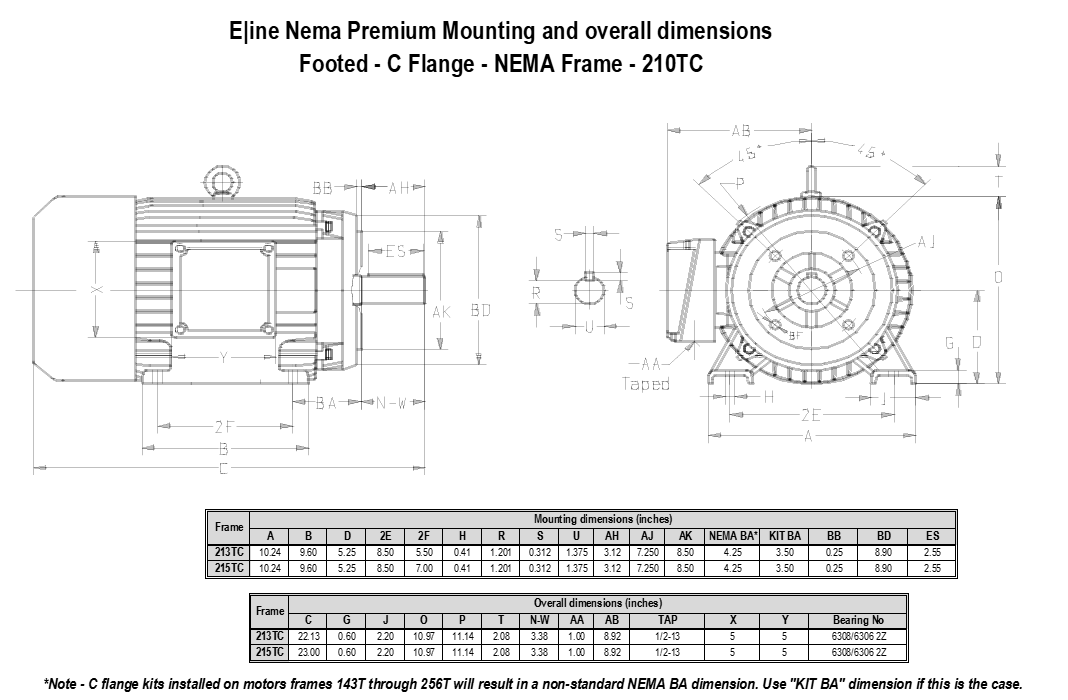

• Frame: 215T / TC

• Full Load Amps: 25.2 A @ 208 V / 22.8 A @ 230 V / 11.4 A @ 460 V

• Locked Rotor Amps: 168.2 A @ 208 V / 186.0 A @ 230 V / 93.0 A @ 460 V

• Service Factor: 1.30

• Torque: 14.8 lb·ft

• Efficiency (Full Load): 90.2%

• Guaranteed Efficiency: 88.9%

• Power Factor (Full Load): 91.0

• NEMA Design: A

• NEMA Code Letter: J

• Bearings: 6308ZZ (DE & ODE)

• Noise Level: 82 dBA
