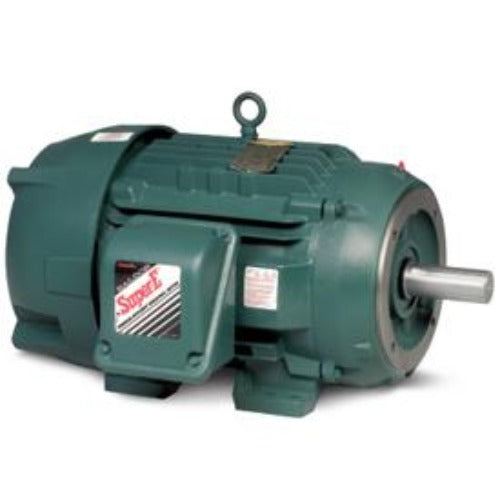

ECP3663T, Baldor, 3 HP, 3490 Rpm, 230/460V, 06H003W730G1, 184T, Severe Duty

BALDOR

$1,811.47

ECP3663T, SPEC 06H003W730G1, Severe duty rating,

CAT.NO.	ECP3663T
SPEC.	06H003W730G1
HP	5 TE
VOLTS	230/460
AMP	11.4/5.7
RPM	3490
FRAME	184T				HZ			60			PH		3
SER.F.	1.15	CODE					M	DES	A	CL		F
RATING	40C AMB-CONT
SN
DE	6206			ODE				6205
NEMA-NOM-EFF	90.2		PF			90
G.MIN.EFF	88.5	CC			010A
T. CODE	T3C	T=			160
	NP3257E

SPEC.	06H003W730G1
D.E. BRG.	30BC02XP30X
O.D.E. BRG.	25BC02XP30X
GREASE	POLYREX EM
RPM MAX	5400		MAX. KVAR			N/A

BLANK
INV.TYPE	PWM
T=	160
C HP FR	60	C HP TO		90
CT HZ FROM	6	CT HZ TO			60
VT HZ FROM	3	VT HZ TO			60

HTR-VOLTS		HTR-AMPS
HTR-WATTS		MAX. SPACE HEATER TEMP.
