Easy-Laser  |  SKU : EMN-018406

Easy-Laser, D92 BTA,12-1332, Pulley Alignment System, BELT Alignment tool,

$1,587.25
shipping

Estimation des frais de livraison

Description

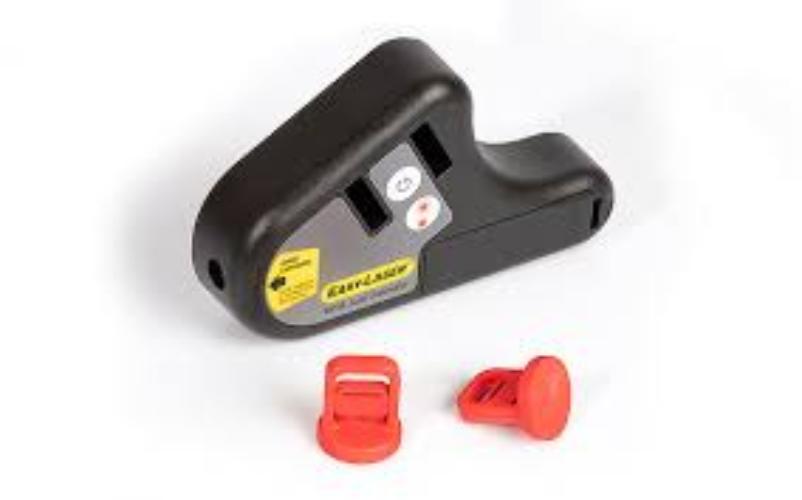

Easy-Laser D92 (12-1332) Pulley Alignment System,Belt Tool Alignment

https://youtu.be/5M6409jjuAo?feature=shared

Features of the Easy-Laser D92

  • Visually reads targets to ensure excellent accuracy.

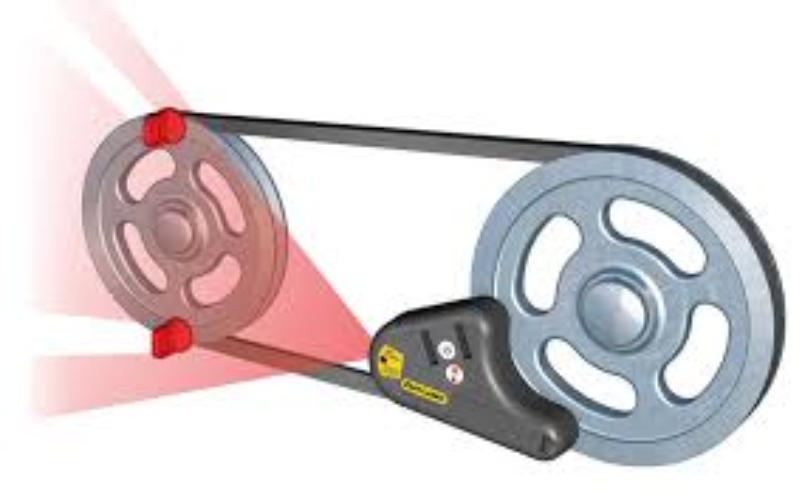

  • Displays parallel and angular misalignment between the sheaves.
  • Faster and more accurate than conventional methods.
  • Suitable for both horizontally and vertically mounted machines.
  • Can be operated by a single operator.
  • Also compatible with non-magnetic sheaves.
  • Fits almost any type of sheave: V-belts, flat belts, timing belts, chain drives.

Easy-Laser D90 Specifications

Specification Details
Accuracy Offset: < 0.008" (0.2 mm), Parallelity: < 0.05°.
Sheave Diameter ø60 mm (2.5") and larger.
Beam Angle 60°.
Measuring Distance 10 m (33').
Laser Wavelength 635-670 nm.
Output Power < 1 mW.
Power Supply 1 x R6 (AA) 1.5V battery.
Battery Life 24 hours of continuous operation.
Dimensions/Weight 145 x 86 x 30 mm (5.8 x 3.4 x 1.1"), 0.27 kg (8.6 oz).

What’s Included

  • Easy-Laser D92 (Part Number 12-1332) - Pulley Alignment System.
