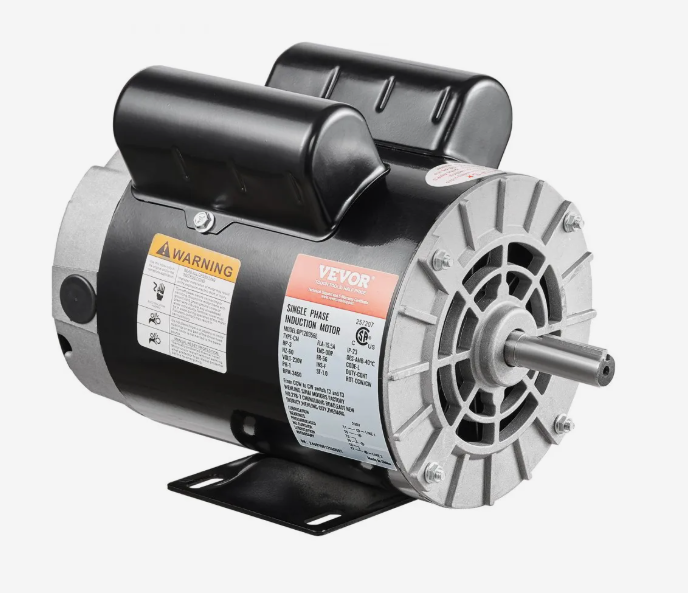

DP120356L, 3 Hp, 3450 RPM, 230 V, 1 Ph, 60 Hz, ODP, Frame 56

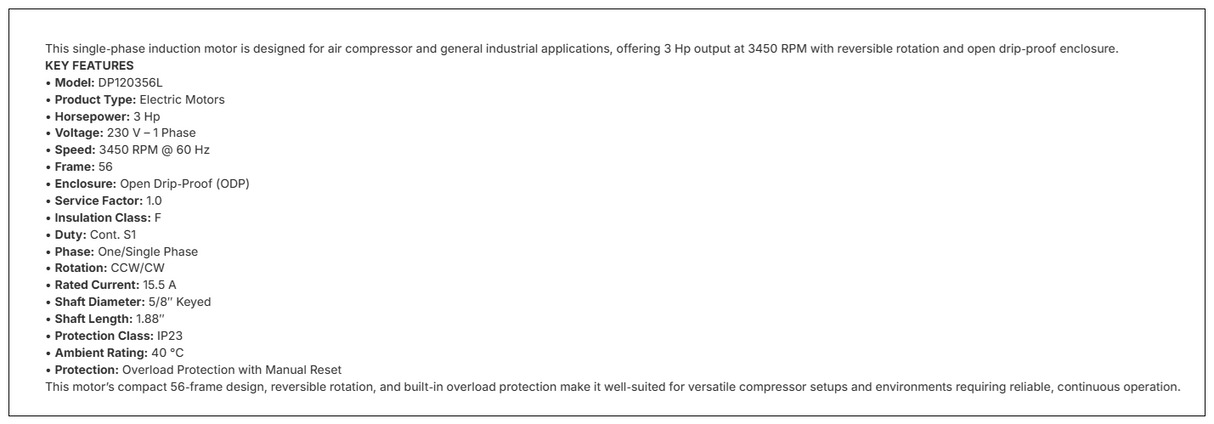

This single‑phase induction motor is designed for air compressor and general industrial applications, offering 3 Hp output at 3450 RPM with reversible rotation and open drip‑proof enclosure.

KEY FEATURES

• Model: DP120356L

• Product Type: Electric Motors

• Horsepower: 3 Hp

• Voltage: 230 V – 1 Phase

• Speed: 3450 RPM @ 60 Hz

• Frame: 56

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1.0

• Insulation Class: F

• Duty: Cont. S1

• Phase: One/Single Phase

• Rotation: CCW/CW

• Rated Current: 15.5 A

• Shaft Diameter: 5/8″ Keyed

• Shaft Length: 1.88″

• Protection Class: IP23

• Ambient Rating: 40 °C

• Protection: Overload Protection with Manual Reset

This motor’s compact 56‑frame design, reversible rotation, and built‑in overload protection make it well‑suited for versatile compressor setups and environments requiring reliable, continuous operation.
