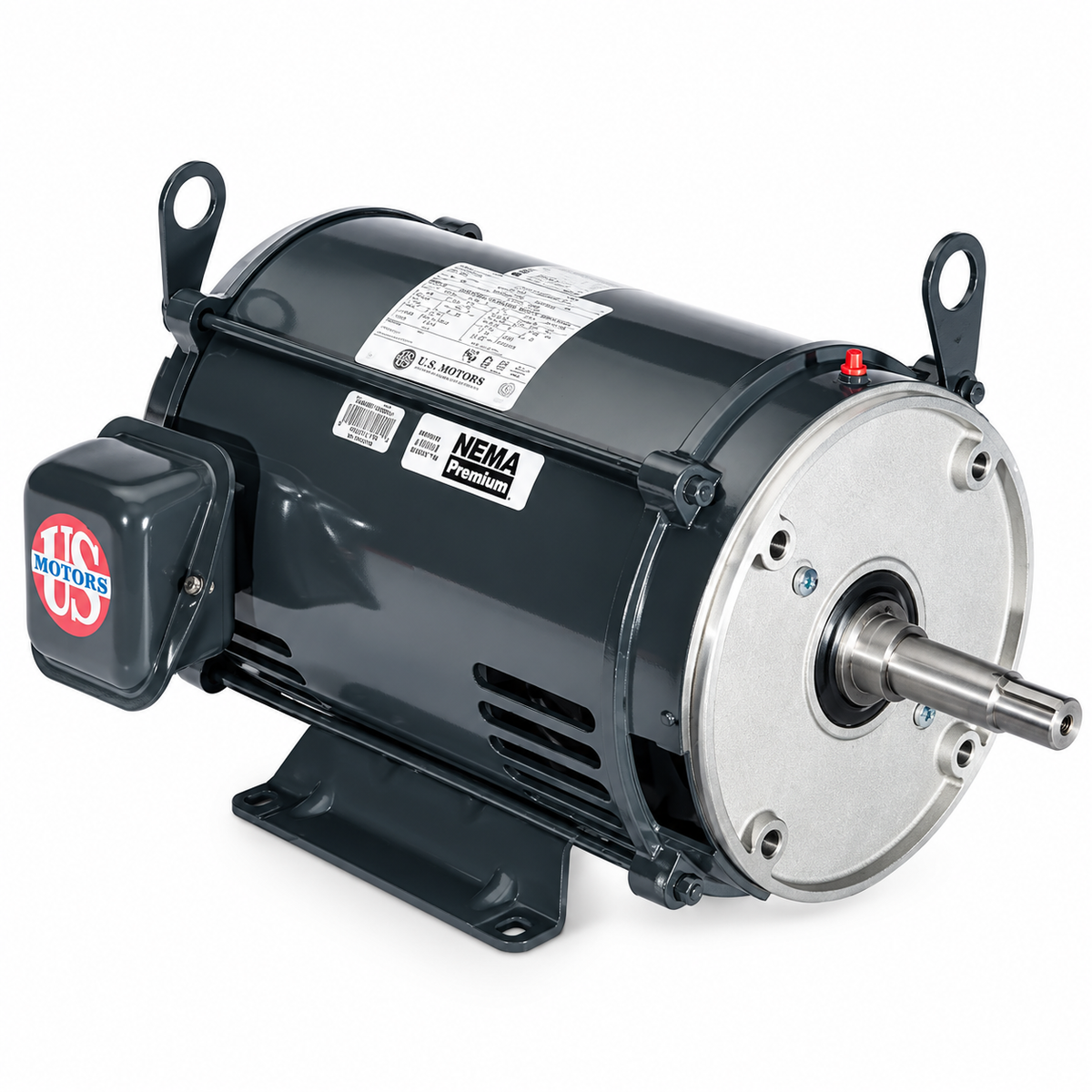

DJ7P1DM, 7.5Hp, 3495 RPM @ 60 Hz / 2845 RPM @ 50 Hz, 208‑230/460 V @ 60 Hz / 190‑380 V @ 50 Hz, 3‑Phase, ODP, Frame 184JM, FN41

This close‑coupled pump motor is a three‑phase AC motor designed for direct mounting to centrifugal pumps, offering premium efficiency and robust construction in a foot‑mounted 184JM frame.

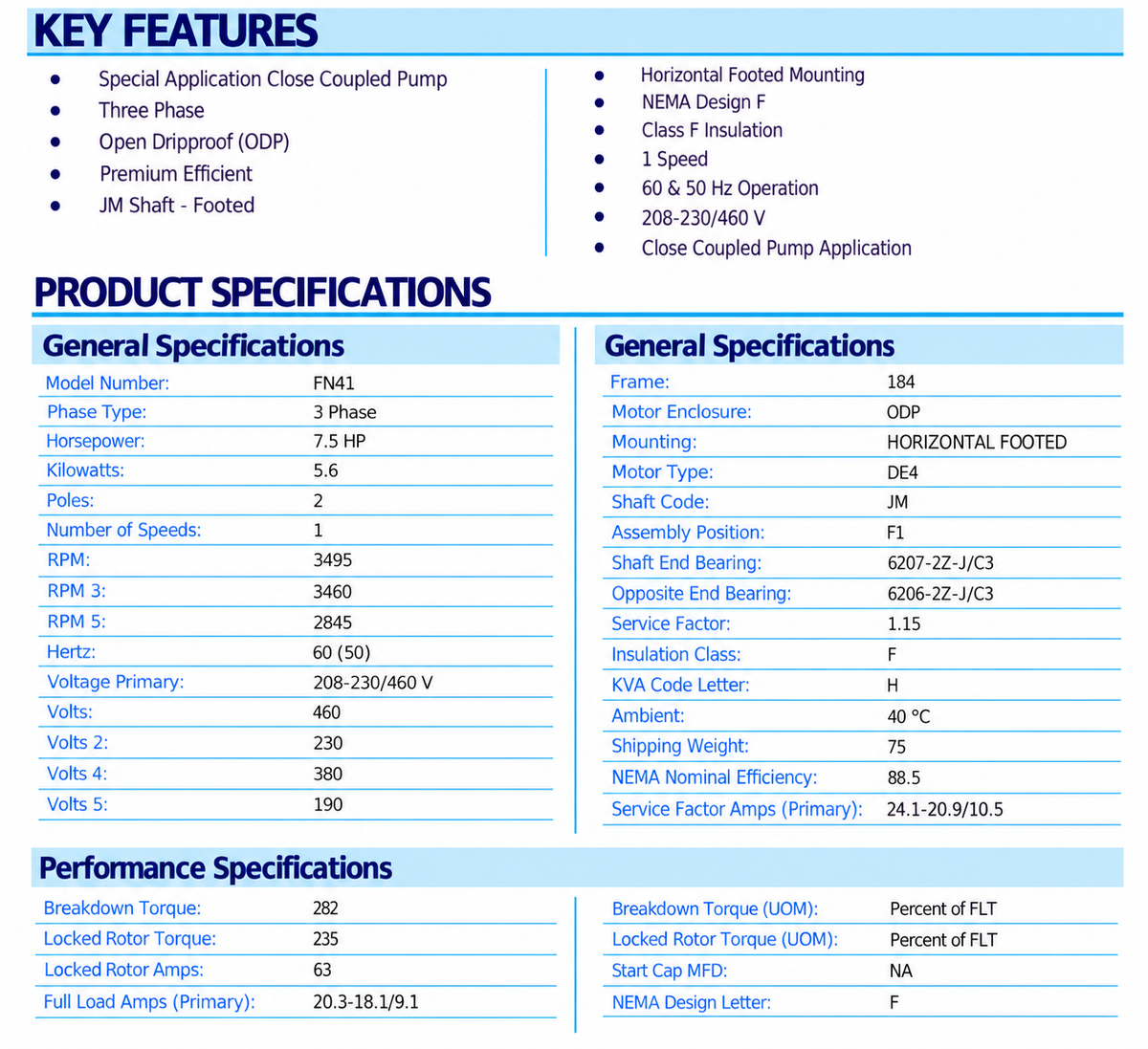

KEY FEATURES

• Model: DJ7P1DM

• Product Type: Close Coupled Pump

• Horsepower: 7.5 Hp (5.6 kW)

• Voltage: 208‑230/460 V @ 60 Hz / 190‑380 V @ 50 Hz – 3 Phase

• Speed: 3495 RPM @ 60 Hz / 2845 RPM @ 50 Hz

• Frame: 184JM

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.15

• Efficiency: 88.5 %

• Number of Speeds: 1

• Insulation Class: F

• Design Code: DE4 – KVA Code H

• Mounting: Horizontal‑Footed, Assembly Position F1

• Shaft: JM Shaft

• Bearings: 6206‑2Z‑J/C3 (Opposite End), 6207‑2Z‑J/C3 (Shaft End)

• Ambient Rating: 40 °C
