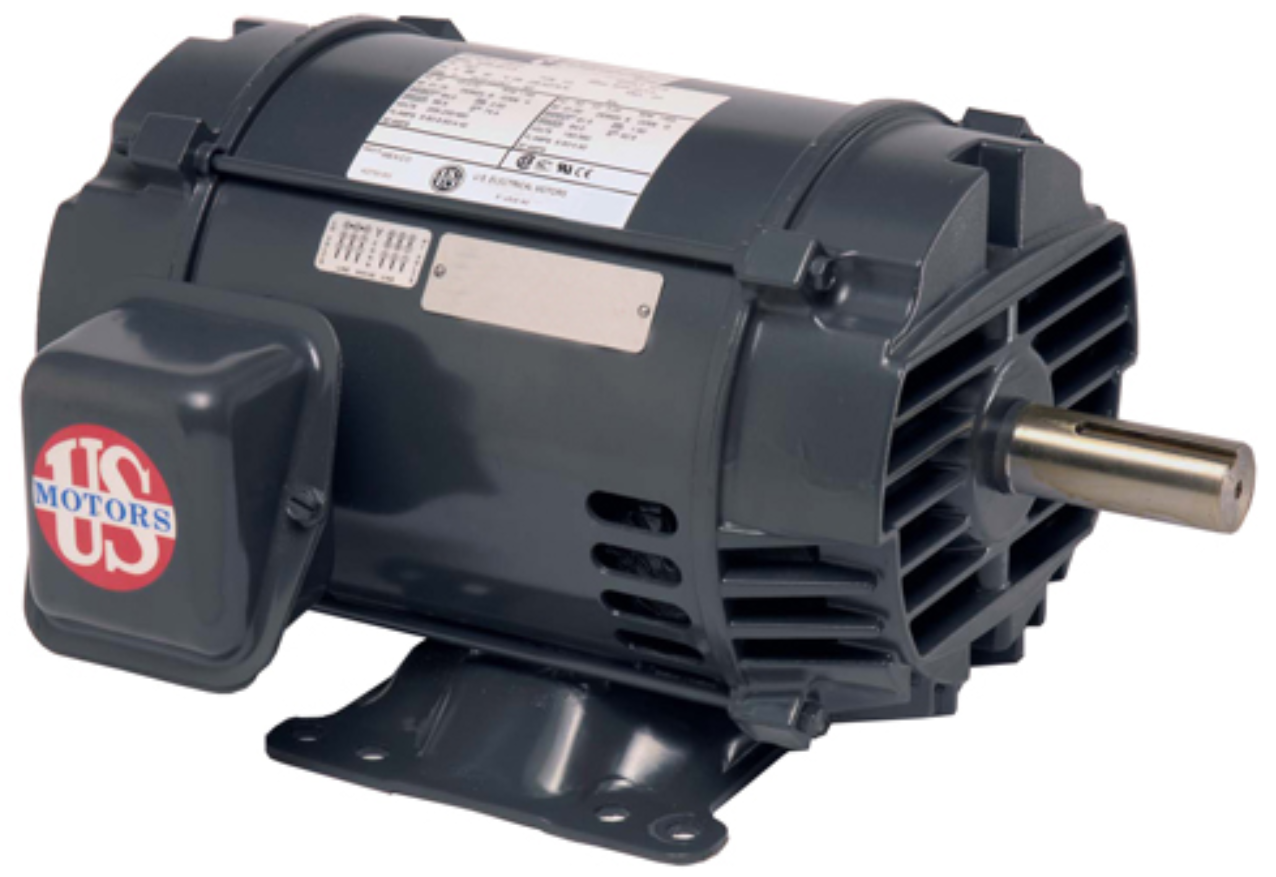

D7P2G, 7.5Hp, 1765 RPM, 575V, 3PH, 60HZ, ODP, 213T, NEMA Premium, IE3 ROLLED STEEL RIGID BASE, 1.5SF

D7P2G, 7.5Hp, 1765 RPM, 575V, 3PH, 60HZ, ODP, 213T, NEMA Premium, IE3 ROLLED STEEL RIGID BASE, 1.5SF

Replace : MPOP-27, E925M2, EMO659

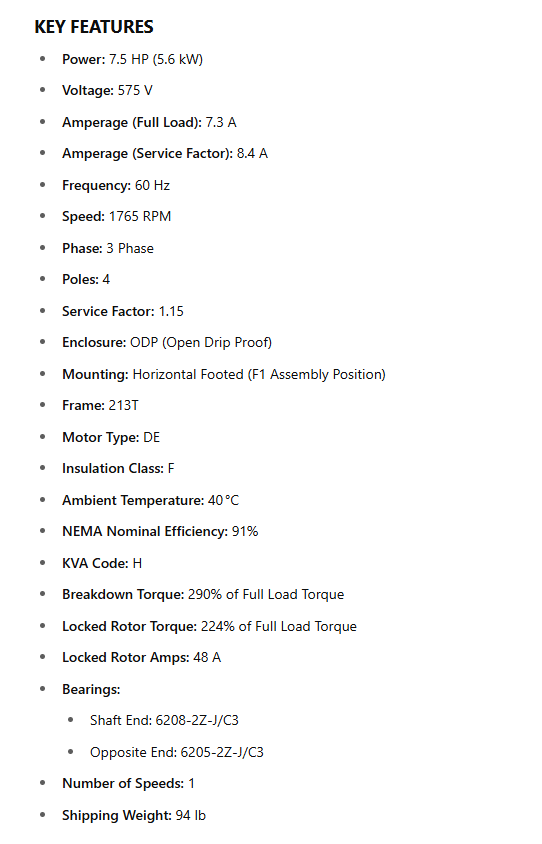

KEY FEATURES

• Power: 7.5 HP (5.6 kW)

• Voltage: 575 V

• Amperage (Full Load): 7.3 A

• Amperage (Service Factor): 8.4 A

• Frequency: 60 Hz

• Speed: 1765 RPM

• Phase: 3 Phase

• Poles: 4

• Service Factor: 1.15

• Enclosure: ODP (Open Drip Proof)

• Mounting: Horizontal Footed (F1 Assembly Position)

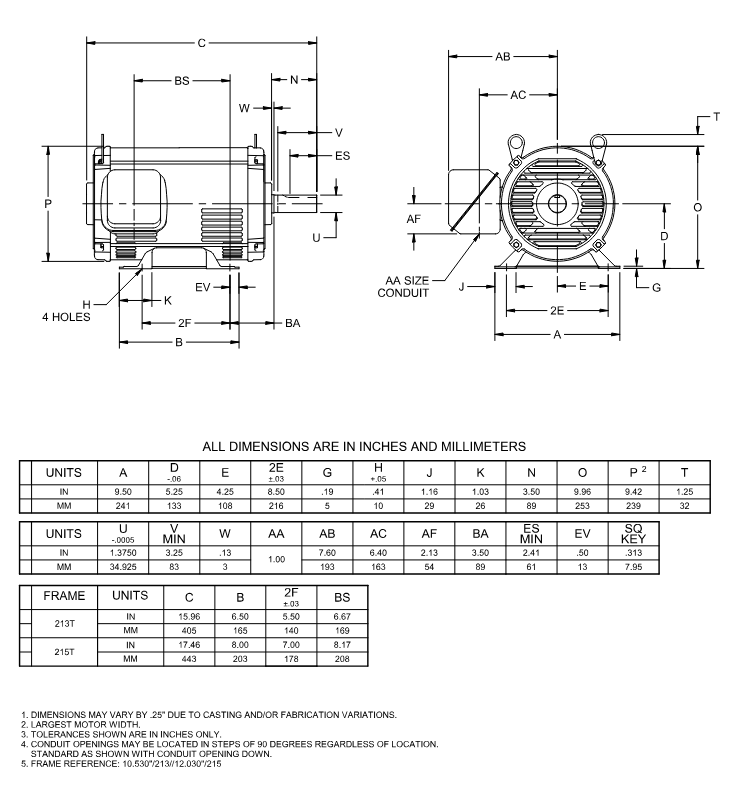

• Frame: 213T

• Motor Type: DE

• Insulation Class: F

• Ambient Temperature: 40 °C

• NEMA Nominal Efficiency: 91%

• KVA Code: H

• Breakdown Torque: 290% of Full Load Torque

• Locked Rotor Torque: 224% of Full Load Torque

• Locked Rotor Amps: 48 A

• Bearings:

  • Shaft End: 6208-2Z-J/C3

  • Opposite End: 6205-2Z-J/C3

• Number of Speeds: 1

• Shipping Weight: 94 lb
