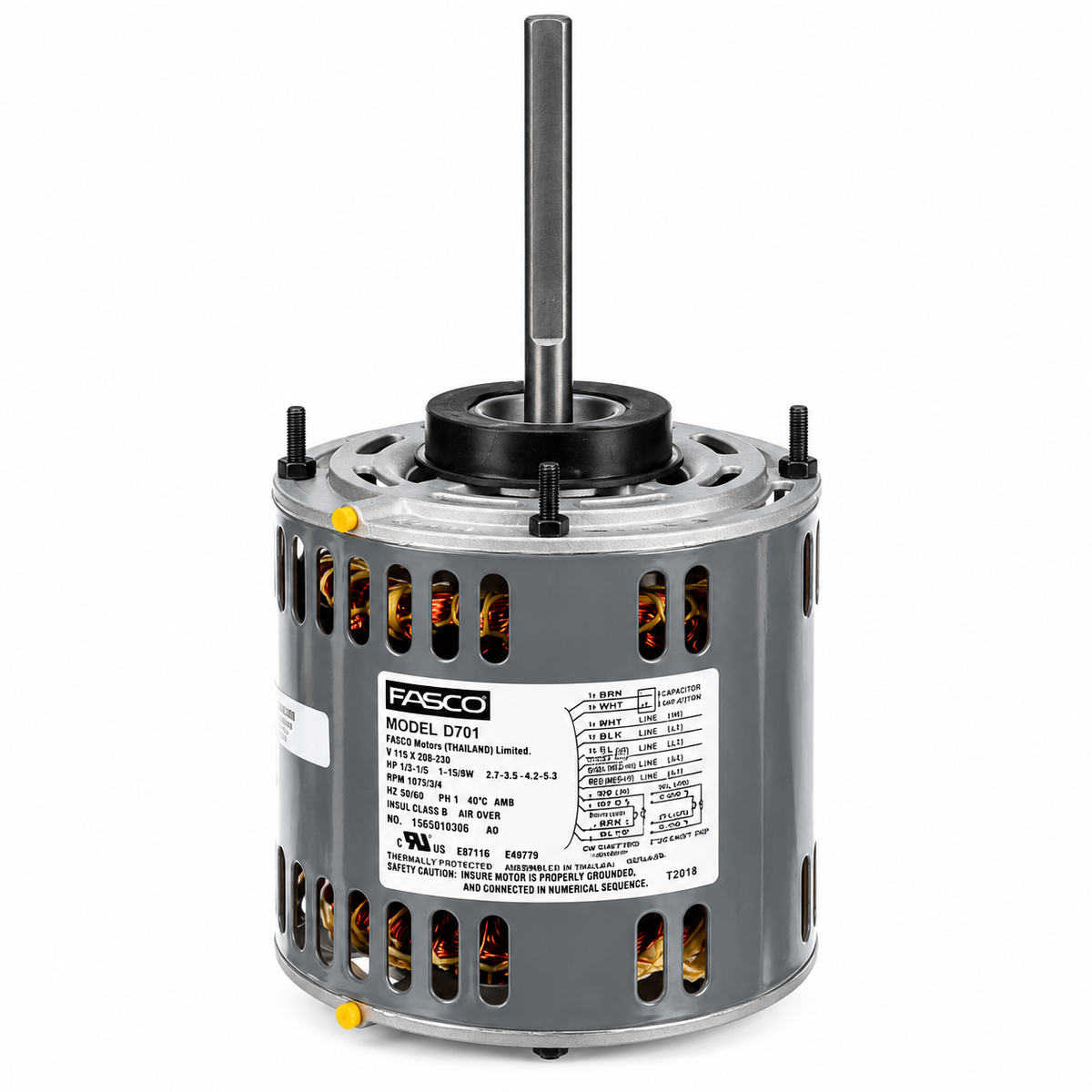

D701, 1/2Hp, 1075 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over (OAO), Frame 48

This single-phase PSC fan and blower motor offers multi-horsepower capability in a compact 48-frame design, delivering four selectable speeds and reversible rotation for versatile HVAC or air-handler applications.

KEY FEATURES

• Model: D701

• Product Type: Fan and Blower Motor

• Horsepower: 1/2 Hp / 1/3 Hp / 1/4 Hp / 1/5 Hp (0.37 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1075 RPM

• Frame: 48

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Current: 7.7 A / 5.5 A / 4.2 A / 3.3 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Phase: 1

• Number of Speeds: 4

• Rotation: Reversible

• Electrical Type: Permanent Split Capacitor (PSC)

• Mounting: Extended Studs

• Bearings: Sleeve (both drive end and opposite drive end)

• Frame Material: Rolled Steel

• Shaft Type: Double Flat, 0.500 in diameter, 5.43 in extension

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA (Y), CE (N)
