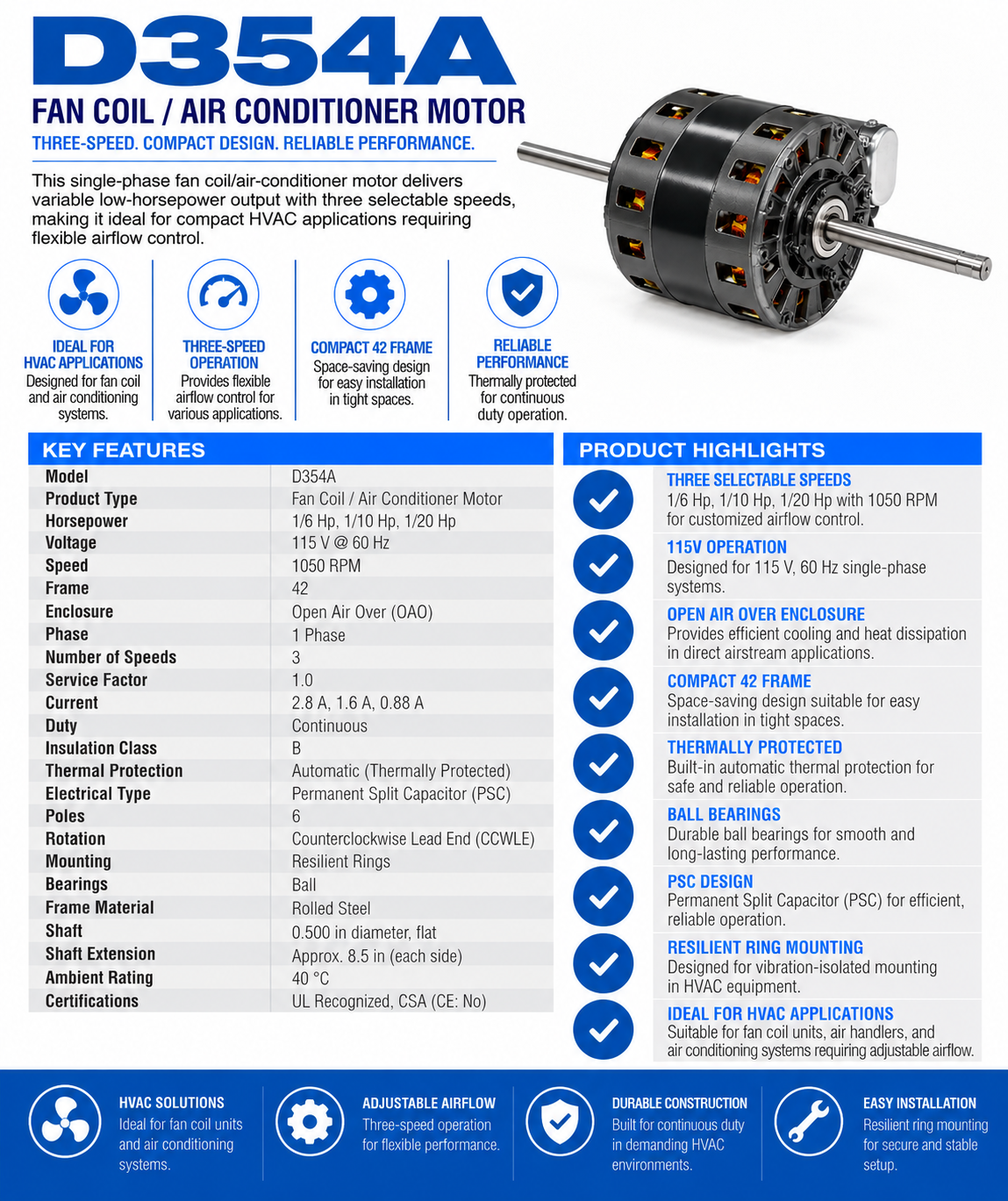

D354A, 1/6‑1/10‑1/20Hp, 1050 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over (OAO), Frame 42, PSC

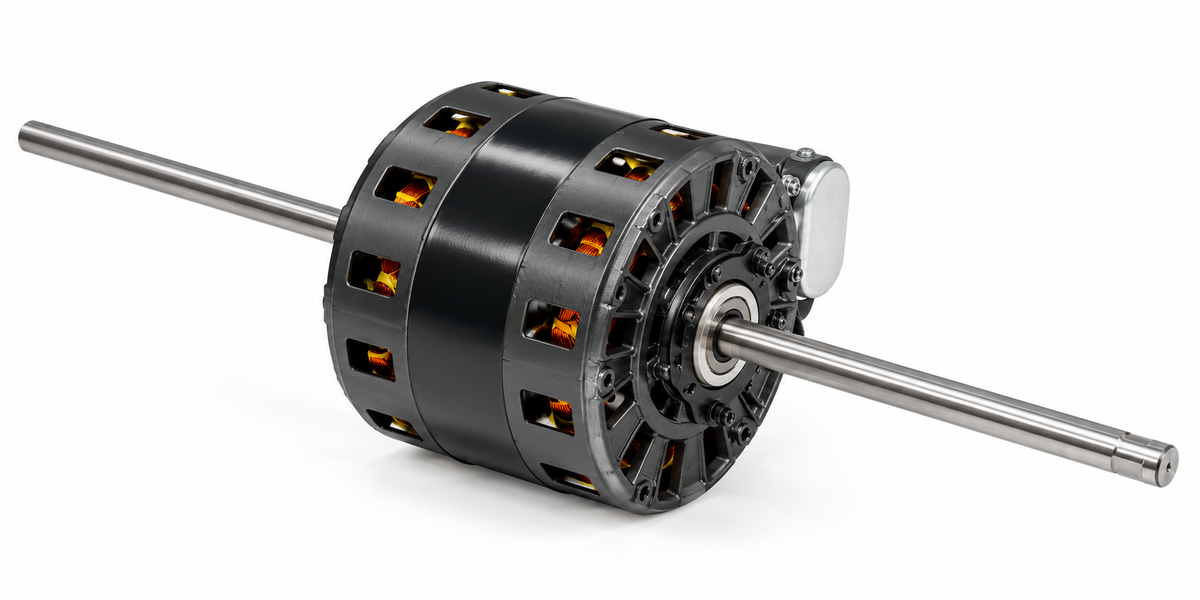

This single‑phase fan coil/air‑conditioner motor delivers variable low‑horsepower output with three selectable speeds, making it ideal for compact HVAC applications requiring flexible airflow control.

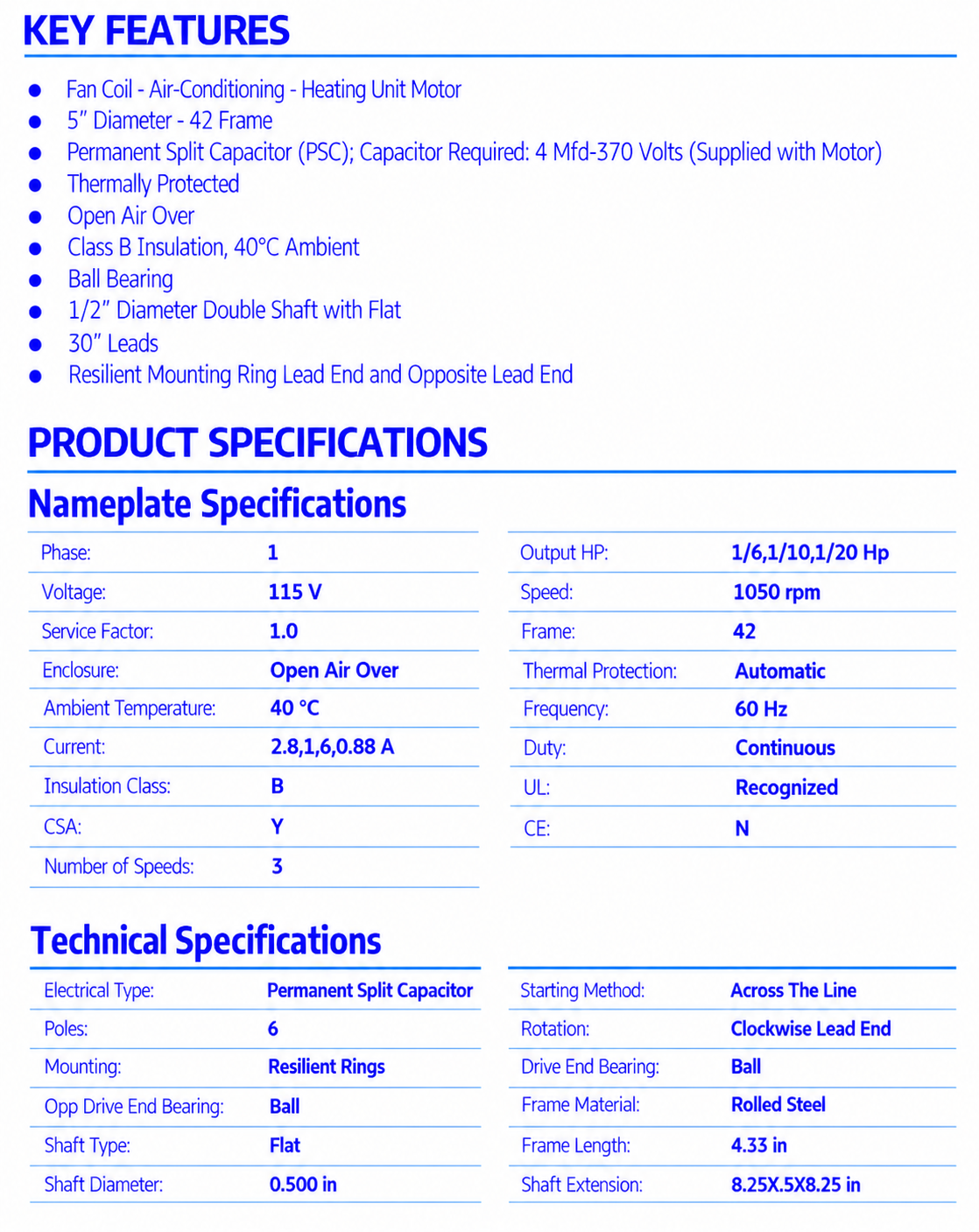

KEY FEATURES

• Model: D354A

• Product Type: Fan coil/air‑conditioner motor

• Horsepower: 1/6 Hp, 1/10 Hp, 1/20 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1050 RPM

• Frame: 42

• Enclosure: Open Air Over (OAO)

• Service Factor: 1.0

• Current: 2.8 A, 1.6 A, 0.88 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic (thermally protected)

• Electrical Type: Permanent Split Capacitor (PSC)

• Poles: 6

• Rotation: Clockwise Lead End (CCWLE)

• Mounting: Resilient Rings

• Bearings: Ball

• Frame Material: Rolled Steel

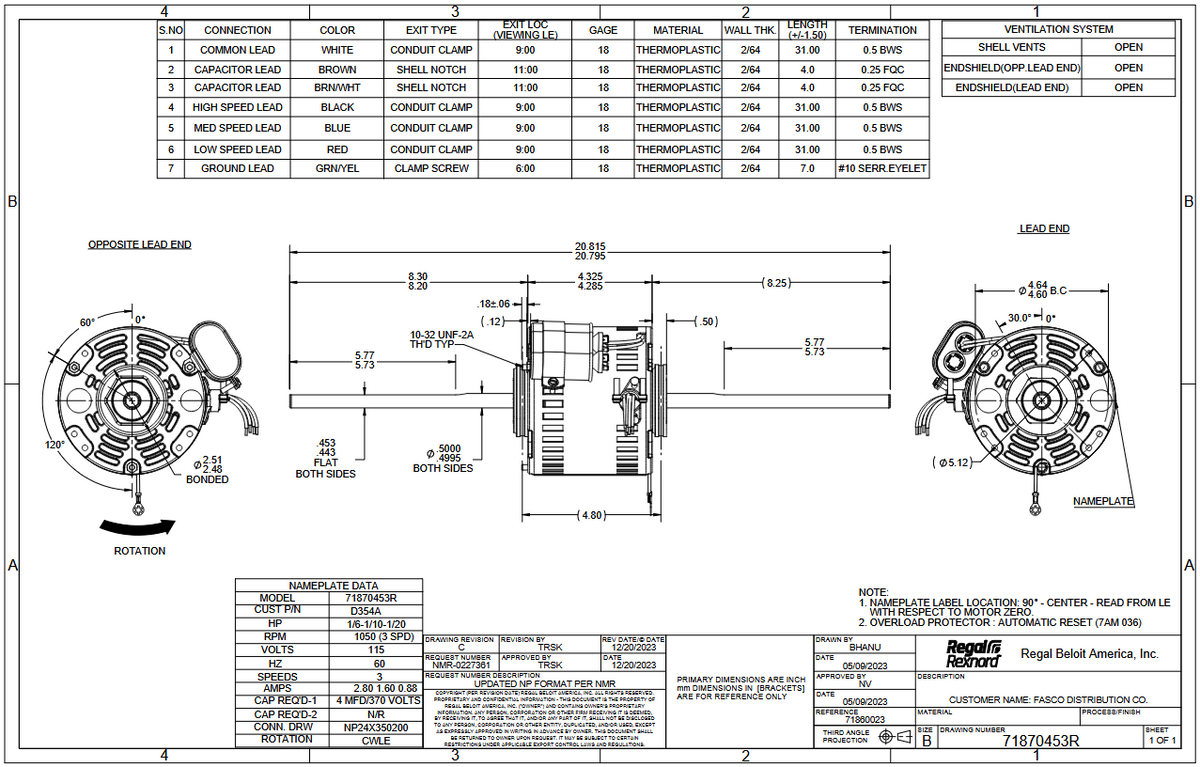

• Shaft: Flat, 0.500 in diameter, extension approx. 8.5 in

• Number of Speeds: 3

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA (CE: N)

The motor’s multi‑speed capability and compact open‑air‑over design make it well‑suited for HVAC systems requiring adjustable airflow in limited spaces.
