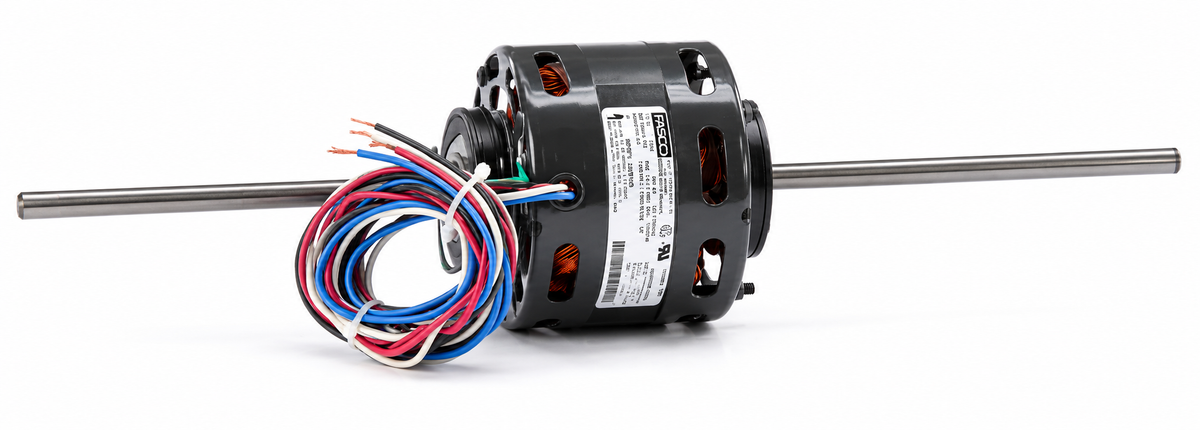

D336, 1/10‑1/15‑1/25Hp, 1550 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over, Frame 4.4"

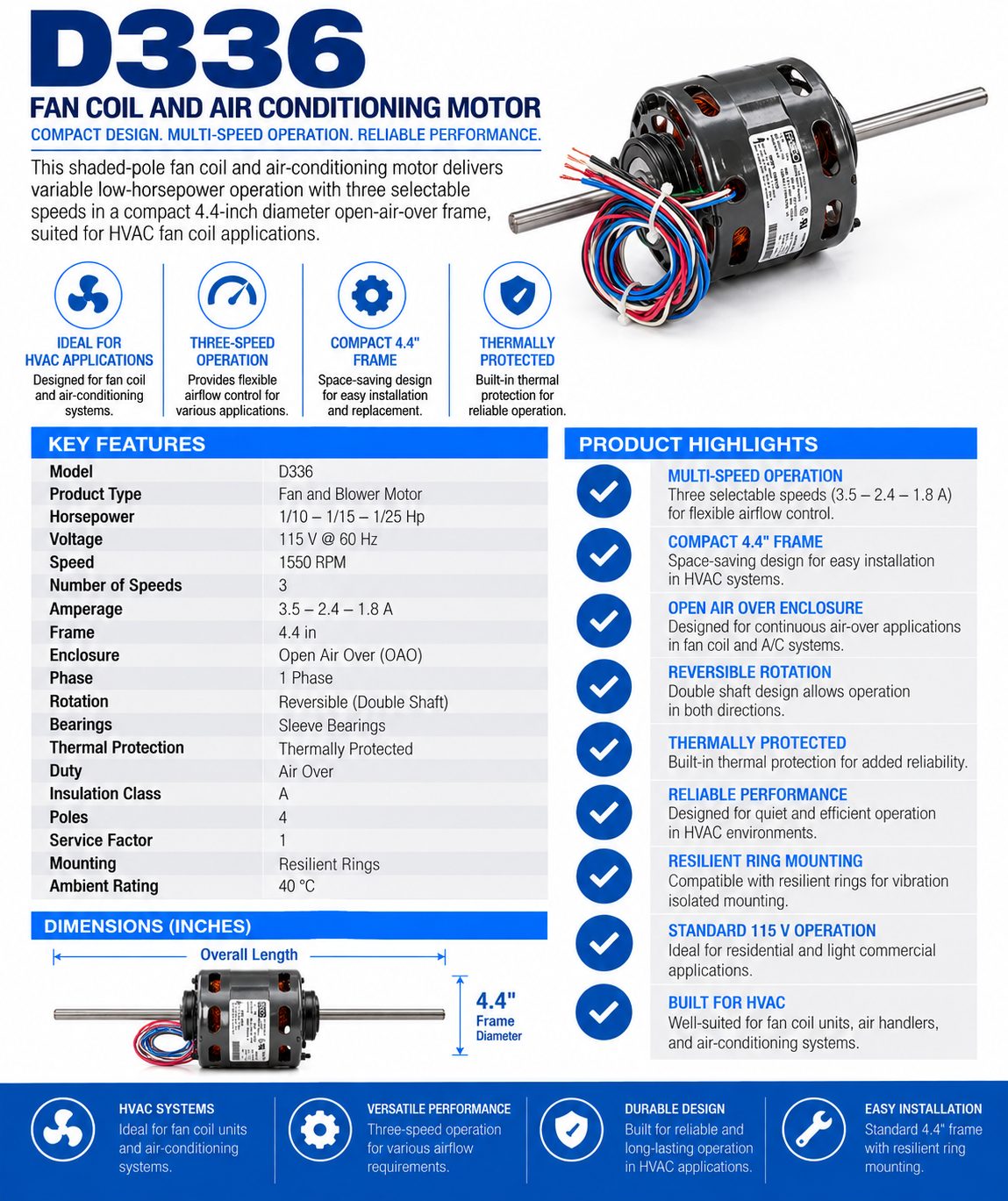

This shaded‑pole fan coil and air‑conditioning motor delivers variable low‑horsepower operation with three selectable speeds in a compact 4.4‑inch diameter open‑air‑over frame, suited for HVAC fan coil applications.

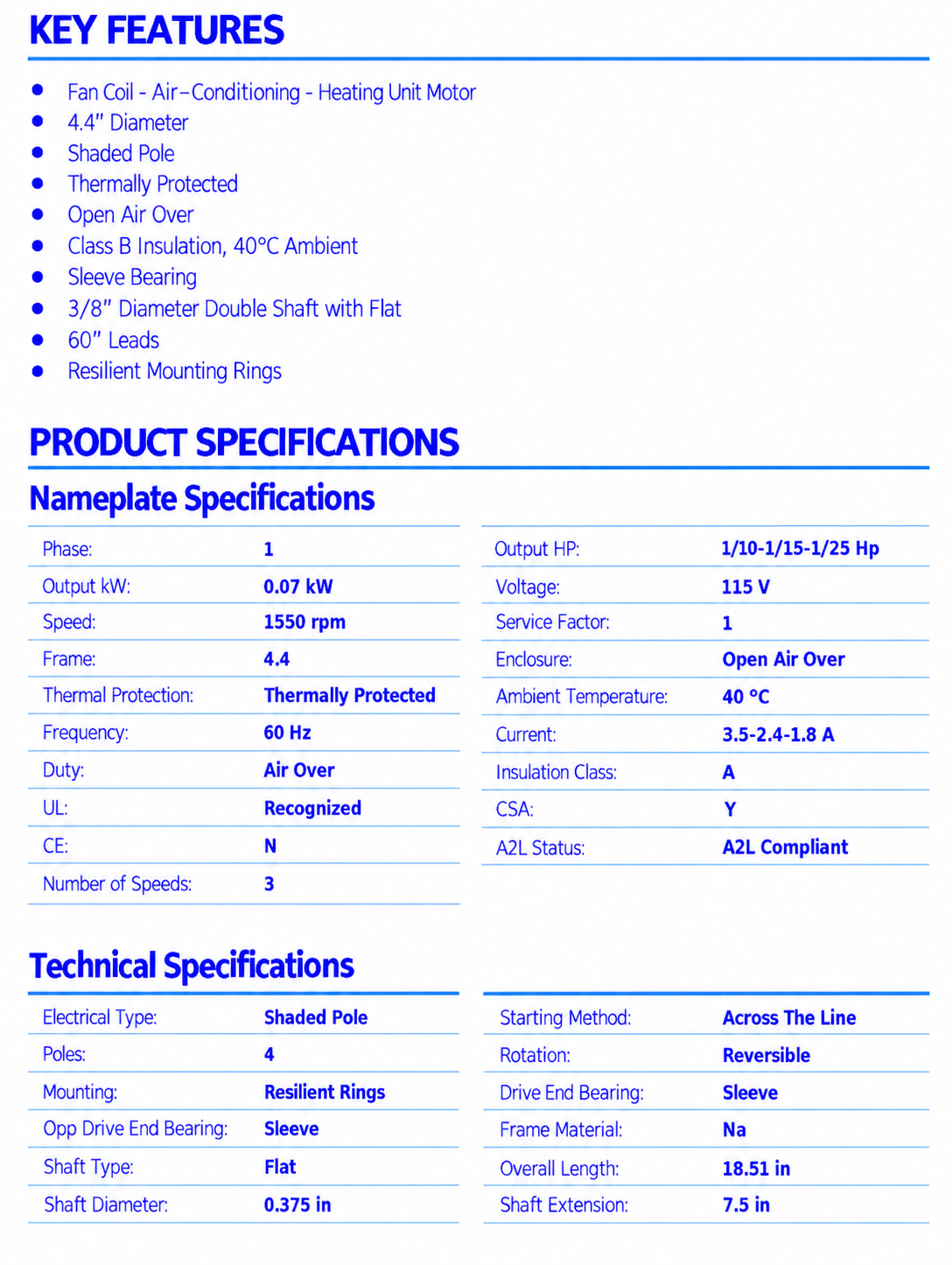

KEY FEATURES

• Model: D336

• Product Type: Fan and Blower Motor

• Horsepower: 1/10‑1/15‑1/25 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1550 RPM

• Frame: 4.4"

• Enclosure: Open Air Over (OAO)

• Phase: 1 Phase

• Number of Speeds: 3

• Amperage: 3.5‑2.4‑1.8 A

• Rotation: Reversible (Double Shaft)

• Bearings: Sleeve Bearings

• Thermal Protection: Thermally Protected

• Duty: Air Over

• Insulation Class: A

• Mounting: Resilient Rings

• Poles: 4

• Service Factor: 1

• Ambient Rating: 40 °C

The motor’s multi‑speed capability and compact open‑air‑over design make it adaptable for varied airflow requirements in HVAC fan coil systems.
