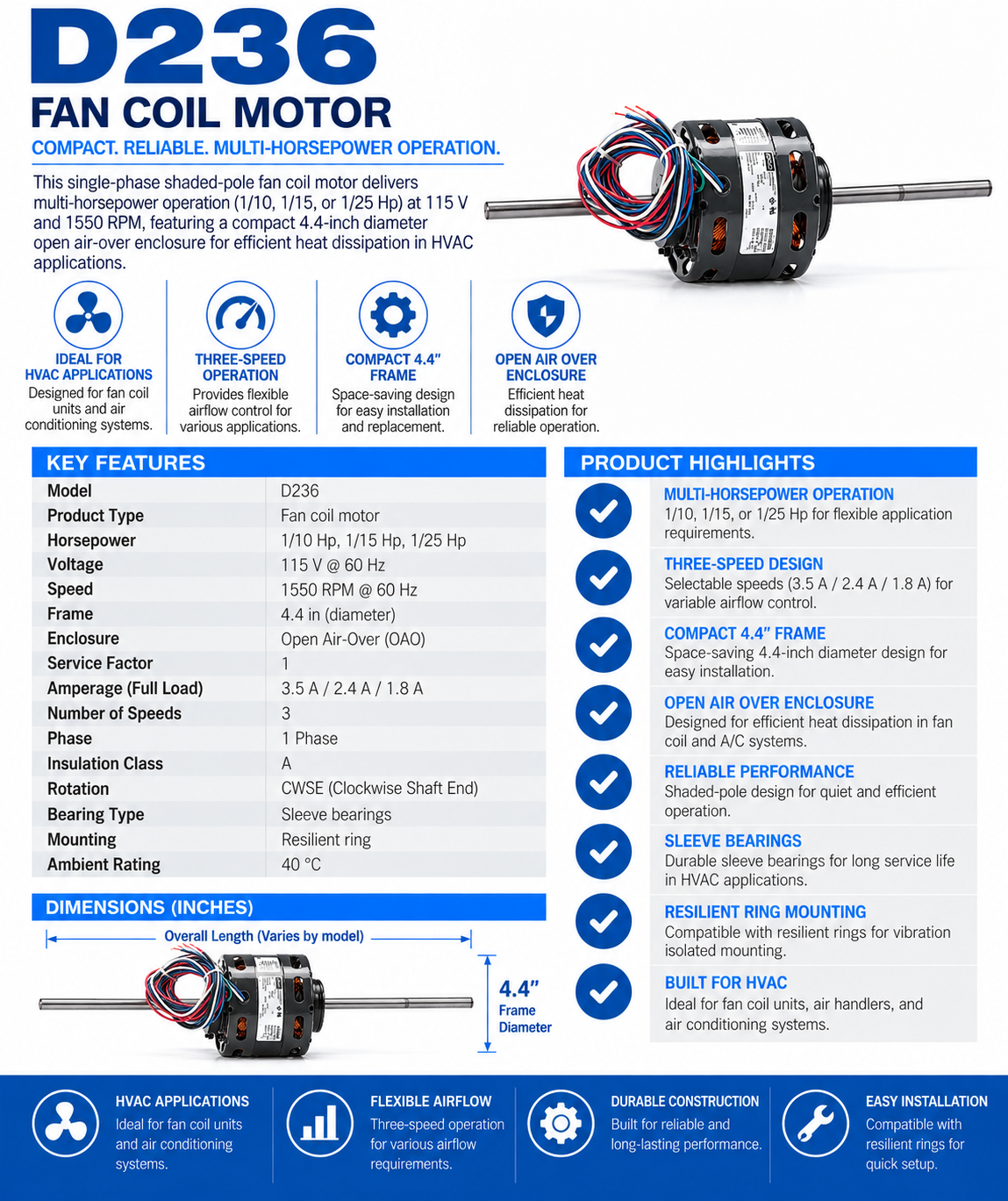

D236, 1/10‑1/15‑1/25Hp, 1550 RPM, 115 V, 1 Ph, 60 Hz, Open Air‑Over (OAO), Frame 4.4

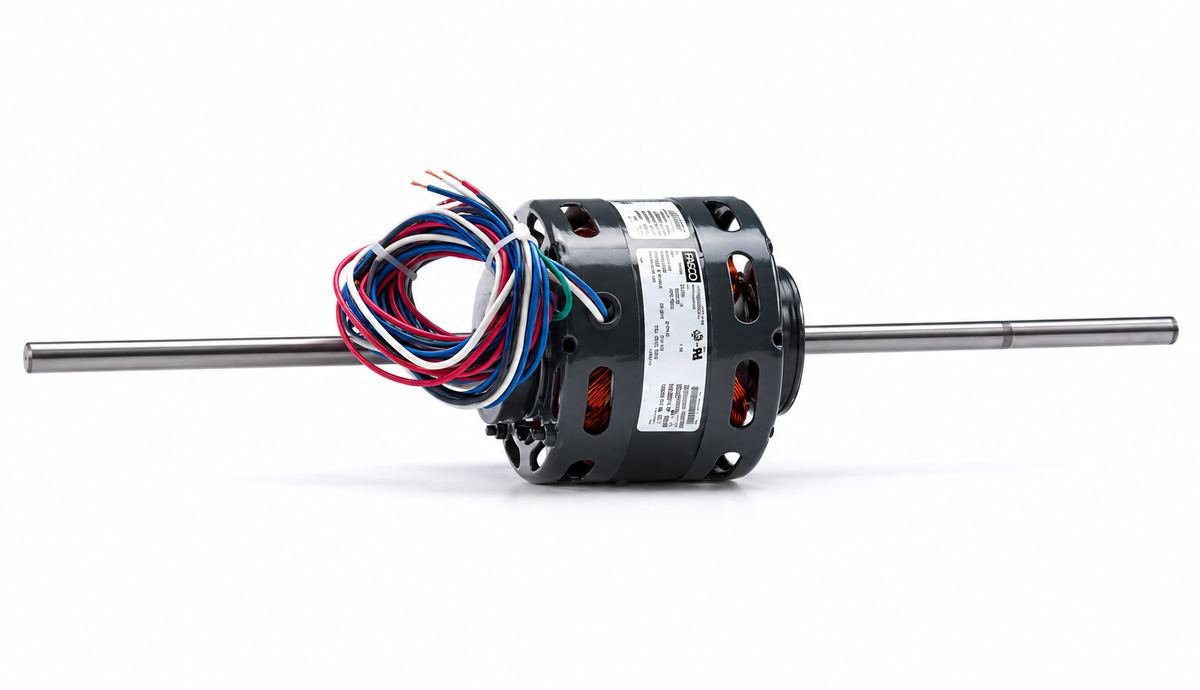

This single‑phase shaded‑pole fan coil motor delivers multi‑horsepower operation (1/10, 1/15, or 1/25 Hp) at 115 V and 1550 RPM, featuring a compact 4.4‑inch diameter and open air‑over enclosure for efficient heat dissipation in HVAC applications.

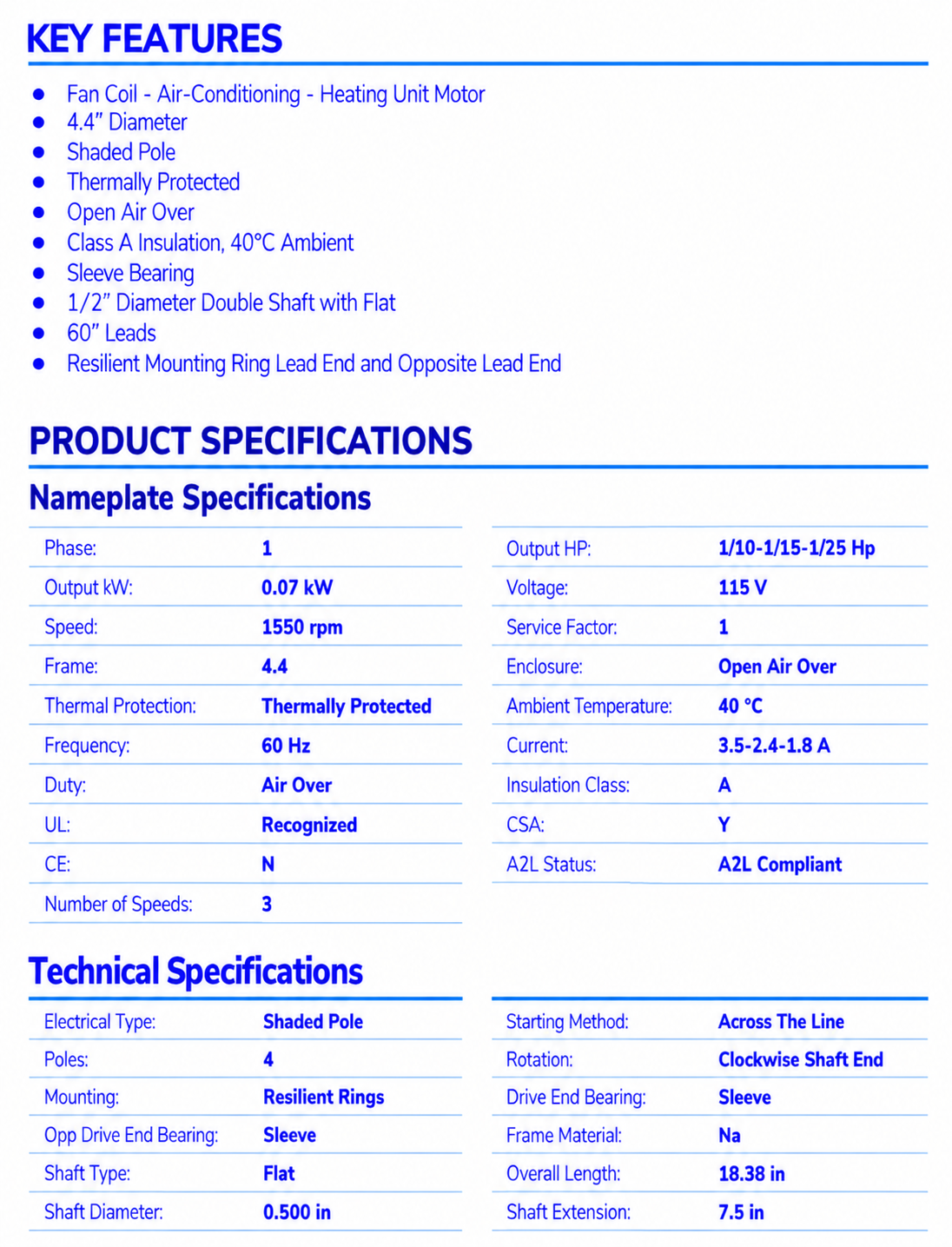

KEY FEATURES

• Model: D236

• Product Type: Fan coil motor

• Horsepower: 1/10 Hp, 1/15 Hp, 1/25 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1550 RPM @ 60 Hz

• Frame: 4.4‑inch diameter

• Enclosure: Open Air‑Over (OAO)

• Service Factor: 1

• Amperage (Full Load): 3.5 A / 2.4 A / 1.8 A

• Number of Speeds: 3

• Phase: 1 Phase

• Insulation Class: A

• Rotation: CWSE (Clockwise Shaft End)

• Bearing Type: Sleeve bearings

• Mounting: Resilient ring

• Ambient Rating: 40 °C
