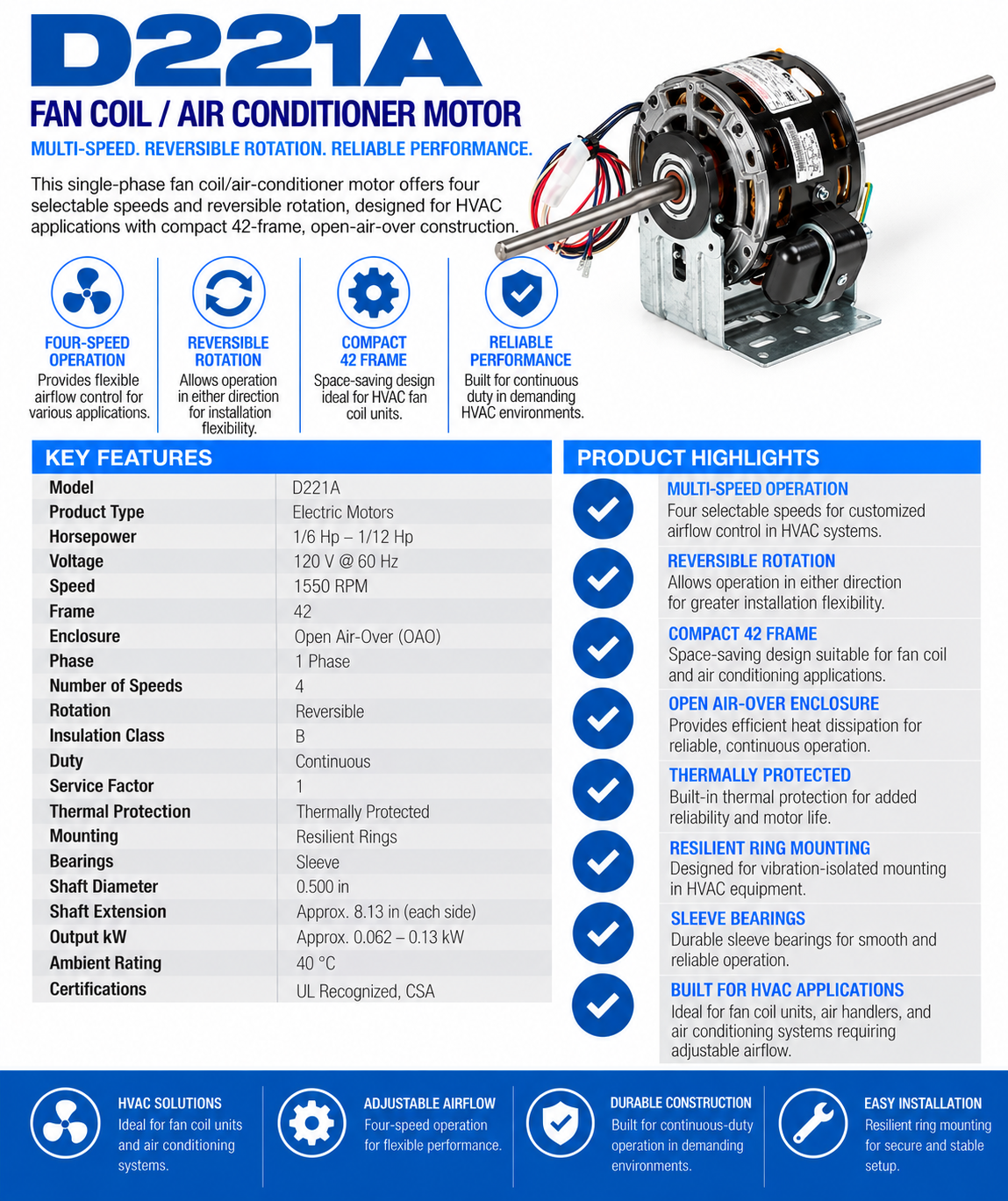

D221A, 1/6–1/12Hp, 1550 RPM, 120 V, 1 Ph, 60 Hz, OAO, Frame 42

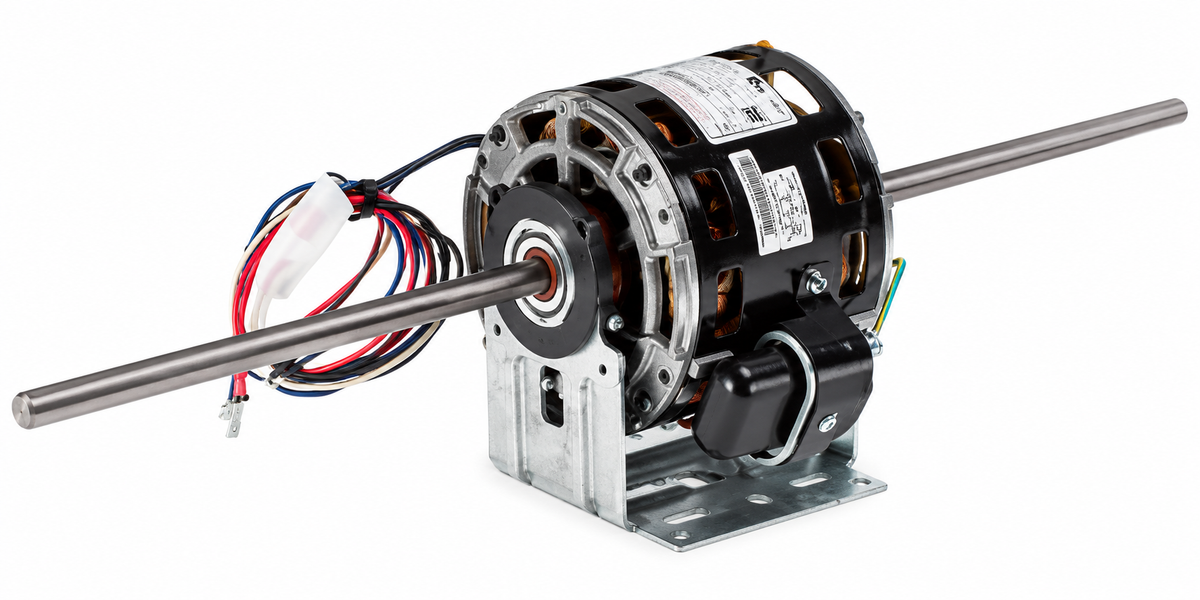

This single‑phase fan coil/air‑conditioner motor offers four selectable speeds and reversible rotation, designed for HVAC applications with compact 42‑frame, open‑air‑over construction.

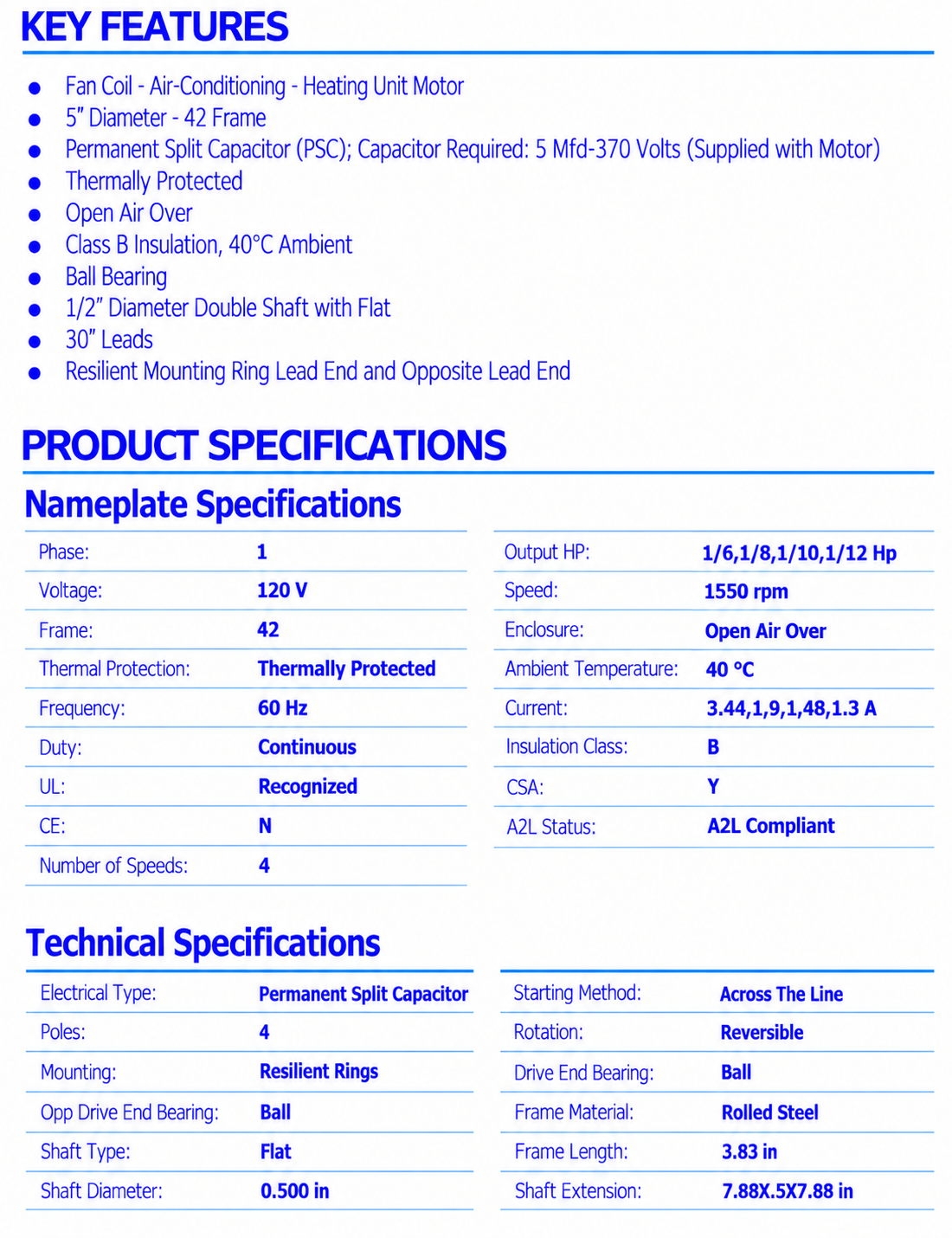

KEY FEATURES

• Model: D221A

• Product Type: Electric Motors

• Horsepower: 1/6 Hp – 1/12 Hp

• Voltage: 120 V @ 60 Hz

• Speed: 1550 RPM

• Frame: 42

• Enclosure: Open Air‑Over (OAO)

• Phase: 1 Phase

• Number of Speeds: 4

• Rotation: Reversible

• Insulation Class: B

• Duty: Continuous

• Mounting: Resilient Rings

• Bearings: Sleeve

• Service Factor: 1

• Thermal Protection: Thermally Protected

• Shaft Diameter: 0.500 in

• Shaft Extension: approx. 8.13 in

• Output kW: approx. 0.062–0.13 kW

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA

The motor’s compact size, multi‑speed capability, and reversible operation make it a versatile choice for fan coil and air‑conditioning units.
