D1076, 3/4Hp, 1075 RPM, 208‑230 V, 1 Ph, 60 Hz, Open Air‑Over (OAO), Frame 48

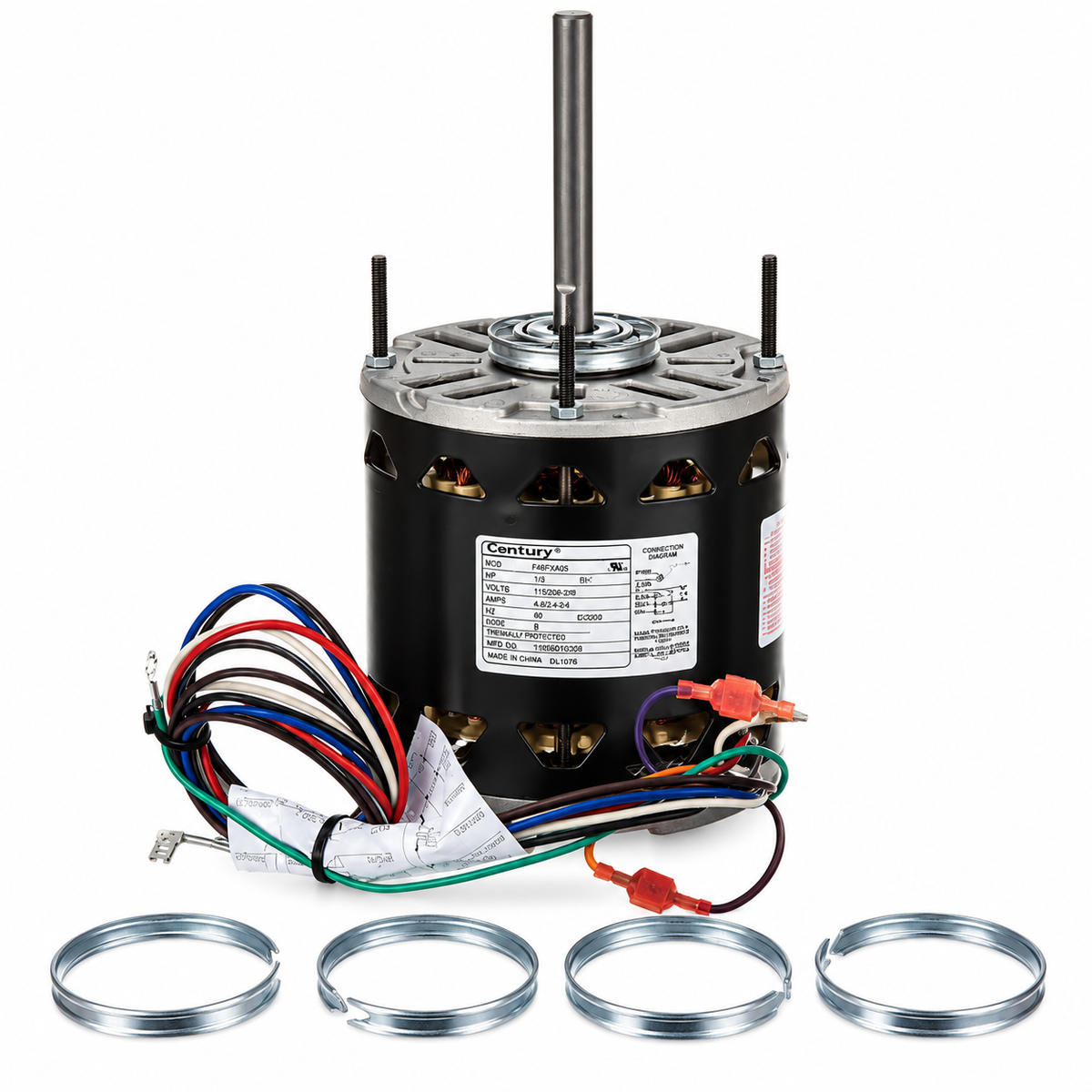

This single‑phase, open air‑over fan and blower motor delivers 0.75 Hp at 1075 RPM, operating on 208‑230 V and featuring three‑speed capability. Its compact 48‑frame design with resilient ring mounting makes it suitable for HVAC blower applications.

KEY FEATURES

• Model: D1076

• Product Type: Fan and Blower Motor

• Horsepower: 3/4 Hp (0.56 kW)

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Air‑Over (OAO)

• Phase: 1

• Number of Speeds: 3

• Mounting: Resilient Ring

• Insulation Class: B

• Service Factor: 1

• Bearings: Sleeve or Ball (depending on configuration)

• Rotation: Reversible

• Ambient Rating: 40 °C

• Duty: Continuous Air‑Over

• Thermal Protection: Automatic Overload

• Efficiency: Standard Efficiency (~64 %)

• Shaft: 0.5 in flat shaft

• Frame Material: Rolled Steel

• Certifications: UL Recognized, CSA

This motor’s three‑speed PSC design with reversible rotation and resilient mounting offers flexibility for blower applications while its open air‑over construction supports continuous operation in HVAC environments.
