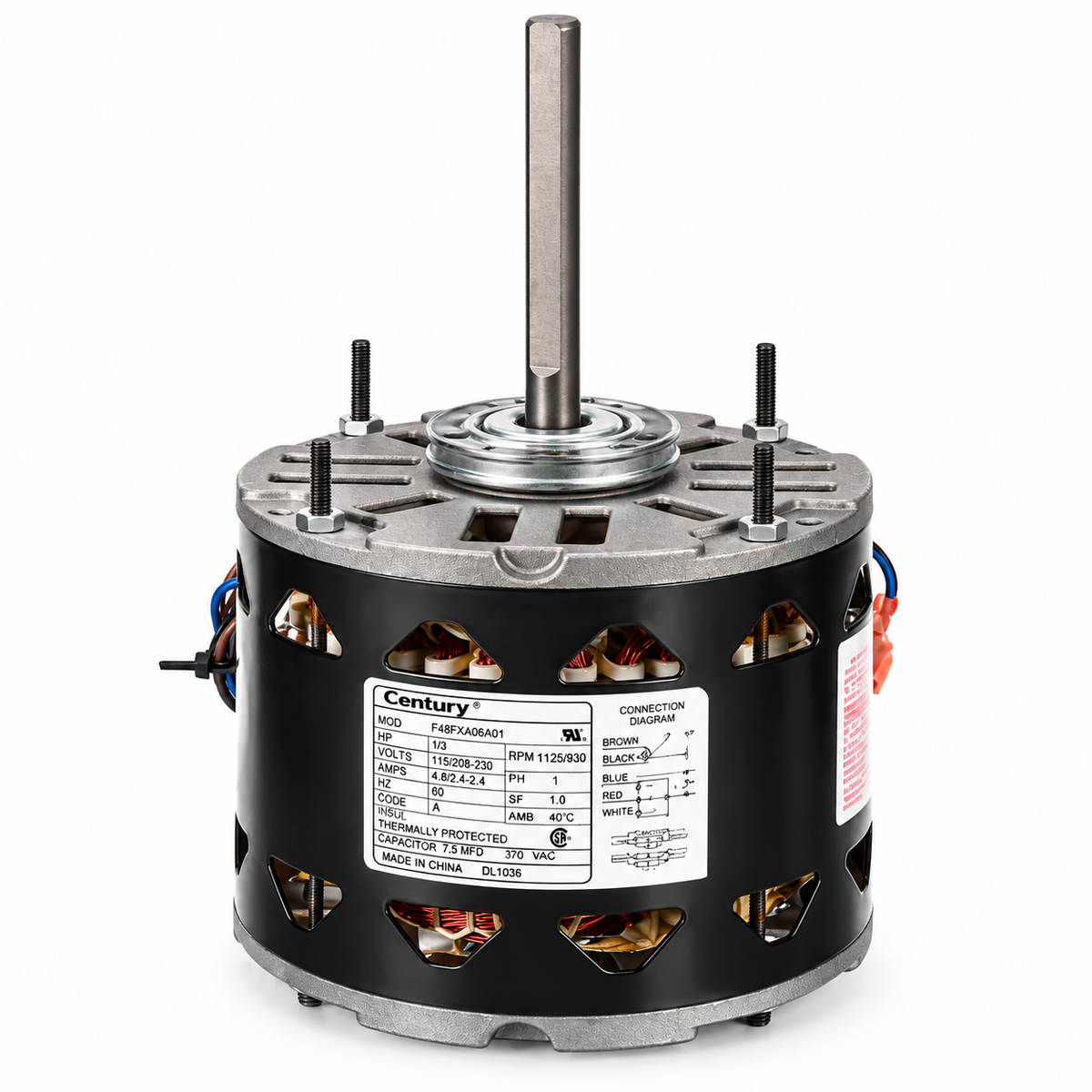

D1036, 1/3Hp, 1075 RPM, 208‑230 V, 1 Ph, 60 Hz, Open Enclosed, Frame 48

This single‑phase fan and blower motor delivers 0.33 Hp at 1075 RPM with three selectable speeds, designed for air‑over HVAC applications in a compact 48‑frame open‑enclosed housing.

KEY FEATURES

• Model: D1036

• Product Type: Fan and Blower Motor

• Horsepower: 1/3 Hp

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1075 RPM

• Frame: 48

• Enclosure: Open Enclosed (OAO)

• Service Factor: 1

• Efficiency: Standard (approx. 58.6 %)

• Insulation Class: B

• Duty: Air Over

• Number of Speeds: 3

• Rotation: Reversible

• Bearings: Sleeve (ball in some variants)

• Shaft: 0.500 in × 4.5 in, flat

• Mounting: Resilient Rings

• Thermal Protection: Automatic Reset

• Ambient Rating: 40 °C

• UL Certification: Recognized

• CSA Certification: Yes
